2.5.1 DRED Connection
DRED is used for Australia and New Zealand installation (also used as remote shutdown function
in European countries), in compliance with Australia and New Zealand safety requirements( or
European countries). And DRED device is not provided by GoodWe.
Detailed connection of DRED device is shown below:

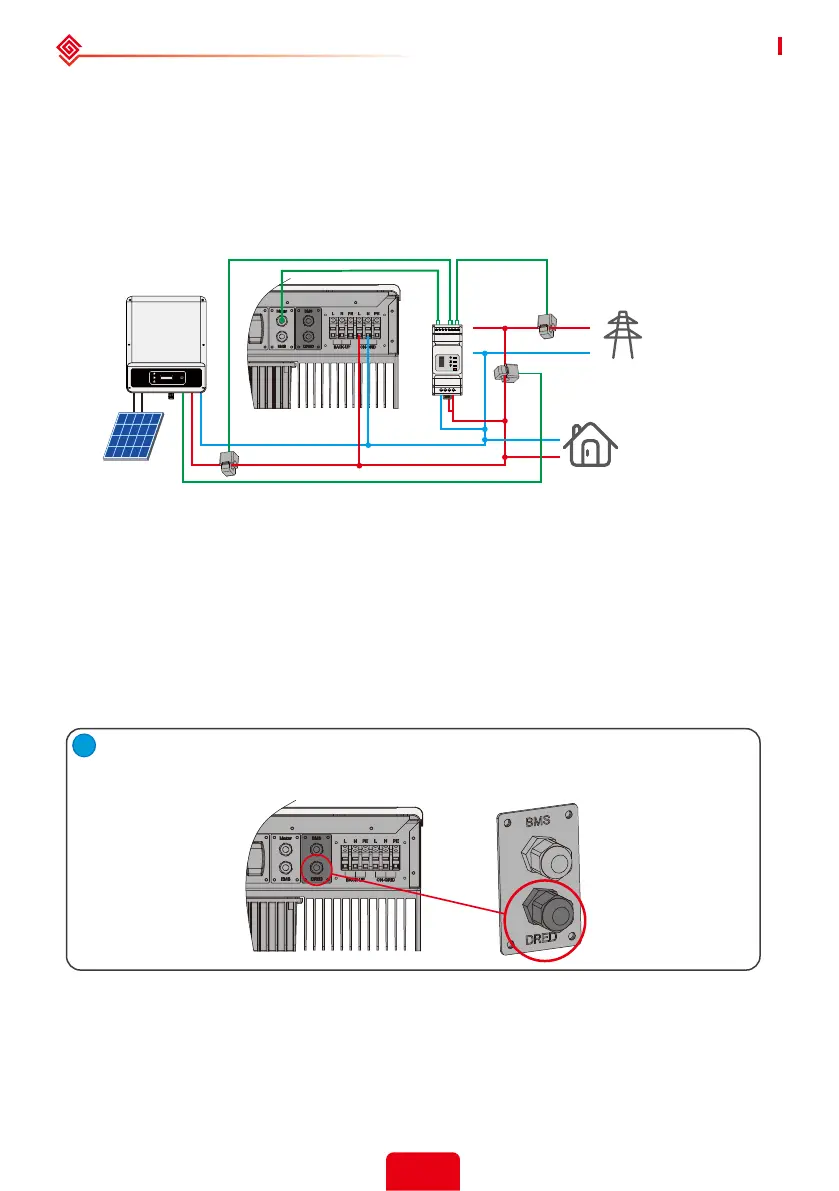

Anti-reverse function connection
If S-BP system (connected with grid-tied inverters) requires anti-reverse function, it is operable
but please note:
1. This diagram is only for installation where there is exporting power limit function requirement.
2. For anti-reverse function, it can be set on PV Master App → Advanced Setting → Power Limit.
3. This diagram will only applies if grid-tied inverter has anti-reverse function build-in. And the
power limitation value can be set on grid-tied inverter.
4. When using anti-reverse function, it would buy about 100W from the grid.
[1] This cable is a theoretical connection supporting anti-reverse function, which could be dierent for
dierent grid-tied inverters.
Smart Meter
SBP
PV
Single-Phase
Grid-Tied Inverter
House → Grid
Load
CT1
Grid
2.5 DRED & Earth Fault Alarm
Screw this plate o from the inverter.
Note: DRED / Remote Shutdown device should be connected through "DRED port" as the
gure shows.
