User Manual V1.5-2021-01-21 01 Introduction

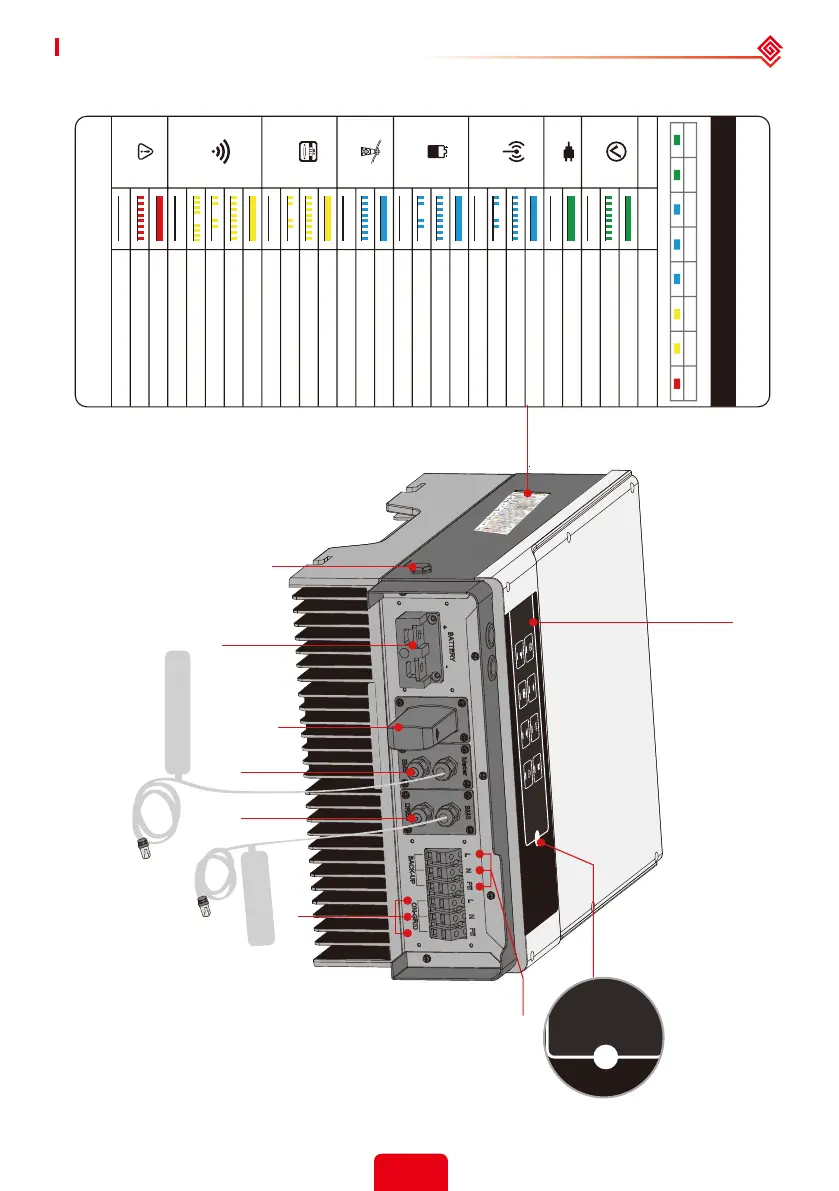

1.3 Product Overview
HYBIRD LED INDICATORS
INDICATOR
ENERGY
ON = SYSTEM IS READY
BLINK = SYSTEM IS STARTING UP
OFF = SYSTEM IS NOT OPERATING
ON = BACK-UP IS READY / POWER AVAILABLE
OFF = BACK-UP IS OFF / ON POWER AVAILABLE
ON = BMS AND METER COMMUNICATION OK
OFF = BMS AND METER COMMUNICATION FAIL
ON = BATTERY IS CHARGING
BLINK 1 = BATTERY IS DISCHARGING
BLINK 2 = BATTERY IS LOW / SOC IS LOW
OFF = BATTERY IS DISCONNECTED / NOT ACTIVE
ON = BATTERY IS ACTIVE AND CONNECTED
BLINK = GRID IS ACTIVE BUT NOT CONNECTED
OFF = GRID IS NOT ACITVE
ON =
CONSUMING ENERGY FROM GRID / BUYING
BLINK 1 = SUPPLYING ENERGY TO GRID / ZEROING
BLINK 2 = SUPPLYING ENERGY TO GRID / SELLING
ON = WiFi CONNECTED / ACTIVE
BLINK 1 = WiFi SYSTEM RESETTING
BLINK 2 = WiFi NOT CONNECT TO ROUTER
BLINK 4 = WiFi SERVER PROBLEM
OFF = WiFi NOT ACTIVE
ON = FAULT HAS OCCURRED
OFF = NO FAULT
STATUS EXPLANATION
SYSTEM BACK-UP COM BATTERY GRID ENERGY WiFi FAULT
BLINK1 = OVERLOAD OF BACK-UP
OUTPUT / REDUCE LOAD
BLINK 1 = METER COMMUNICATION OK,
BMS
COMMUNICATION FAIL
BLINK 2 = BMS COMMUNICATION OK,
METER
COMMUNICATION FAIL
OFF = GRID NOT CONNECTED OR
SYSTEM NOT OPERATING
SYSTEM
GRID
WiFi
COM
FAULT
BATTERY
2019
BACK-UP
LED Lable
WiFi reset / Reload Button
Back-Up Port
On-Grid Port
DRED
Wi-Fi Box
Reserved
RS485
Battery Terminals
Exhaust Valve
BMS Communication Cable
Smart Meter Communication Cable
To Battery
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
To Smart Meter
To Next Page
