01 Introduction User Manual V1.5-2021-01-21
1.1 Operation Modes Introduction
01 Introduction
S-BP series bi-directional inverter is designed for both indoor and outdoor use, which could be
used with or without existing grid-tied inverter systems to store energy using batteries. Energy
produced from grid-tied inverters shall be used to optimize self-consumption, excess energy
will be used to charge the batteries, if the battery is already full, power excess power could be
exported to the grid. Loads will be supported in priority by grid-tied system, then battery power,
if there is insucient energy, power will be supported by the grid.
Note:
The introduction describes a general behavior of S-BP system. The
operation mode can be adjusted on PV Master App depending on
the system layout. Below are the general operation modes for SBP
system:
SBP system normally has the following operation modes based on your conguration and layout
conditions.

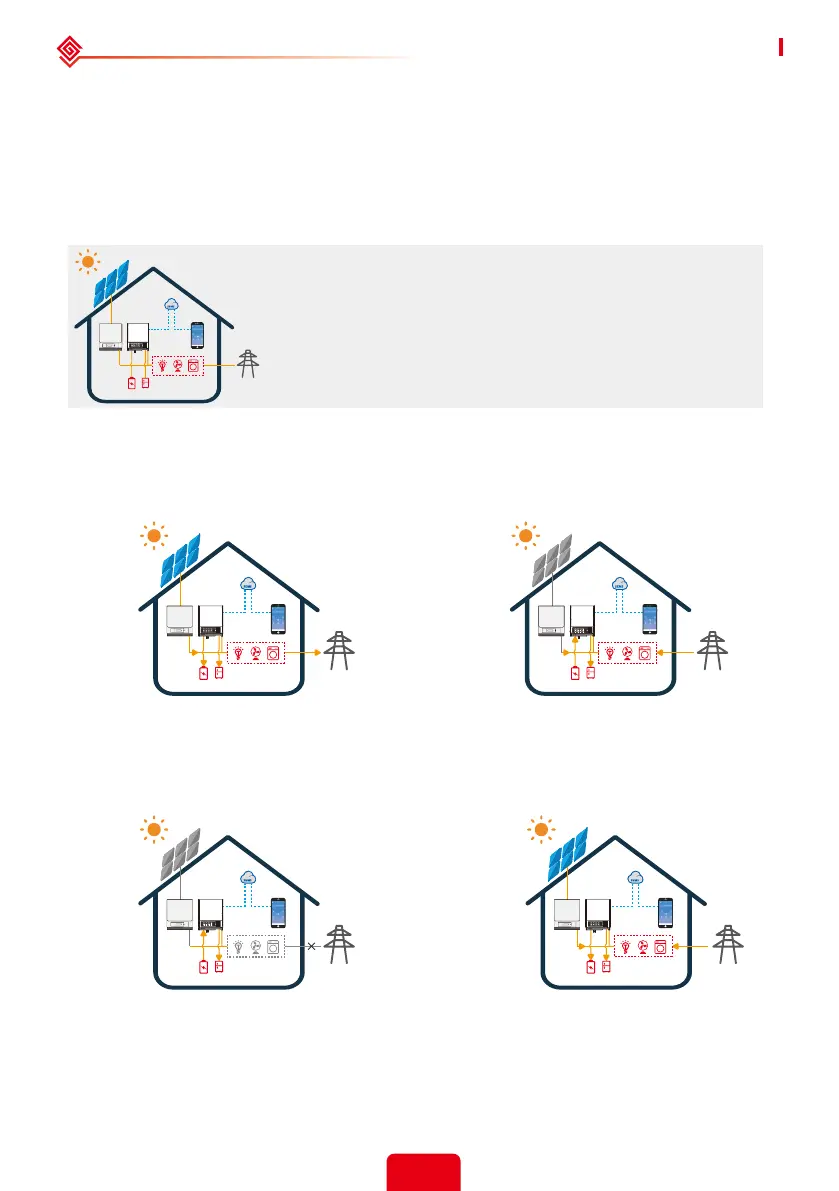

Mode I
Energy from grid-tied inverters optimize loads,
excess energy will be used to charge the battery,
anymore will be exported to the grid.
Mode III
When grid power fails, battery will discharge to
support back-up Loads.
Mode II
When energy from grid-tied inverters is
weak, battery will discharge to support the
load in priority together with the grid.
Mode IV
Battery could be charged by grid, and
charge time/power could be set exibly on
PV Master APP.
