Grace Continuum II - Assembling the Handwheel

56
Crib Frame Assembly
Parts & Tools Needed:
1
Instructions
The handwheel allows you to easily roll your quilt up as you sew.
Handwheel KnobHandwheel
14
17
Allen Wrench 6 mm
2

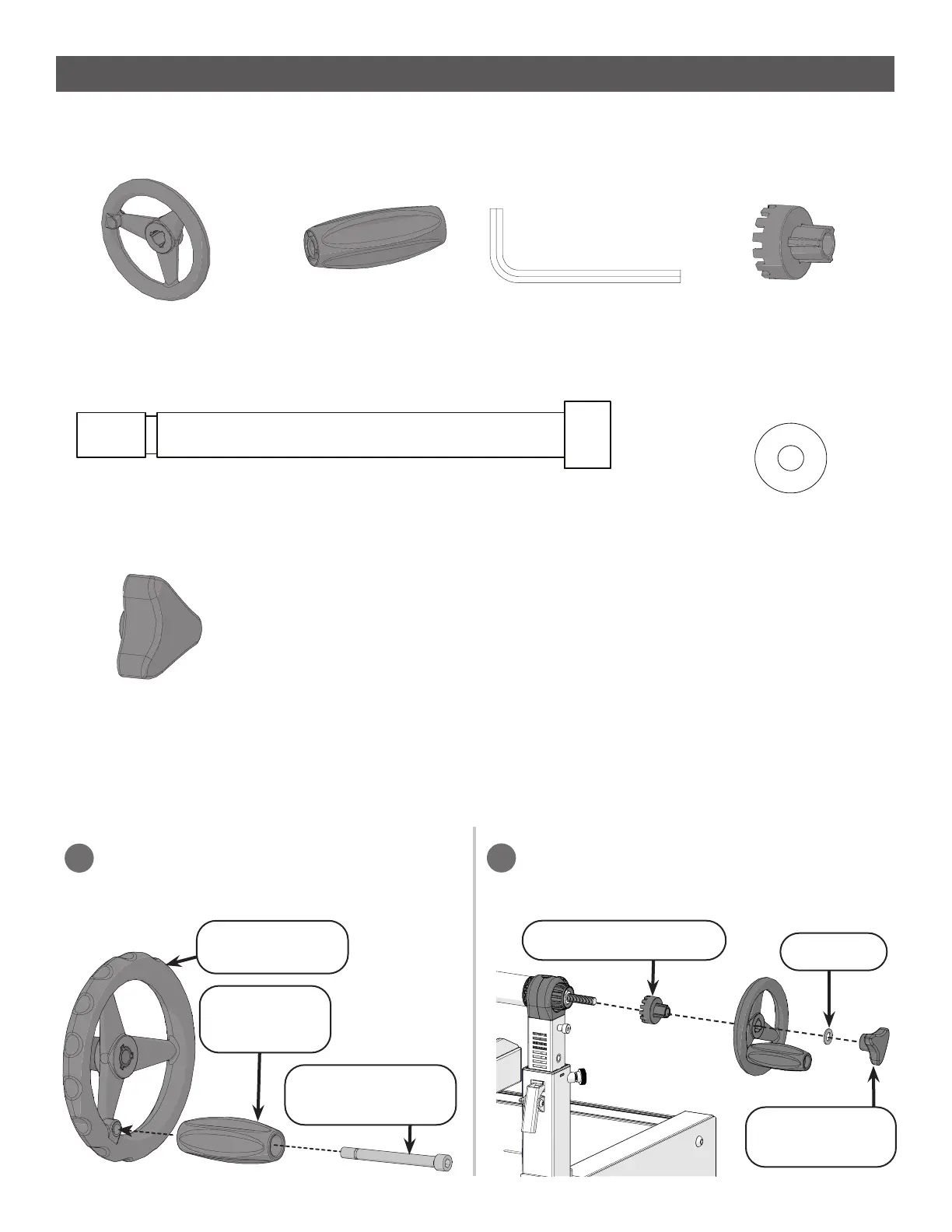

Step 9 - Assembling the Handwheel
Use the M8 shoulder bolt and 6 mm
Allen wrench to attach the handwheel
knob to the handwheel.
Handwheel
Handwheel
Knob
M8 Shoulder Bolt
(Box 1: Inner Box)
(Box 1: Inner Box)
(Box 1: Inner Box)
(Box 1: Inner Box)
Shoulder Bolt M8
Triangular Knob
Handwheel Coupler
M10 Washer
(Box 1: Inner Box)
(Box 1: Inner Box)
(Box 1: Inner Box)
Screw the handwheel coupler, handwheel,
washer, and three-armed handwheel
knob to the handwheel rail.
Handwheel Coupler
Washer
Three-armed
Handwheel Knob
