Grace Continuum II - Setting the Frame Height

9
Full Frame Assembly
Step 1 - Setting the Frame Height
Parts & Tools Needed:
Right Leg
Left Leg
Middle Leg
Open-ended Wrench
10 mm & 13 mm
14
17
14
17
Allen Wrench 5 mm
Instructions

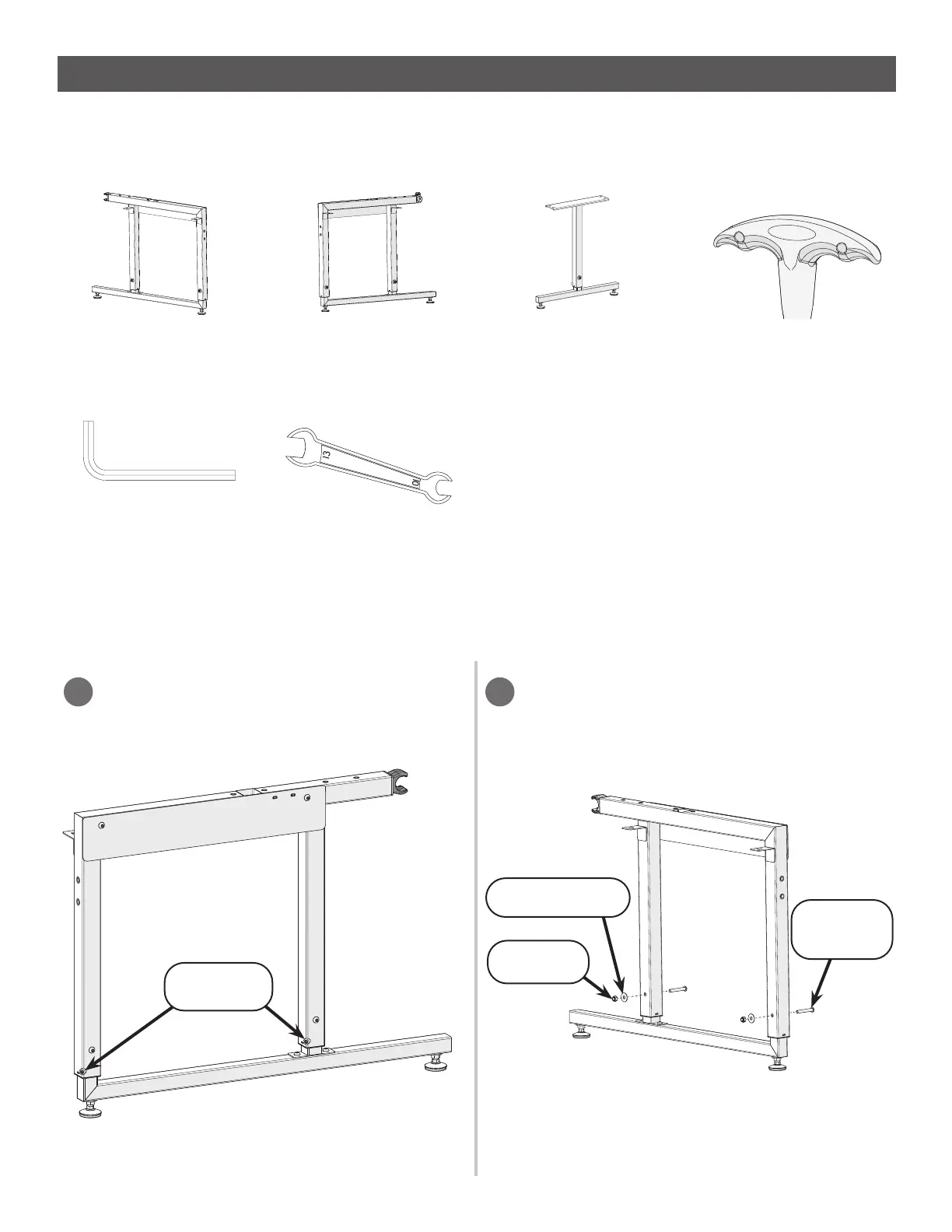

The frame height is most easily adjusted prior to frame assembly. Please take the following steps:
On all legs: Remove the M8 x 55 mm
SBHCS height screws, washer, and nut
with the 10 mm open-end wrench and
5 mm Allen wrench.
Nut (x2)
2
(Box 1)
(Box 1)
(Box 1)
(Box 1: Inner Box)(Box 1: Inner Box)
Height
Screw (x2)
Washer (x2)
Note: Middle leg has only one nut, washer,
and M8 x 55 mm SBHCS height screw.
On all legs: Loosen (do not remove) the
set screws toward the base of each leg
with the 4 mm Allen wrench.
1
Set Screws
Note: Middle leg has only one set screw.
4 mm
T-Handle Allen
Wrench 4 mm
(Box 1: Inner Box)
