Grace Continuum II - Installing the Bottom Carriage

20
Full Frame Assembly

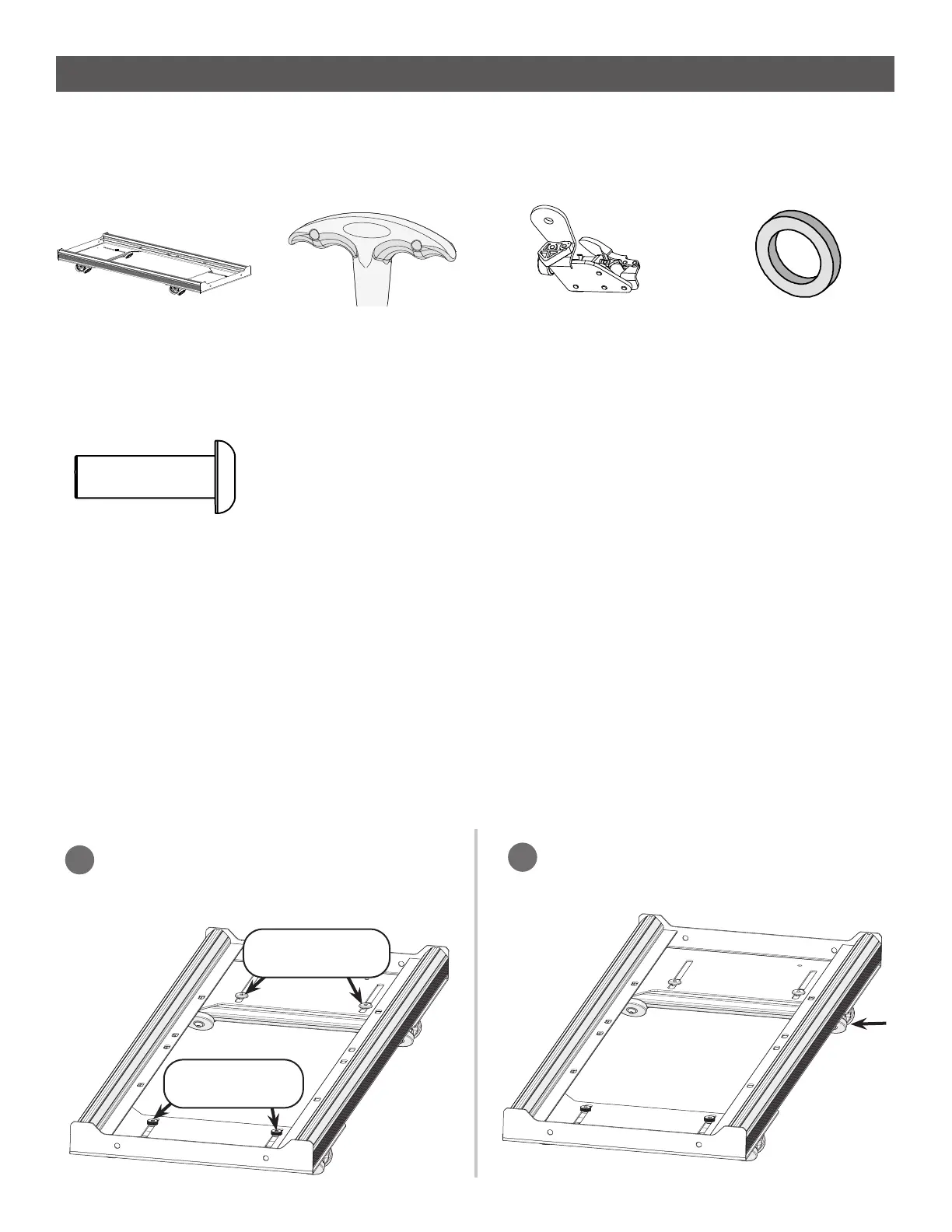

Step 5 - Installing the Bottom Carriage
Bottom Carriage
Parts & Tools Needed:
SBHCS Screw
M6 x 20 mm (x1)
Channel Lock
Washer (x1)
Channel Lock (x1)
Instructions
Install a channel lock on the bottom carriage before placing the bottom carriage onto the frame.
Channel locks assist with stitching straight lines.
Note: Instructions for using the channel locks can be found on page 71.
Find the front of the bottom carriage. The
bolts at the front of the carriage have
taller heads.
1
Taller Bolts
Shorter Bolts
Locate the right-rear bottom carriage
wheels.
2
(Box 4)
(Box 4)
(Box 4)
4 mm
T-Handle Allen
Wrench 4 mm
