22

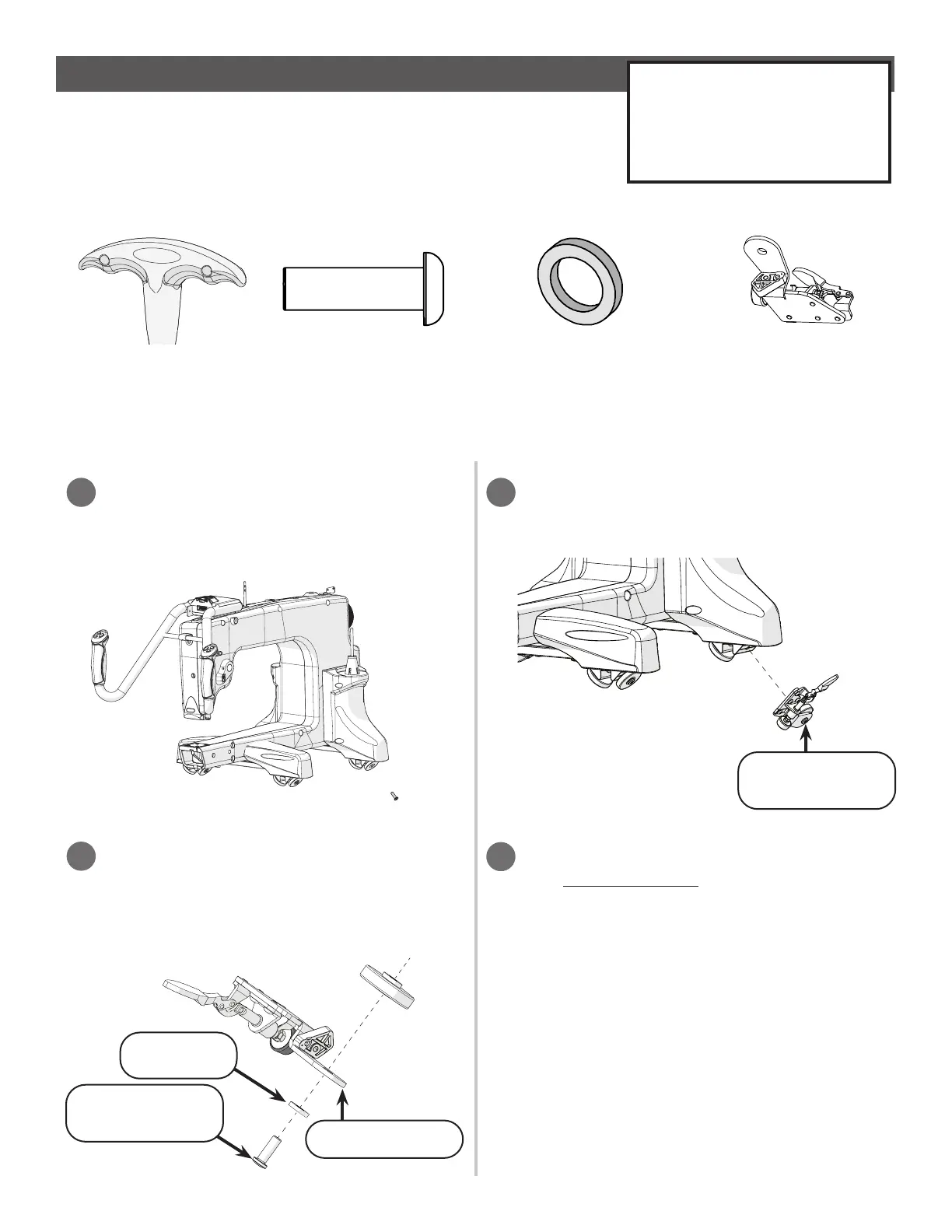

Full Frame Assembly
Step 6 - Installing the Quilting Machine
Parts & Tools Needed:
Instructions
A channel lock should be installed on your quilting machine or top carriage before it is placed on the
frame. The channel locks assist with quilting straight, even lines.
T-Handle Allen
Wrench 4 mm
4 mm
SBHCS Screw
M6 x 20 mm (x1)
Channel Lock
Washer (x1)
Channel Lock (x1)
Remove the rear wheel on the right side of
your quilting machine or top carriage with
the 4 mm Allen wrench.
1
STOP HERE. Follow the instructions in
your machine manual to fully assemble the
machine. Continue with frame instructions
only after machine is completed.
3
Place the washer, channel lock and
machine wheel onto the M6 x 20 mm
SBHCS screw.
2
(Box 4)
(Box 4) (Box 4)
If using a top carriage and
home sewing machine,
please follow the instructions
in your top carriage manual
and then go to page 24.
M6 x 20 mm
SBHCS
Washer
Channel Lock
Use the 4 mm Allen wrench to screw the
M6 x 20 mm SBHCS into the machine.
4
M6 x 20 mm
SBHCS
To Next Page
