Graco EcoQuip 2 - Setting up the Equipment

Operation
Setting Setting
Setting
Up Up
Up
the the
the
Equipment Equipment
Equipment

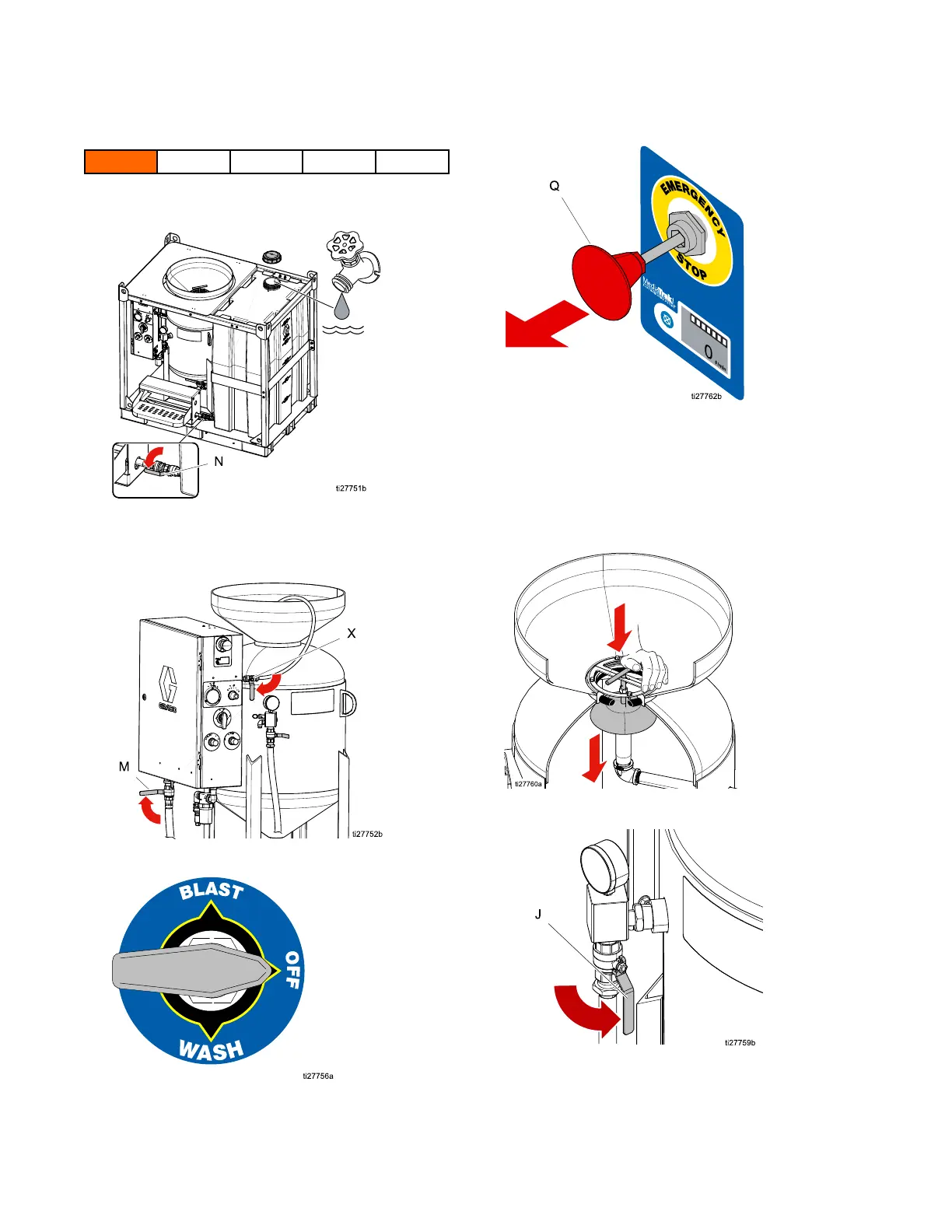

1.Fillthewatertankwithfreshwateronly,then
opentheinletballvalve(N).
2.Closetherinseballvalve(X)andabrasiveball
valve(M).Closethewaterdosemeter(S)if
equipped.
3.TurntheselectorvalvetoOFF.
4.Disengagetheemergencystop(Q).
8
8000
00
NOTE: NOTE:
NOTE:
Thewaterpumpwillnotworkunlessthe
EmergencyStopisdisengaged.
5.Alignthepop-uphandlewiththepinslot,and
then󰘰rmlypushandturnthehandle90°afterthe
pinisbelowthebracketslot.Properengagement
ofthepinwillholdthepop-updownuntilitis
released.
6.Openthepotdumpvalve(J).
14
3A3489E
