System
Component
Identication
Key:
Key:
Key:
A
Frame
B
Blast
Control
Switch
B2
Blast
Nozzle
C
Blast
Hose
E
Pot
F
Pop-up
Handle
G
Water
Tank
H
Water
Tank
Lid
J
Pot
Dump
Valve
K
Pressure
Relief
Valve
L
Pot
Pressure
Gauge
M
Abrasive
Ball
Valve
N
Inlet
Ball
Valve
(water)
P
Control
Box
Q
Emergency
Stop
R
Blast
Air
Regulator
S
Water
Dose
Valve
T
Abrasive
Metering
Valve
Key:
Key:
Key:
U
Water
Pump
Inlet
Filter
V
Blast
Air
Pressure
Gauge
W
Selector
Valve
X
Rinse
Ball
Valve
Y
Air
Supply
Connection
Z
Blast
Connection
ZA
Pneumatic
Control
Connection
ZB
Electric
Control
Connection
(non-ATEX
systems
only)
ZC
Supply
Pressure
Gauge
ZD
MediaTrak
ZE
Accessory
Extension
Hose
ZF
Abrasive
Material
ZG
Pot
Outlet
Manifold
ZH
Ground
Wire
and
Clamp
(ATEX
systems
only)
ZJ
Step
ZK
Float
Valve
XX
Pop-Up
Seal

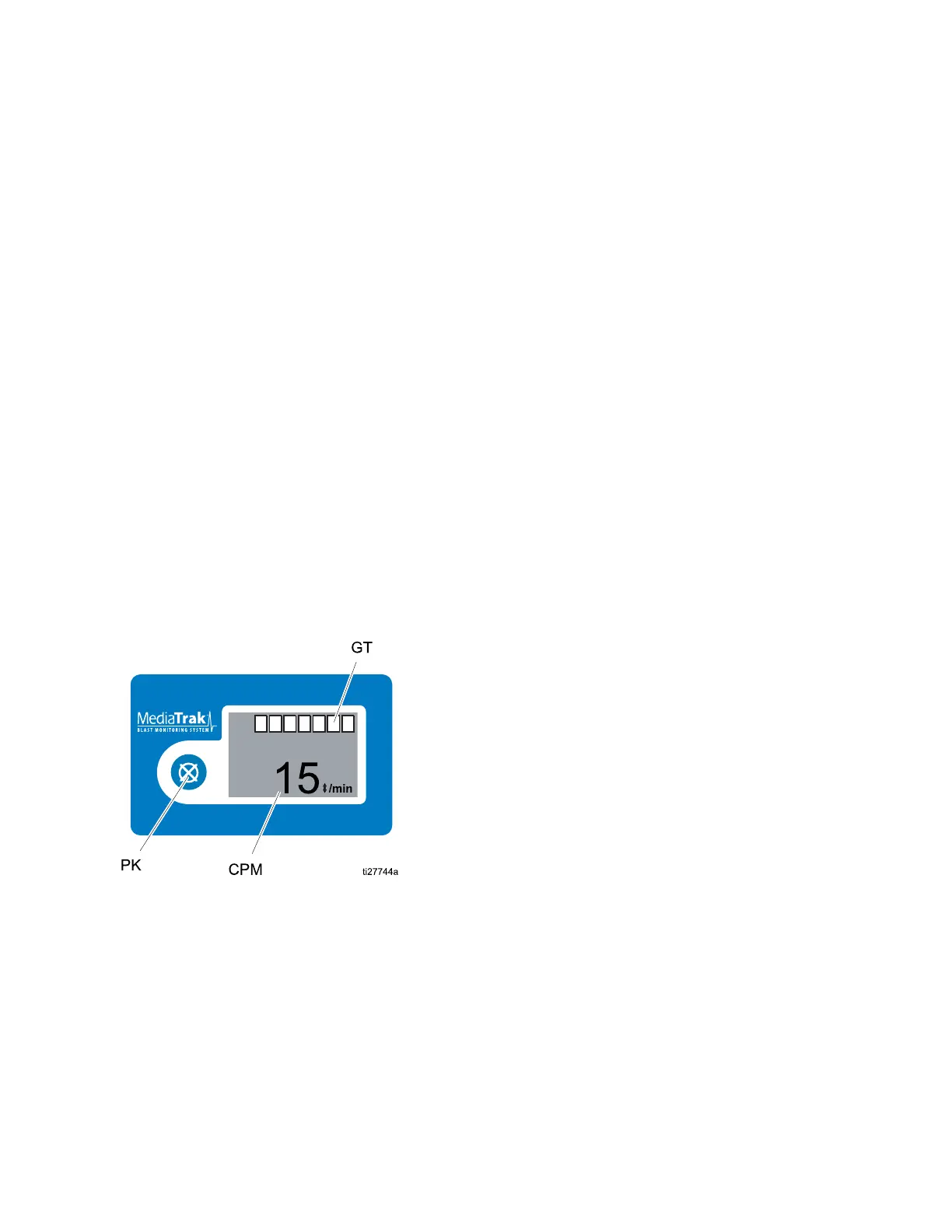

MediaTrak
MediaTrak
MediaTrak
Controls
Controls
Controls
8
8
0
0
0
0
0
Key:
Key:
Key:
PK
Power
Key
CPM
Cycle/Rate
GT
Grand
Totalizer
3A3489E
9
8
10
Table of Contents
Table of Contents
2
Models
3
Related Manuals
4
Warnings
5
System Component Identification
8
Mediatrak Controls
9
Pressure Relief Procedure
10
Grounding (ATEX Systems Only)
10
Operation
11
Lifting the System
11
Blast Hose Selection
11
Blasting on Higher Surfaces
11
Hose
12
Eqs2 Elite Only)
13
Setting up the Equipment
14
Eqs2 Elite Blast Pressure Setting
16
Setting the Abrasive Metering Valve
17
Valve
17
Nozzle Selection Guide
19
Using the Wash Feature
20
Refilling the Pot with Abrasive
21
Shutting down
21
Draining the Pot
22
Winterizing the Equipment
23
Cleaning the Water Tank
24
Using the Water Dose Meter
24
Troubleshooting
25
Repair
30
Replacing the Datatrak Battery
30
Replacing the Datatrak Fuse
31
Replacing the Pinch Hose
32
Notes
33
Parts
34
Eqm Parts
34
Eqs Parts
36
Eqs2 Parts
40
Eqc and EQ200T / EQ400T Models
44
EQ200T Parts
46
EQ400T Parts
48
Enclosure Box Parts
50
Blast Hoses
58
Vapor Abrasive Blast Systems and Accessories
59
Blast Hoses with Control Hose/Cable
59
Hose/Cable
59
Control Hoses/Cable with Blast Hose
59
Nozzles
59
EQ200T (M58 Kaeser Compressor)
60
EQ400T (Atlas Copco Compressor)
60
Other Accessories
61
Common Spare Parts
62
Tubing Schematic
63
Dimensions
64
Technical Specifications
67
Notes
73
Graco Standard Warranty
74
Other manuals for Graco EcoQuip 2
Instruction Manual
