Graco EcoQuip 2 User Manual
4
of 1
of 1 rating
74 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

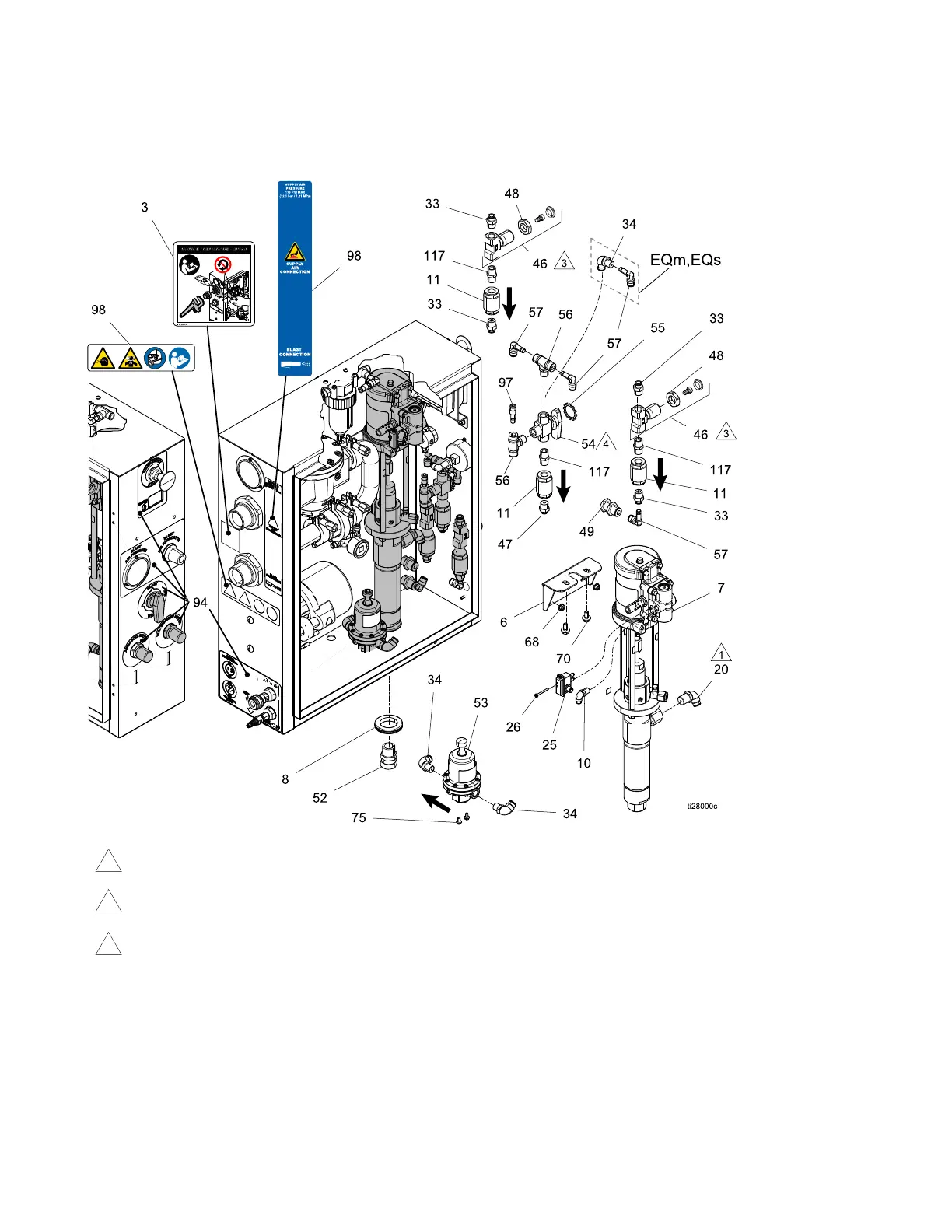

Parts
Enclosure
Enclosure
Enclosure
Box
Box
Box
Parts
Parts
Parts
Enclosure
Enclosure
Enclosure
Parts
Parts
Parts
1
Torque
tting
with
pump
outlet
tting
to
35–40
ft-lb
(47.4–54.2
N•m)
3
Apply
thread
sealant
to
needle
valve
knob
screw
when
reassembling.
Align
knob
with
‘D’
facing
up
when
in
closed
position.
4
Apply
thread
sealant
to
selector
valve
handle
set
screw
when
reassembling.
50
3A3489E
49
51
Table of Contents
Table of Contents
2
Models
3
Related Manuals
4
Warnings
5
System Component Identification
8
Mediatrak Controls
9
Pressure Relief Procedure
10
Grounding (ATEX Systems Only)
10
Operation
11
Lifting the System
11
Blast Hose Selection
11
Blasting on Higher Surfaces
11
Hose
12
Eqs2 Elite Only)
13
Setting up the Equipment
14
Eqs2 Elite Blast Pressure Setting
16
Setting the Abrasive Metering Valve
17
Valve
17
Nozzle Selection Guide
19
Using the Wash Feature
20
Refilling the Pot with Abrasive
21
Shutting down
21
Draining the Pot
22
Winterizing the Equipment
23
Cleaning the Water Tank
24
Using the Water Dose Meter
24
Troubleshooting
25
Repair
30
Replacing the Datatrak Battery
30
Replacing the Datatrak Fuse
31
Replacing the Pinch Hose
32
Notes
33
Parts
34
Eqm Parts
34
Eqs Parts
36
Eqs2 Parts
40
Eqc and EQ200T / EQ400T Models
44
EQ200T Parts
46
EQ400T Parts
48
Enclosure Box Parts
50
Blast Hoses
58
Vapor Abrasive Blast Systems and Accessories
59
Blast Hoses with Control Hose/Cable
59
Hose/Cable
59
Control Hoses/Cable with Blast Hose
59
Nozzles
59
EQ200T (M58 Kaeser Compressor)
60
EQ400T (Atlas Copco Compressor)
60
Other Accessories
61
Common Spare Parts
62
Tubing Schematic
63
Dimensions
64
Technical Specifications
67
Notes
73
