Graco InvisiPac HM25c User Manual

Screens
334784G 29

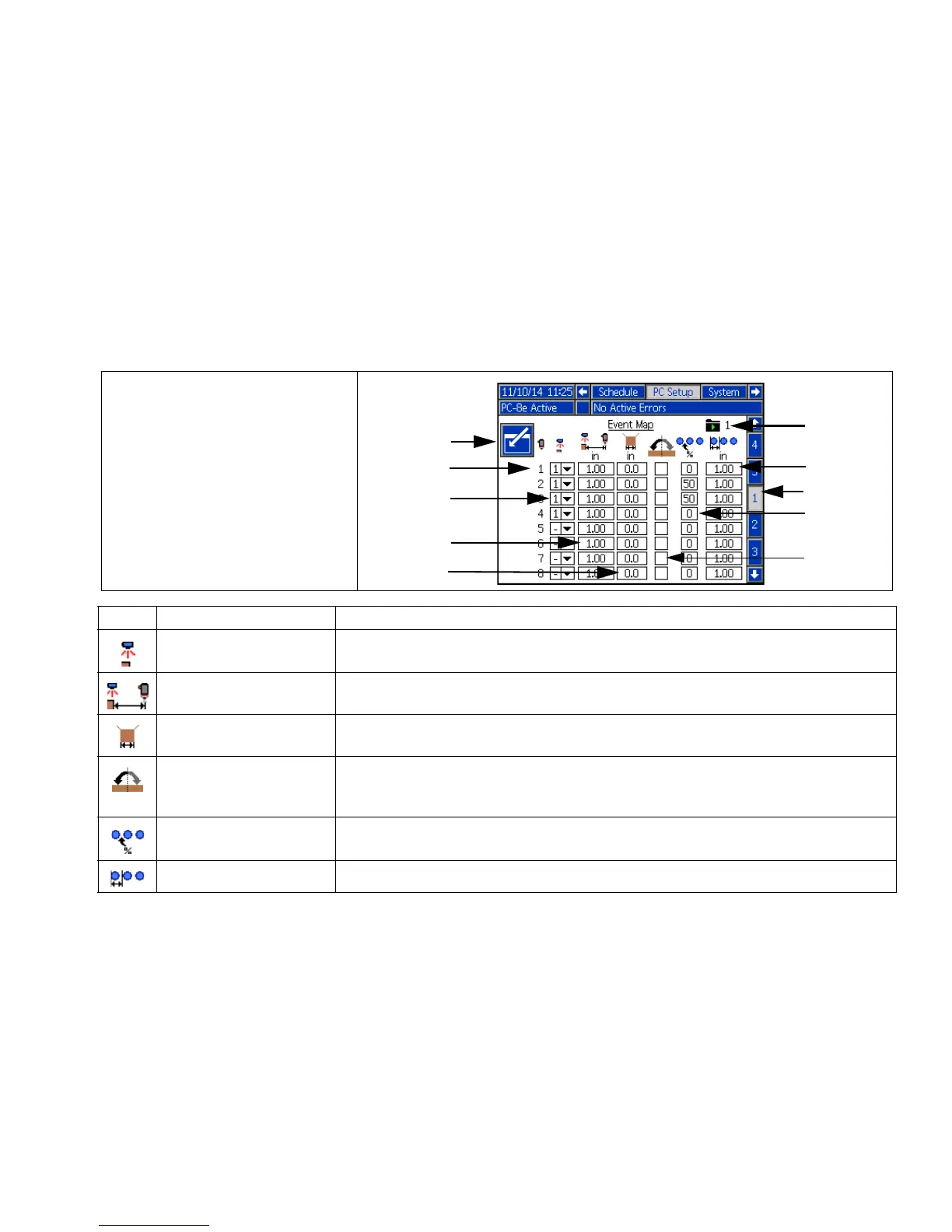

Event Map (Screen 1)
Enter configuration settings for this pattern:
1. Assign trigger to each gun.
2. Enter gun trigger offset.
3. Enter minimum product length (if false trigger pickup is a concern).
4. Enable pattern mirroring.
5. Enter stitch percentage and interval.
* Current program indicator signifies that changes to the settings on this page will only affect the current program.
A - Enter screen
B - Gun number
C - Trigger for gun
D - Gun trigger offset
E - Minimum product length
F - Current program*
G - Stitch interval
H - Stitch savings
J - Mirror mode
P - Screen number (Screen 1)
Icon Name Description
Trigger Trigger associated with this gun
Gun trigger offset The physical distance or time between the trigger and the gun
Minimum product length Blocks triggers from activating a second pattern within the minimum product
length
Mirror mode Mirrors beads from the leading edge of the box to the trailing edge of the box.
NOTE: If mirror mode is selected, the gun-to-trigger offset must be at least half
the length of the box. See Mirror Mode, page 39.
Stitch savings Percentage of glue saved by stitching. Set to 0 to disable stitching. NOTE: Stitch-
ing must also be enabled/disabled for each bead. See Stitching, page 37.
Stitch interval The distance between the start of each stitch
A
B
C
D
E
F
G
P
H
J
