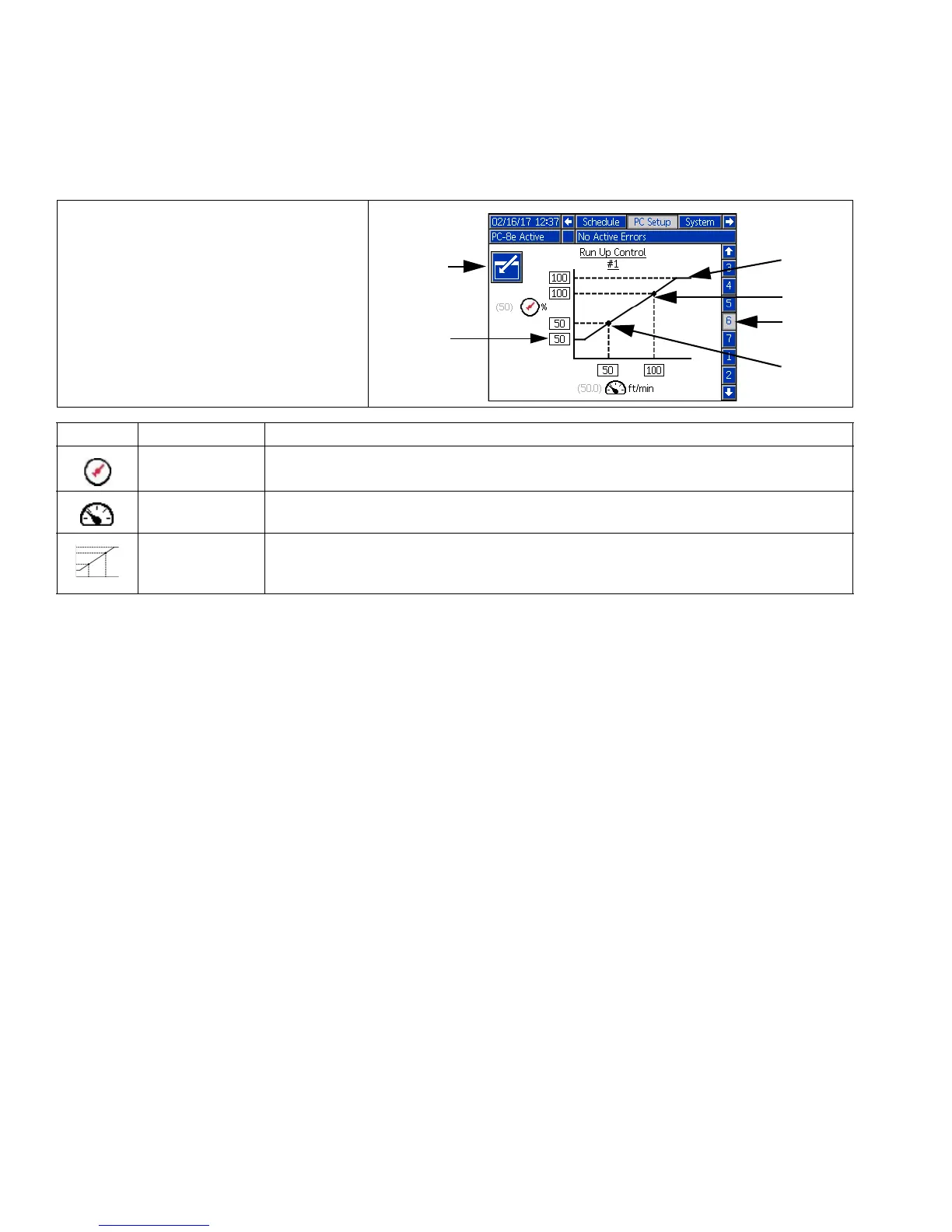

Run Up Control (Screens 6-7, PC-8e only)
Enter run up output settings. See Calibration - Run Up Control, page 34.
NOTE: % output refers to the percentage of the run up controller full scale setting, not the percentage of the inlet high
pressure.
A - Enter screen
B - Minimum output
C - Maximum output
D - High calibration point
E - Low calibration point
P - Screen number (Screen 6)
Icon Name Description
Output pressure
percentage
Enter minimum and maximum pressure for run up control.
Enter corresponding pressure points for entered line speed points to set run up curve.
Line speed Upper and lower line speed points
Run up pressure
to line speed
curve
Curve is set by two points which are defined by the user. Upper and lower limits
define bounds over which run-up will function linearly.
