Alignment Pin Adjustment
The air cap alignment pin (8e) is factory-set to the
vertical spray pattern position. See F
IG. 9
1. Unscrew the air cap alignment pin (8e) with needle
nose pliers.
2. Move the alignment pin (8e) to the desired position.
See F
IG. 10.
3. Use low-strength thread sealant to reinstall.
4. Torque to 1.5-2.5 in-lb (0.2-0.3 N•m). Do not over
tighten.
Reverse-A-Clean® (RAC) Setup
Convert any air assist or airless PerformAA 50 gun
models to a RAC gun model with RAC Conversion Kit
24C791. See Reverse-a-Clean Kits, page 56.
1. Follow the Pressure Relief Procedure, page 15.
2. Engage the trigger lock (3). See F
IG. 12, page 15.
3. Insert the RAC housing into the air cap assembly.
4. Insert the RAC SwitchTip.
5. Insert the tip gasket.
6. Screw the air cap assembly onto the gun, and
tighten firmly by hand.

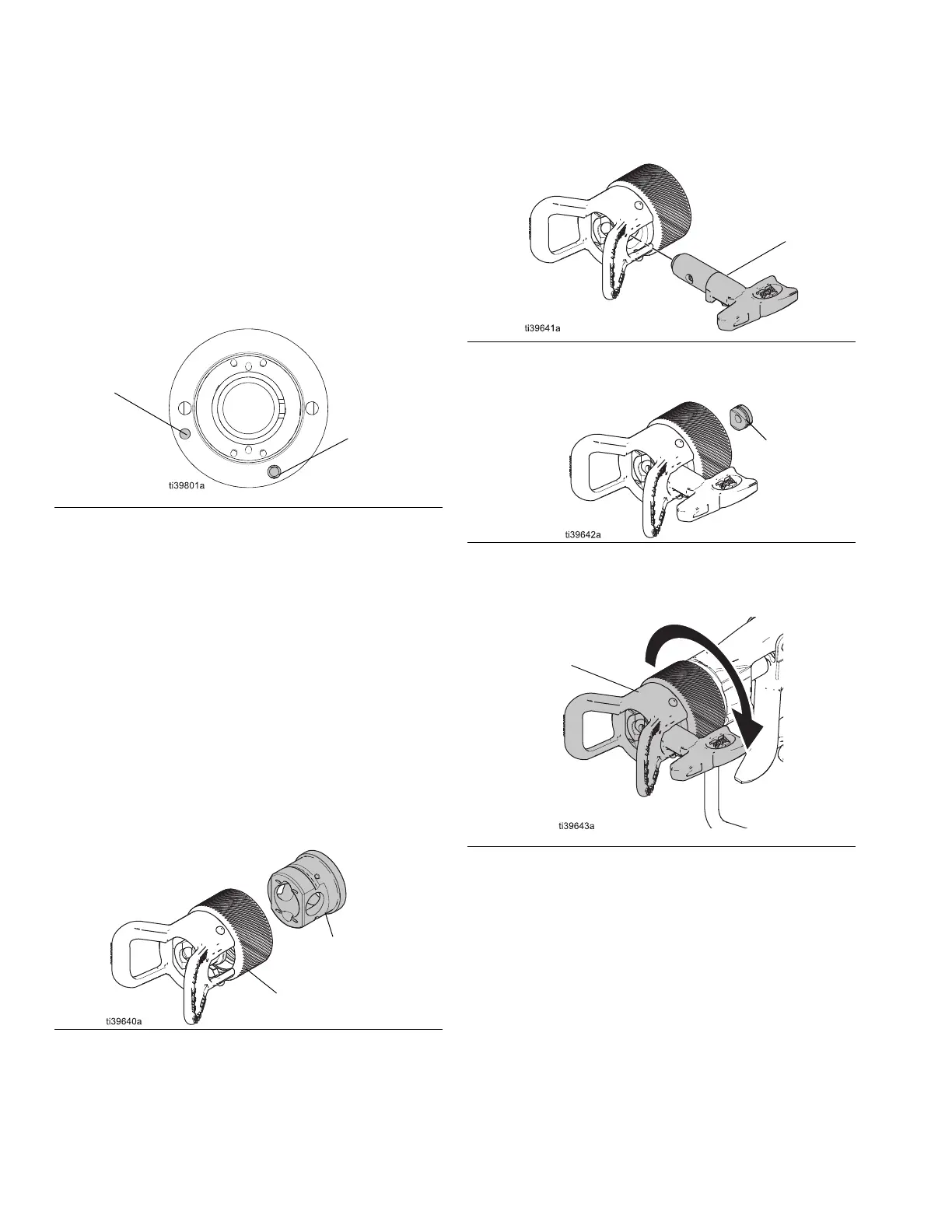

FIG. 10: Air cap alignment pin positions
RAC
Housing
Air Cap
Assembly
