Graco PerformAA 15 User Manual

Typical Installation
3A8099A 9
Typical Installation
NOTE: The typical installation shown in FIG. 3 is only a
guide for selecting and installing air assist spray
systems. Contact your Graco distributor for assistance
in designing a system to meet your needs.
Key:
A Air Shutoff Valve
B Air Line Filter
C Gun Air Pressure Regulator
D Bleed Type Master Air Valve
E Pump Air Pressure Regulator
F Air Assist Spray Gun
G Gun Fluid Supply Hose
H Gun Air Supply Hose
I Fluid Filter
J Grounding Wire
K Suction Hose
L Fluid Drain Valve
M Paint Supply Pail
NAir Line

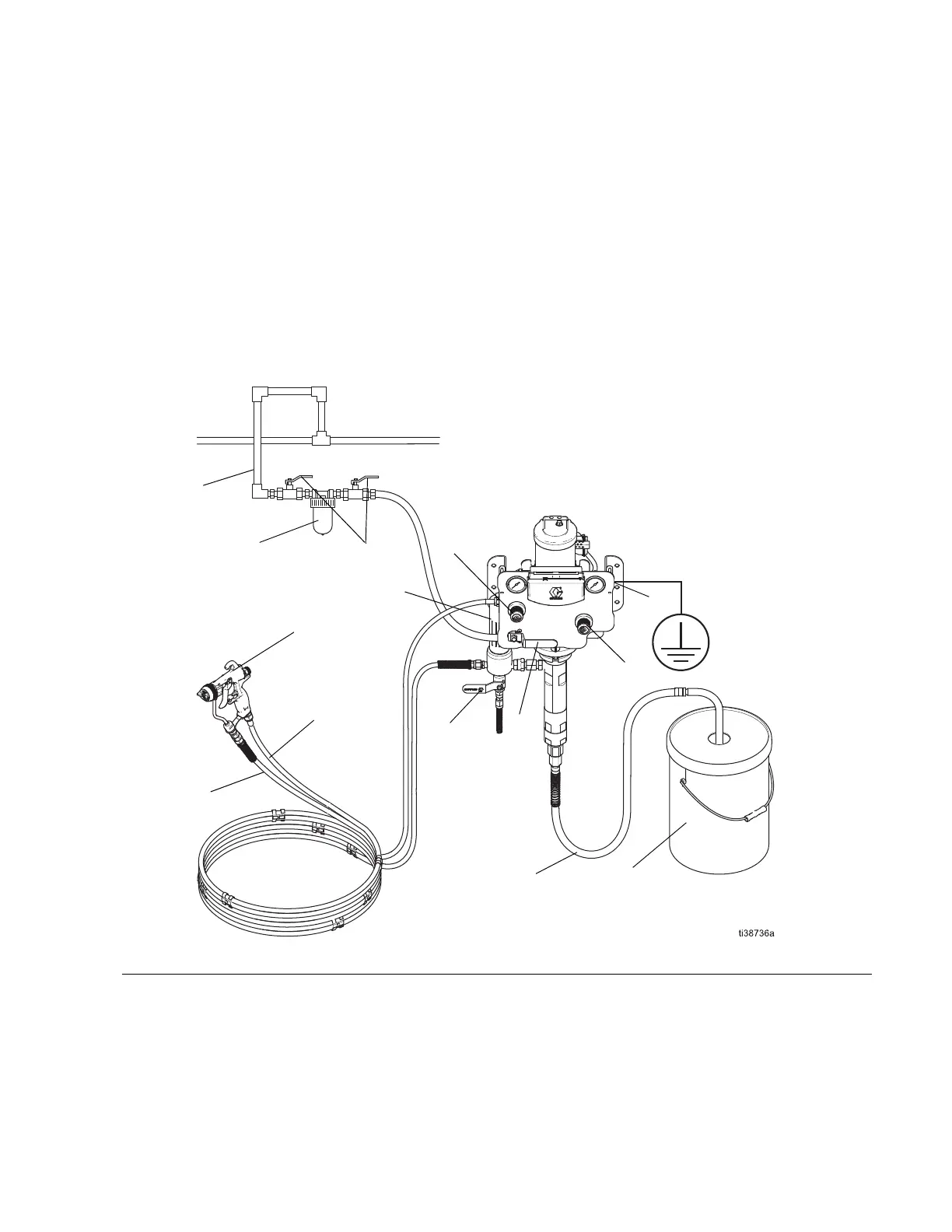

FIG. 3: Typical installation (PerformAA 15 model 26B501 shown)
N
B
C
A
H
F
G
K
D
E
I
J
M
L
