Graco PerformAA 15 - Fluid Tube Assembly Parts

Parts
3A8099A 49
26B702 Fluid Cartridge Kit: Wood Lacquer and Low
Viscosity with carbide ball and seat and low
viscosity spring.
Used in models 26B502, 26B503, and 26B505. Not
compatible with PerformAA 50 or RAC models.
26B703 RAC Fluid Cartridge Kit with carbide ball
and seat.
Used in models 26B517 and 26B518. Not compatible
with other models.

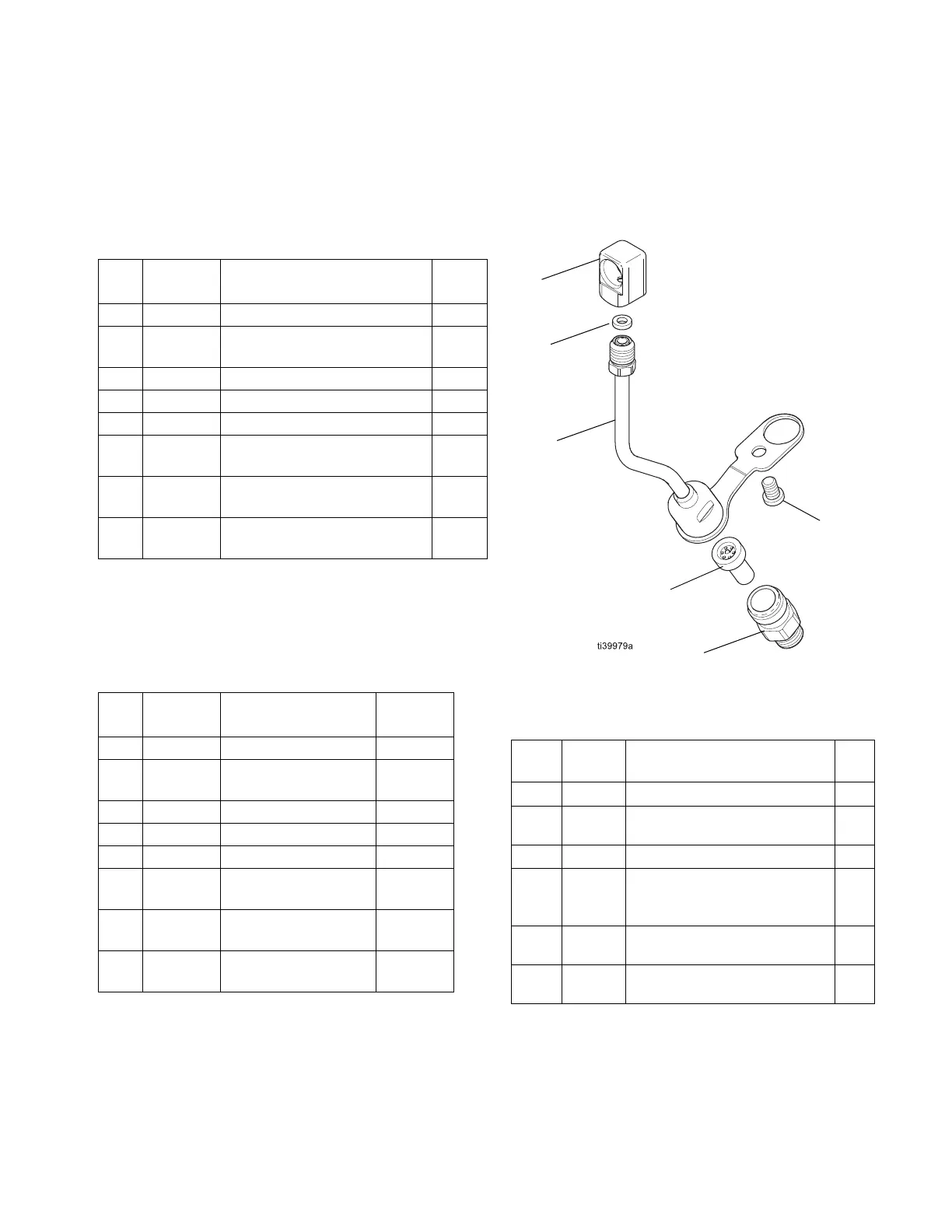

Fluid Tube Assembly Parts
See Fluid Tube Repair Kits, page 55 for kit numbers.
Ref.
No.
Part No. Description Qty.
6a 26B707 KIT DIFFUSER, carbide seat 1
6b 26B880 KIT, NEEDLE ASSEMBLY,
wood Lacquer, low viscosity
1
6c 111316 PACKING, O-RING 3
6d 111116 PACKING, O-RING 1
6e 116768 PACKING, O-RING 1
6f --- NUT, SEAT purchase kit
26B710
1
6g --- SEAT CARBIDE purchase kit
26B710
1
6h --- GASKET, SEAT, purchase kit
26B710
1
Ref.
No.
Part No. Description Qty.
6a 26B709 KIT DIFFUSER, RAC 1
6b 26B704 KIT, NEEDLE,
ASSEMBLY
1
6c 111316 PACKING, O-RING 3
6d 111116 PACKING, O-RING 1
6e 116768 PACKING, O-RING 1
6f --- NUT, SEAT,
purchase kit 26B710
1
6g --- SEAT, CARBIDE,
purchase kit 26B710
1
6h --- GASKET, SEAT,
purchase kit 26B710
1
Ref.
No.
Part
No.
Description Qty.
13a --- FLUID TUBE 1
13b --- INSERT, CARTRIDGE, fluid
tube
1
13c 115133 GASKET, fluid tube
14 205264 FILTER, TIP, See Inline
Fluid Filter Kits, page 55
(not included with 26B509)
1
15 24D437 FITTING, HOSE, FILTER
(not included with 26B509)
1
17 119996 SCREW, CAP, SCKT, LH,
1/4-20X3/8
1
17
14
15
13a
13b
13c
