Graco Reactor 2 Series User Manual

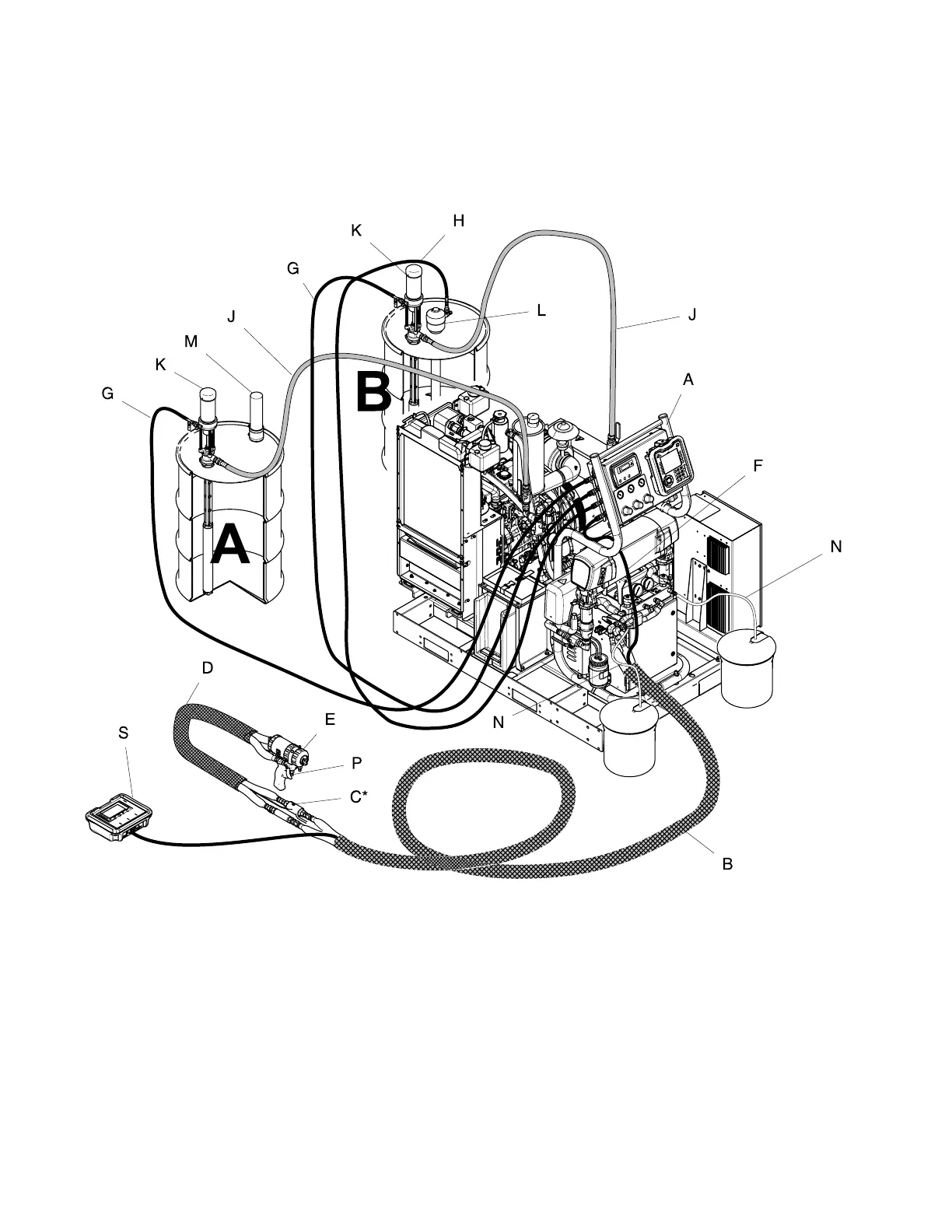

Typical Installation, without circulation
Typical Installation,
without circulation
Figure 1
* Shown exposed for clarity. Wrap with tape during operation.
A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E
Fusion Spray Gun
F
Gun Air Supply Hose
G Feed Pump Air Supply Lines
H
Agitator Air Supply Line
J
Fluid Supply Lines
K Feed Pumps
L Agitator
M Desiccant Dryer
N Bleed Lines
P
Gun Fluid Manifold (part of gun)
S Remote Display Module Kit (optional)
