Operation
Operation

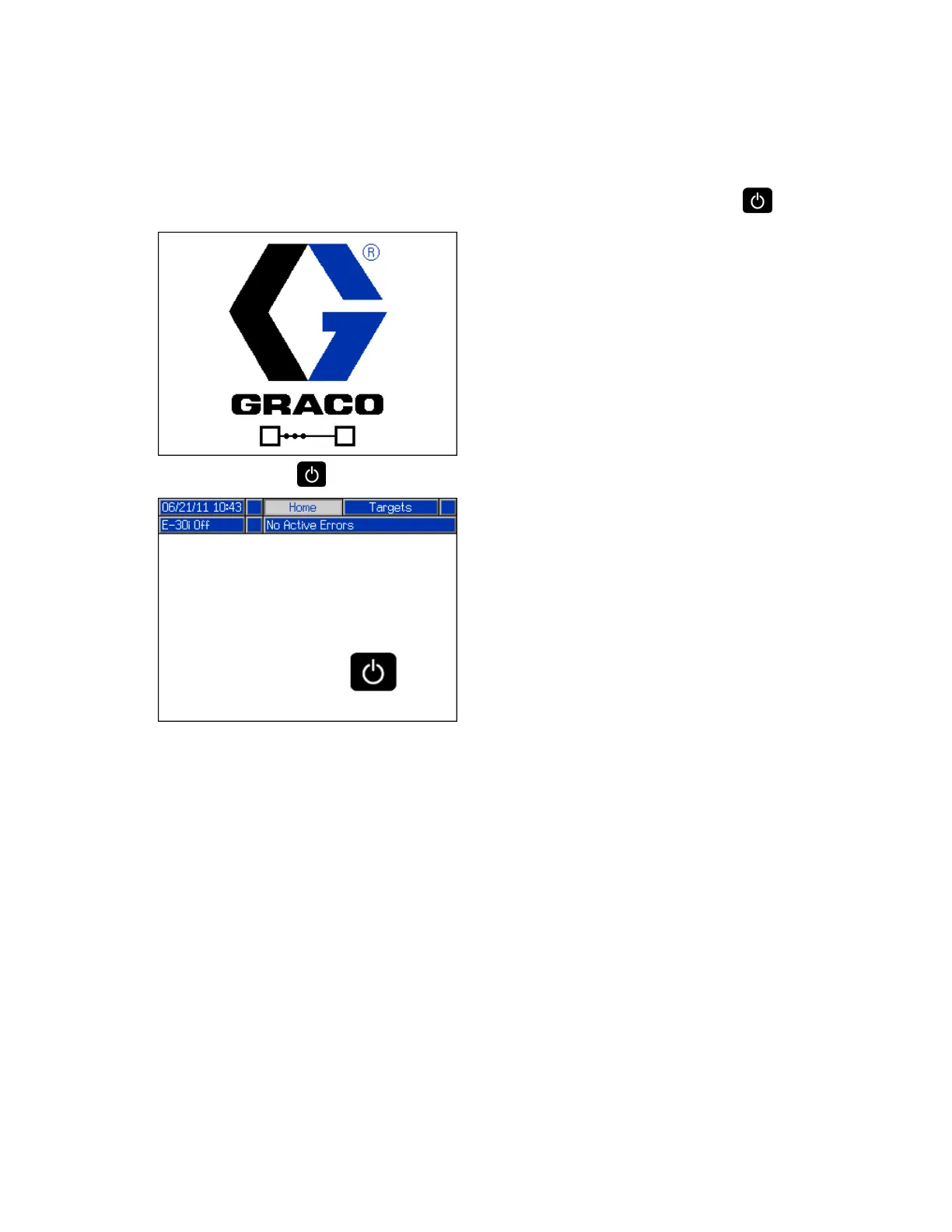

1. Turn the main power switch ON. The Graco logo
will display until communication and initialization
is complete.
2. Press the on/off button .
3. Verify the machine is active and the System
Status LED is illuminated green, see
Advanced Display Module (ADM), page 21.If
the System Status LED is not green, press the
ADM Power On/Off (A) button
. The System
Status LED will illuminate yellow if the machine
is disabled.
Initial System Setup
Perform the following tasks to fully setup your system.
1. Select pressure for the Pressure Imbalance
Alarm to activate. See System Screen , page 51.
2. Enter, enable, or disable recipes. See
Recipes Screen, page 56.
3. Set general system settings. See
Advanced Screen 1 — General, page 50.
4. Set units of measure. See
Advanced Screen 2 — Units, page 50.
5. Set USB settings. See
Advanced Screen 3— USB, page 50.
6. Set target temperatures and pressure. See
Targets, page 53.
7. Set component A and component B supply
levels. See Maintenance, page 54.
8. Ensure engine is at operating temperature on the
home screen.
