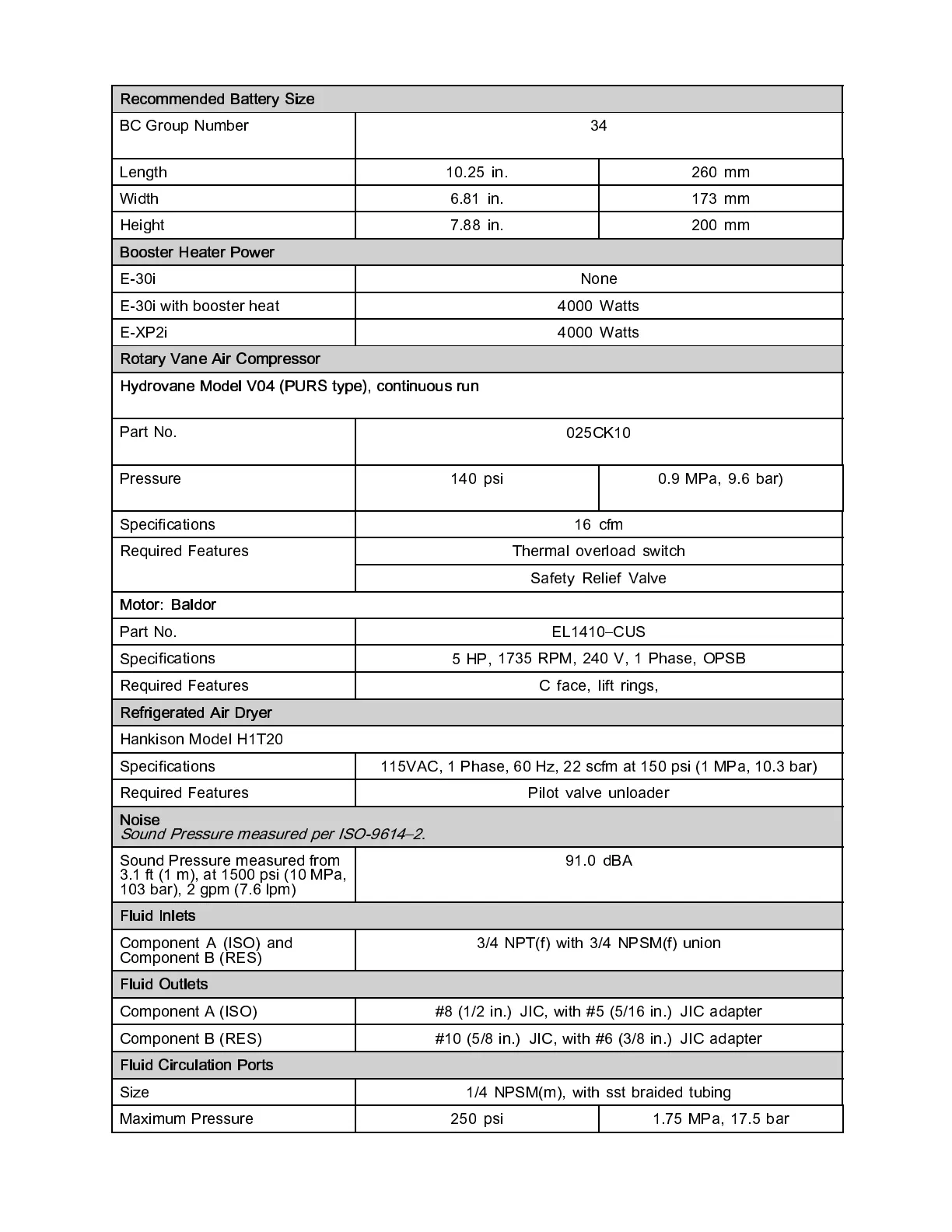

Recommended Battery Size
BC Group Number
34
Length 10.25 in. 260 mm
Width 6.81 in. 173 mm
Height 7.88 in. 200 mm
Booster Heater Power
E-30i None
E-30i with booster heat 4000 Watts
E-XP2i 4000 Watts
Rotary Vane Air Compressor
Hydrovane Model V04 (PURS type), continuous run
Part No.
025CK10
Pressure 140 psi 0.9 MPa, 9.6 bar)
Specifications 16 cfm
Thermal overload switchRequired Features
Safety Relief Valve
Motor: Baldor
Part N
o.
EL1410–CUS
Spec
ifications
5HP,
1735 RPM, 240 V, 1 Phase, OPSB
Required Features
C face, lift rings,
Refrigerated Air Dryer
Hankison Model H1T20
Specifications 115VAC, 1 Phase, 60 Hz, 22 scfm at 150 psi (1 MPa, 10.3 bar)
Required Features Pilot valve unloader
Noise
Sound Pressure measured per ISO-9614–2.
Sound Pressure measured from
3.1 ft (1 m), at 1500 psi (10 MPa,
103 bar), 2 gpm (7.6 lpm)
91.0 dBA
Fluid Inlets
Component A (ISO) and
Component B (RES)
3/4NPT(f)with3/4NPSM(f)union
Fluid Outlets
Component A (ISO) #8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter
Component B (RES) #10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter
Fluid Circulation Ports
Size 1/4 NPSM(m), with sst braided tubing
Maximum Pressure 250 psi 1.75 MPa, 17.5 bar
