Parts
46 3A1570V

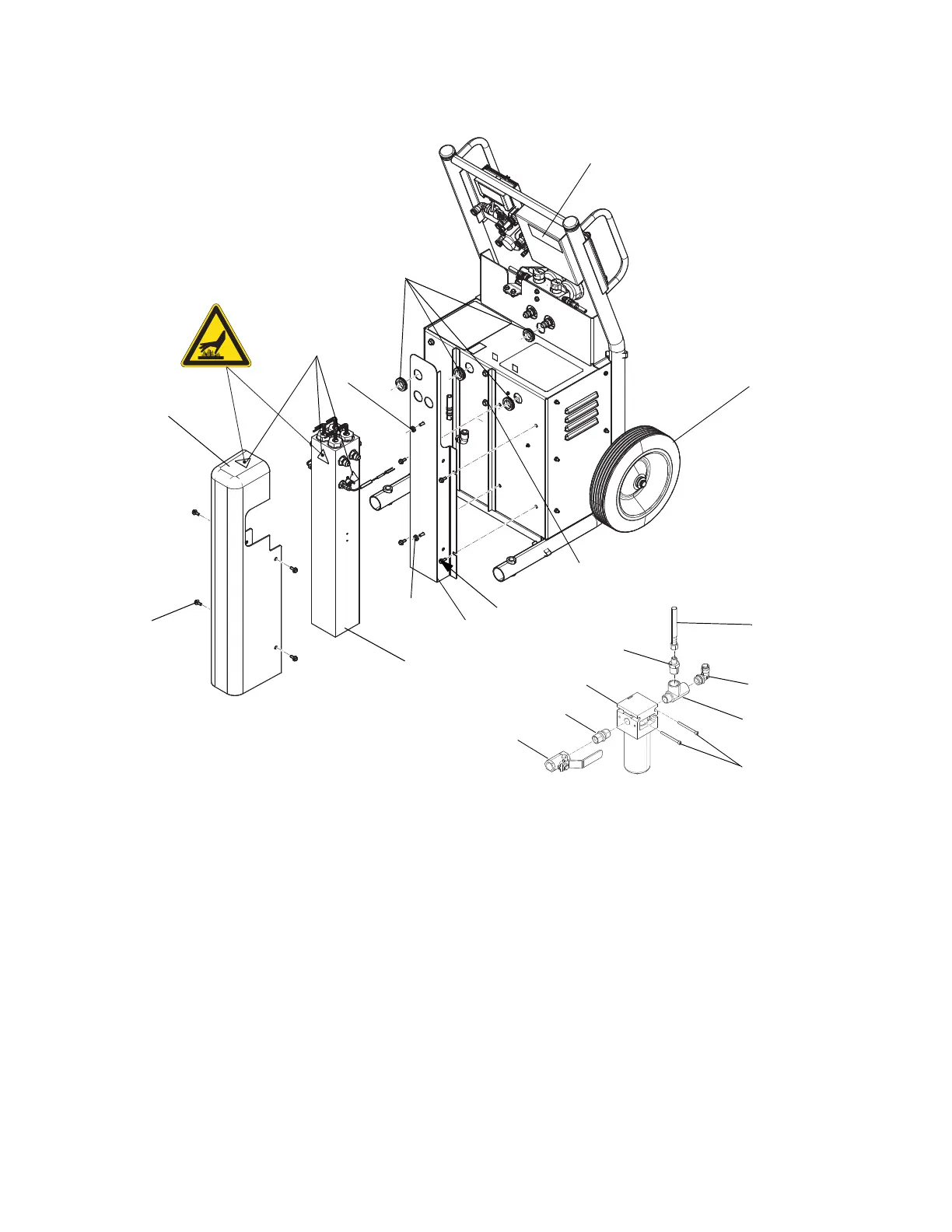

262572, Bare Reactor A-25 / 24Y164, Bare Reactor A-XP1
262614, Reactor A-25 with DataTrak and Wheels / 24Y165, Reactor A-XP1 with DataTrak and Wheels
WLE
34
13 (x4)
60
5
33
13 (x4)
12
49
49
83
30
29
28
80
27
31
32
ti18007a
98
37
10
Ref. Part Description Qty.
1 ----- CART 1
2 262573 PUMP (A-25); see page 52 1
24Y086 PUMP (A-XP1); see page 52
3 262577 MANIFOLD (A-25), relief; see page 50 1
24Y177 MANIFOLD (A-XP1), relief; see page
50
4 ----- PANEL, control, heater;
see page 49
1
5 24J788 HEATER (A-25), system, (6.0kw,
230v); see page 51
1
24Y163 HEATER (A-XP1), system, (6.0kw,
230v); see page 51
6 262575 PANEL (A-25), control; see page 48 1
24Y167 PANEL (A-XP1), control; see page 48
7 262576 MODULE (A-25), breaker; see page 54 1
24Y166 MODULE (A-XP1), breaker; see page
54
8 247840 TRANSFORMER, 2790va, 230/62 1
9 111799 SCREW, cap, hex hd; M8 x 1.25 8
10 108296 SCREW, mach, hex wash hd; 1/4-20
UNC-2A
4
11 125621 SCREW, machine, hex washer, hd; M6
x 1
6
12 16G917 BRACKET, heater 1
13 114182 SCREW, mach, hex flange; M6 x 1 15
14 117623 NUT, cap, 3/8-16 4
15 106084 SCREW, mach, pan hd; M5 x 0.8 2
16 117682 BUSHING, strain relief 1
Ref. Part Description Qty.
