Operation
37
Parameter Description Possible settings / Remarks
Mode Selection of basic placing
programme
Stacking
Long shingling
Cross shingling
Circular shingling
quantity
(Multi)
Number of rows/stacks 1 to 4
Circular shingling: no parameter available
Slices
(Preselection)
Number of slices per stack,
row, circle
Layout Only in stacking mode.
Determines the offset
direction/pattern if there are
several stacks
Lengthwise: stack offset in y-direction
Crosswise: stack offset in y-direction
Square: stack is arranged on the corners of a square
Portion
(Tray)
Number of packing units,
portions
With packing machine: specification of the number of packing
units
Without packing machine: specification of the number of
layers that can be sliced onto each other.

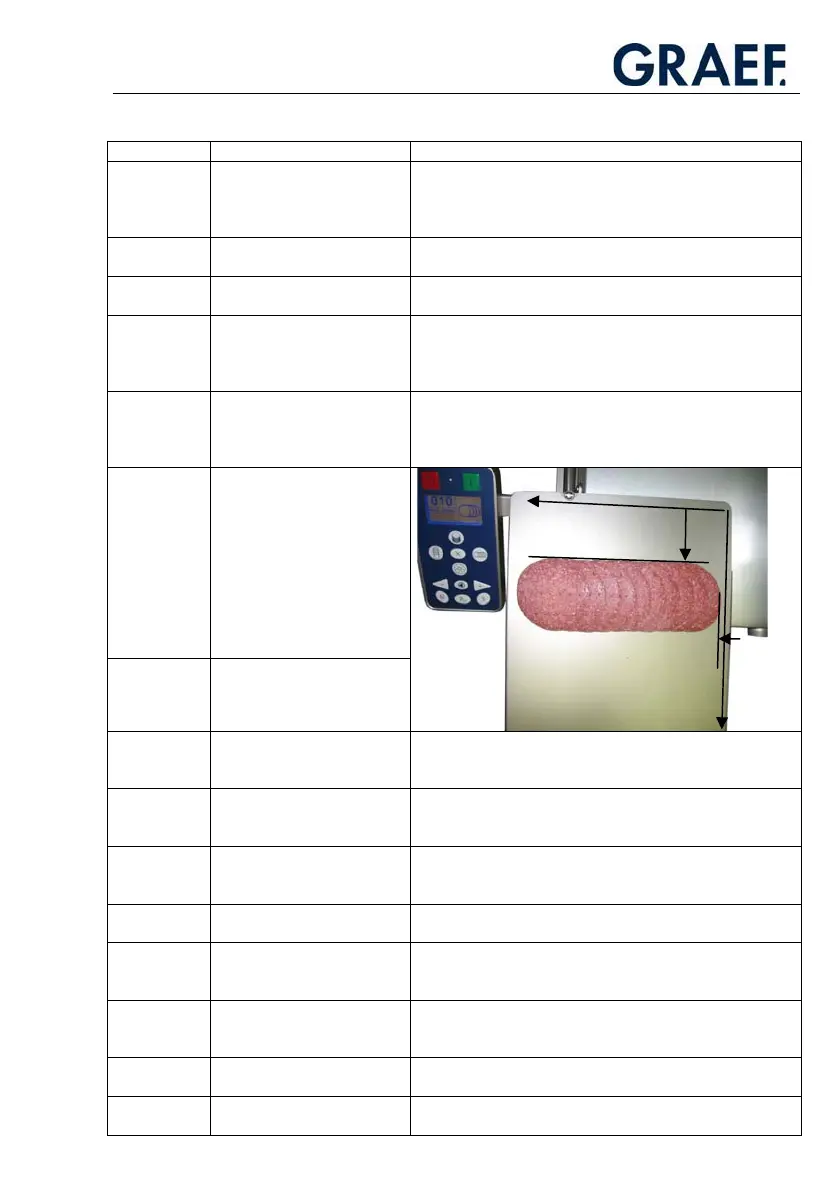

X start
(X0)
Moves the initial placing point
in X-direction
Y start
(Y0)
Moves the initial placing point
in Y-direction
dist trans
(X-Delta)
Crosswise distance: distance
to the next stack in X
Stacking
Dist row
(X-Delta)
Row distance: distance to the
next row
Long shingling
Dist slice
(X-Delta)
Slice distance: distance to the
next slice
Cross shingling
dist lengt
(Y-Delta)
Lengthways distance: distance
to the next slice in Y
Stack mode
Dist slice
(Y-Delta)
Slice distance: distance to the
next slice
Long shingling
Dist row
(Y-Delta)
Row distance: distance to the
next row
Cross shingling
Str/min
(Speed)
Carriage speed in strokes /min
Thickn Indication of desired
thickness. It is indicated on
To enable the entry with the plus/minus buttons without
needing decimals, the value to be entered is multiplied by 10.
X
Y
Y start
X start
- shin
lin
