Grandstream Networks GRP2636

MPK LCD
The GRP2614/GRP2616 supports MPK LCD with 8 physical MPKs and 3 pages, allowing to configure up to 24 fully programmable phone
extensions to the phone.

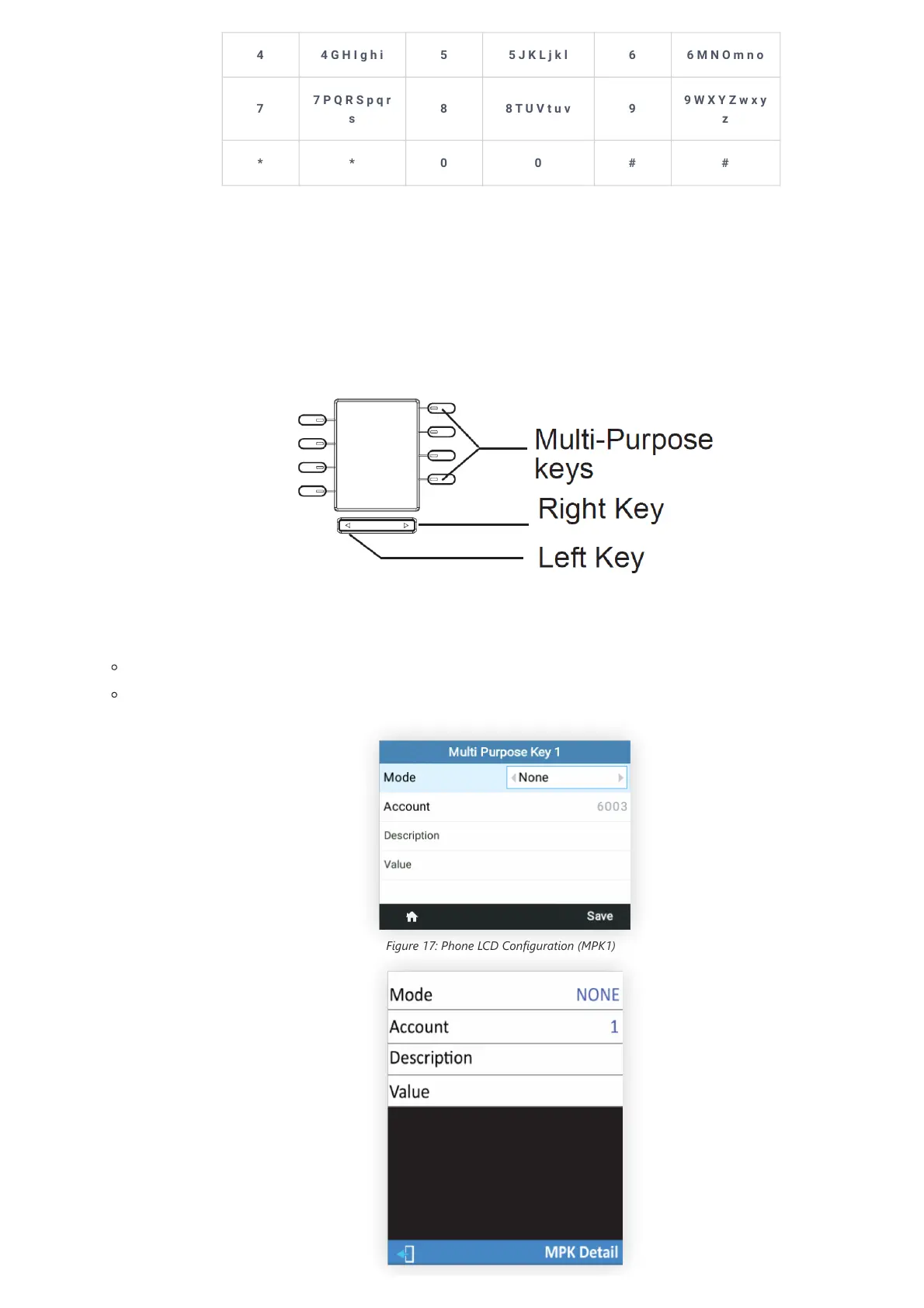

Figure 16: GRP2614 MPK LCD
The MPKs can be configured via:
Web GUI Settings 🡪 Programmable Keys 🡪 Physical Multi-Purpose Keys.
Or from the phone directly; by pressing and holding for 5 seconds the MPK button to configure. The phone LCD and MPK LCD will
display related settings as shown below:
Figure 17: Phone LCD Configuration (MPK1)
4 4 G H I g h i 5 5 J K L j k l 6 6 M N O m n o
7
7 P Q R S p q r
s
8 8 T U V t u v 9
9 W X Y Z w x y
z
* * 0 0 # #
Information:
MPK LCD is available on GRP2614 & GRP2616 only.
