Motion Detection Configuration Page (Set Alarm)
This page allows user to configure motion detection to trigger alarms:

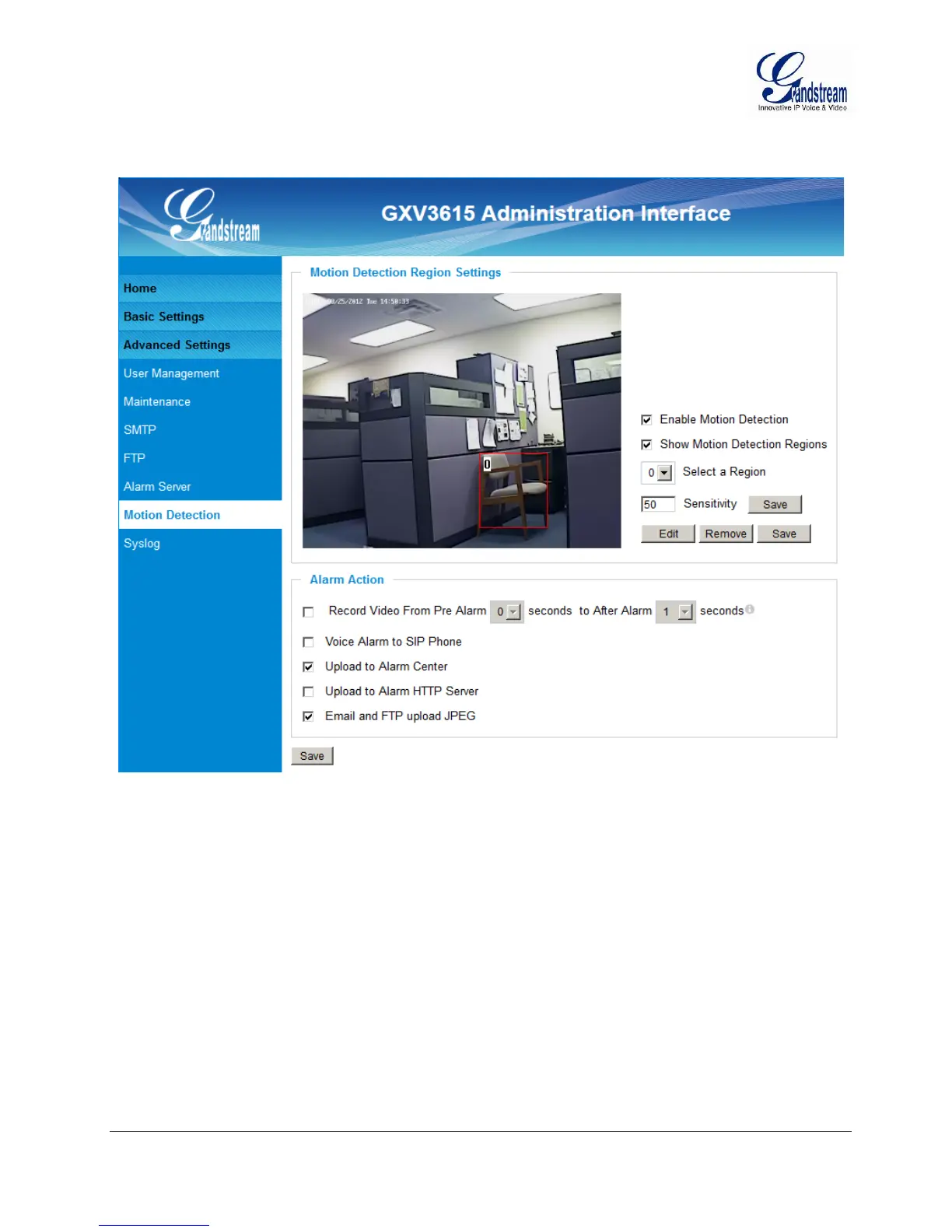

Figure 16-1: Motion Detection Configuration Page
• Enable Motion Detection: When checked, Motion Detection enabled.
• Show Motion Detection Regions: When checked, Motion Detection region with number will be
displayed in White Rectangle in the screen; when “Edit” clicked,
the Rectangle will become Red, as shown in Figure 16-1.
• Select a Region: Pull down to select and configure alarm region, altogether 16
alarm region available, from 0 to 15.
• Sensitivity: Select configured alarm region number, input number for
sensitivity to trigger alarm, 100 is the maximum sensible value.
Alarm Action:
• Record Video From….. Allow user to select how long pre/after Alarm trigger moment, the
video be captured.
• Voice Alarm to SIP Phone: When checked, a SIP alarm phone call will be made to pre-
configured number.
• Upload to Alarm Center: When checked, the alarm video will be transferred to Alarm
Center, like Grandstream free GSurf_Pro VMS software.
