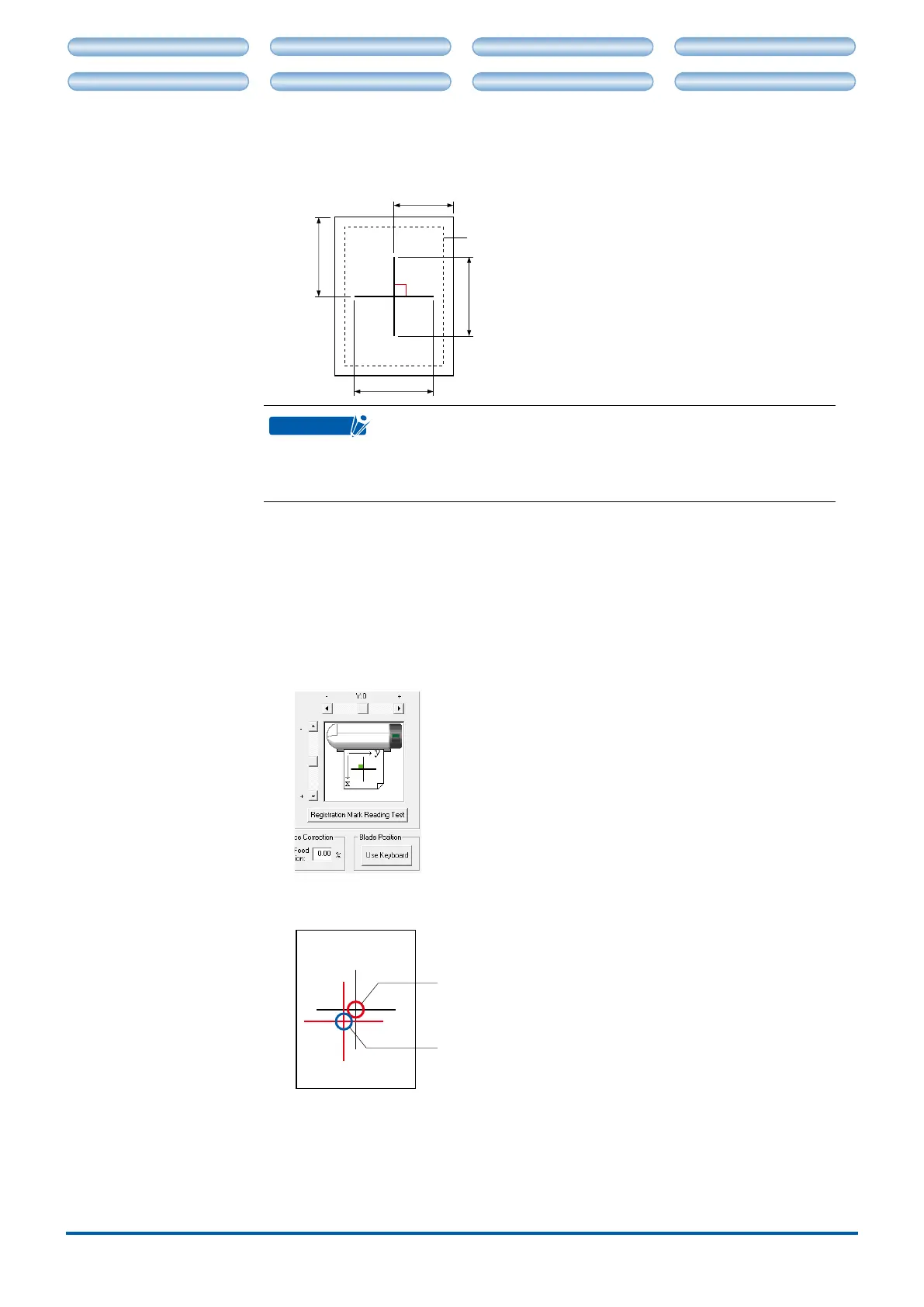

The sheet must be white, non-glossy, A4 size paper.
Draw a cross with black lines 0.5 to 1 mm thick and at least 4 cm in length. The
two lines must intersect each other at a right angle as shown below.
At a right angle
Right angle
As parallel as possible
Print area
4 cm
4 cm
Use a sheet of white, non-glossy, A4 size paper for the Registration
Mark Reading Test, and make sure that the blade plunger is mounted
in the Craft ROBO. Depending on the type of media that is being used,
the registration mark may not be read correctly. Wherever possible, use
a sheet of the actual media (paper, vinyl lm) that you plan to use.
(3) From the "Media Type" drop-down box of the Craft ROBO Controller, select
the parameter that corresponds to the media used in the "Registration Mark
Reading Test."
(4) Load the "RegistrationMarkReadingTestSheet" that you printed out from
ROBO Master or the sheet that you prepared yourself for the "Registration
Mark Reading Test" in the Craft ROBO. Next, open the "Calibration" window
and move the blade to the green square part of the diagram. Click [Use
Keyboard] in the "Blade Position" section of the Controller, and use the arrow
keys on the keyboard to move the blade.
(5) Click the [Registration Mark Reading Test] button. After the Craft ROBO has
read the printed cross, it will use the mounted blade to draw a cross.
Intersection point of the cross drawn on the
"Registration Mark Reading Test Sheet"
or the sheet you prepared yourself for the
"Registration Mark Reading Test"
Intersection point of the cross drawn
by the Craft ROBO
•
•
