5-16
5-17
Supplement
It will return to ARMS setting screen (2/4) without
changing the settings when you press the
POSITION (
◄
) key (CANCEL).
4

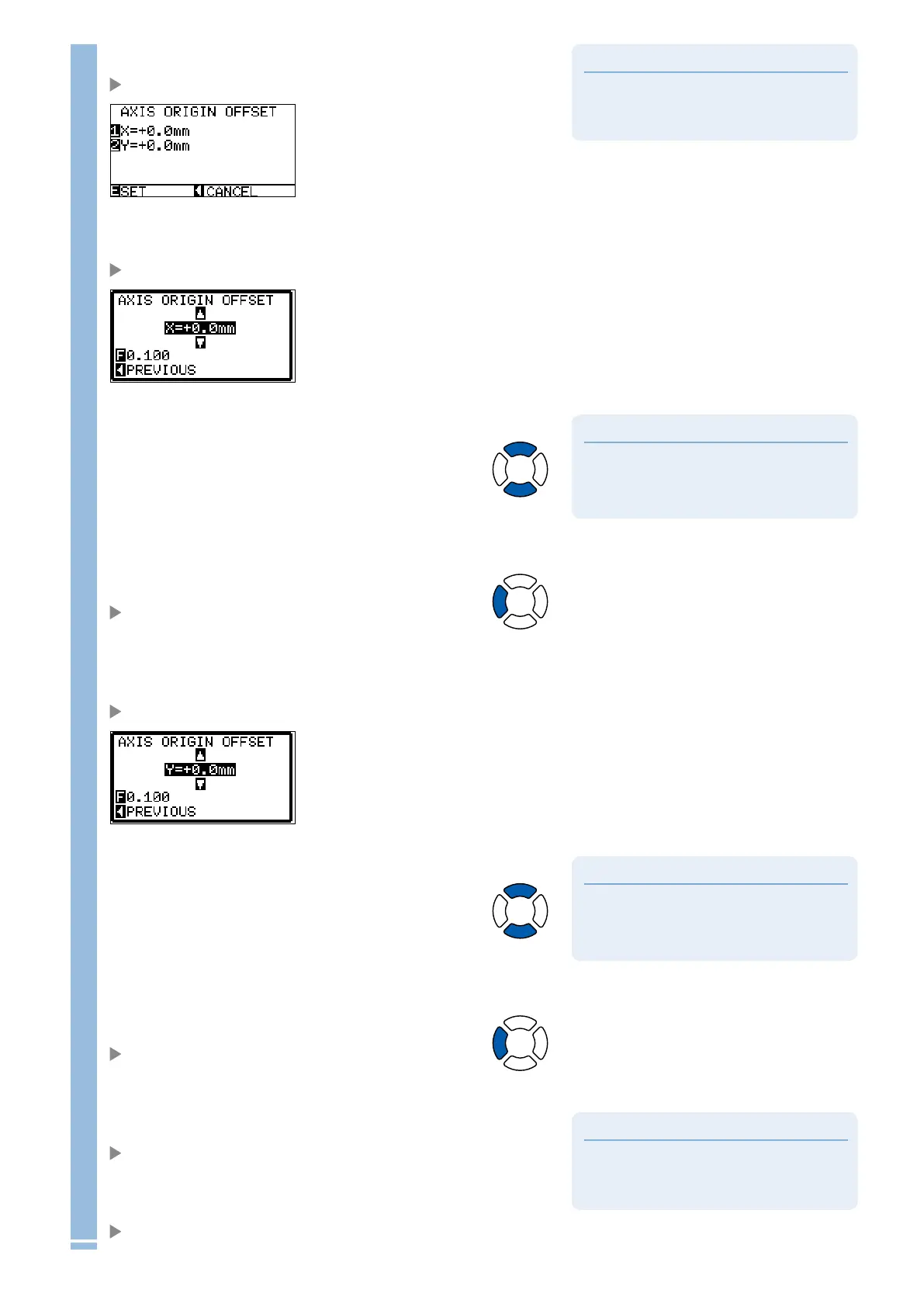

Press the [4] key (AXIS ORIGIN OFFSET).
AXIS ORIGIN OFFSET screen is displayed.
5
Press the [1] key (X).
X AXIS setting screen is displayed.
Supplement
Digits of settings can be changed by pressing
the [FAST] key.
Setting range is from -1000.0 to +1,000.0mm.
l
l
6
Press the POSITION (
▲▼
) key and increase or decrease the
setting value.
POSITION
7
Confirm the setting and press the POSITION (
◄
) key
(PREVIOUS).
POSITION
Offset value will be selected, and it will return to AXIS ORIGIN
OFFSET mode screen.
8
Press the [2] key (Y).
Y AXIS setting screen is displayed.
Supplement
Digits of settings can be changed by pressing
the [FAST] key.
Setting range is from -1,000.0 to +1,000.0mm.
l
l
9
Press the POSITION (
▲▼
) key and increase or decrease the
setting value.
POSITION
10
Confirm the setting and press the POSITION (
◄
) key
(PREVIOUS).
POSITION
Offset value will be selected, and it will return to AXIS ORIGIN
OFFSET mode screen.
Supplement
It will return to ARMS setting screen (2/4) without
changing the settings when you press the
POSITION (
◄
) key (CANCEL).
11
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to ARMS setting screen (2/4).
12
Press the [MENU] key.
It will return to default screen.
