Setting the Origin Point
3
Point where the cutting starts is called origin point. The origin point can be set at any location.
Supplement
For the front loading model, rotate the above
figure 180 degrees.

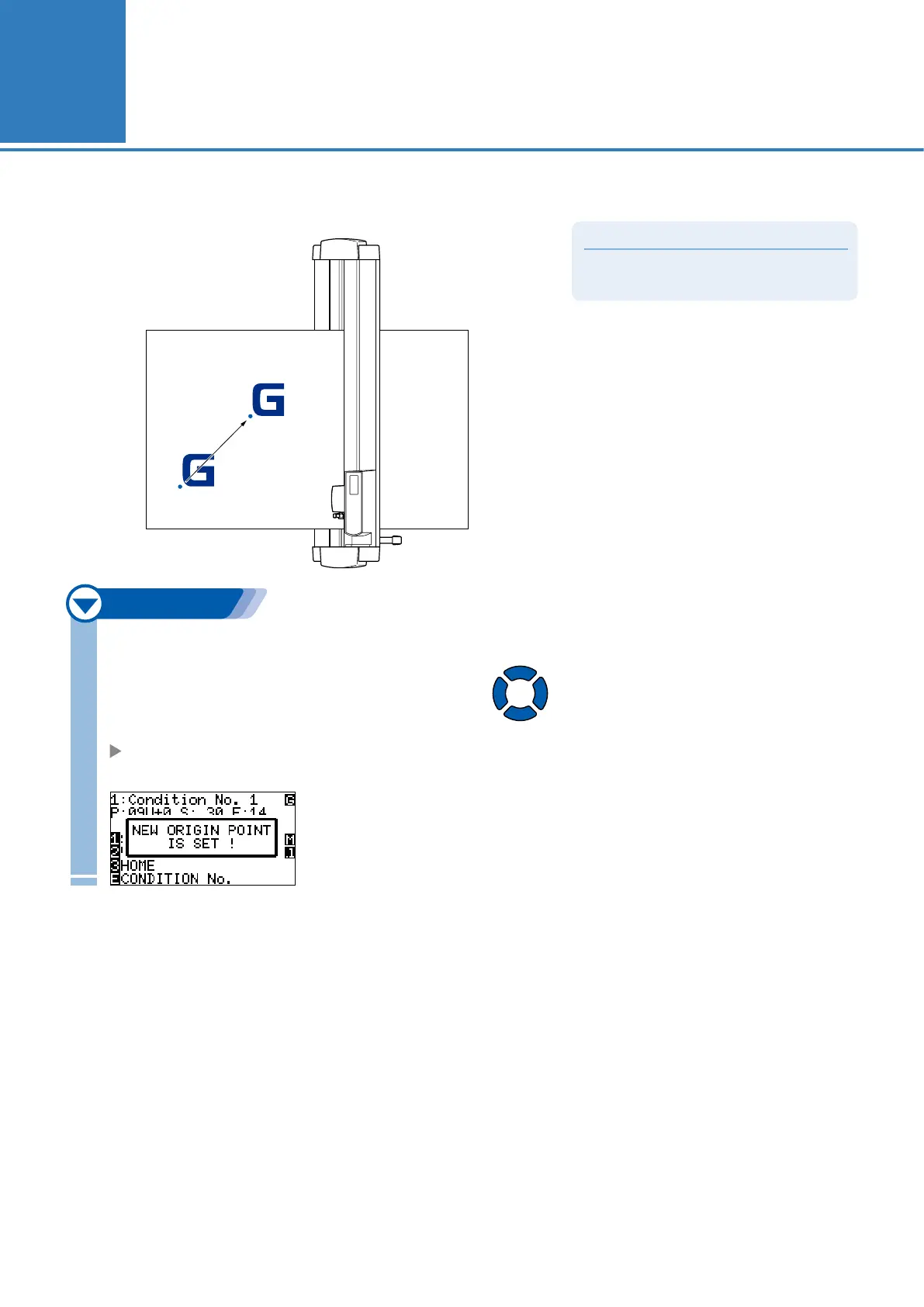

New origin
point
<For rear loading/sheet>
Original origin point
Operation
1
Move the tool to the new origin point by pressing the POSITION
(
▲▼◄►
) key when it is in READY status.
POSITION
2
Press the [ORIGIN] key.
New origin point is set, and "NEW ORIGIN POINT IS SET!" is
displayed for few seconds in the screen.
