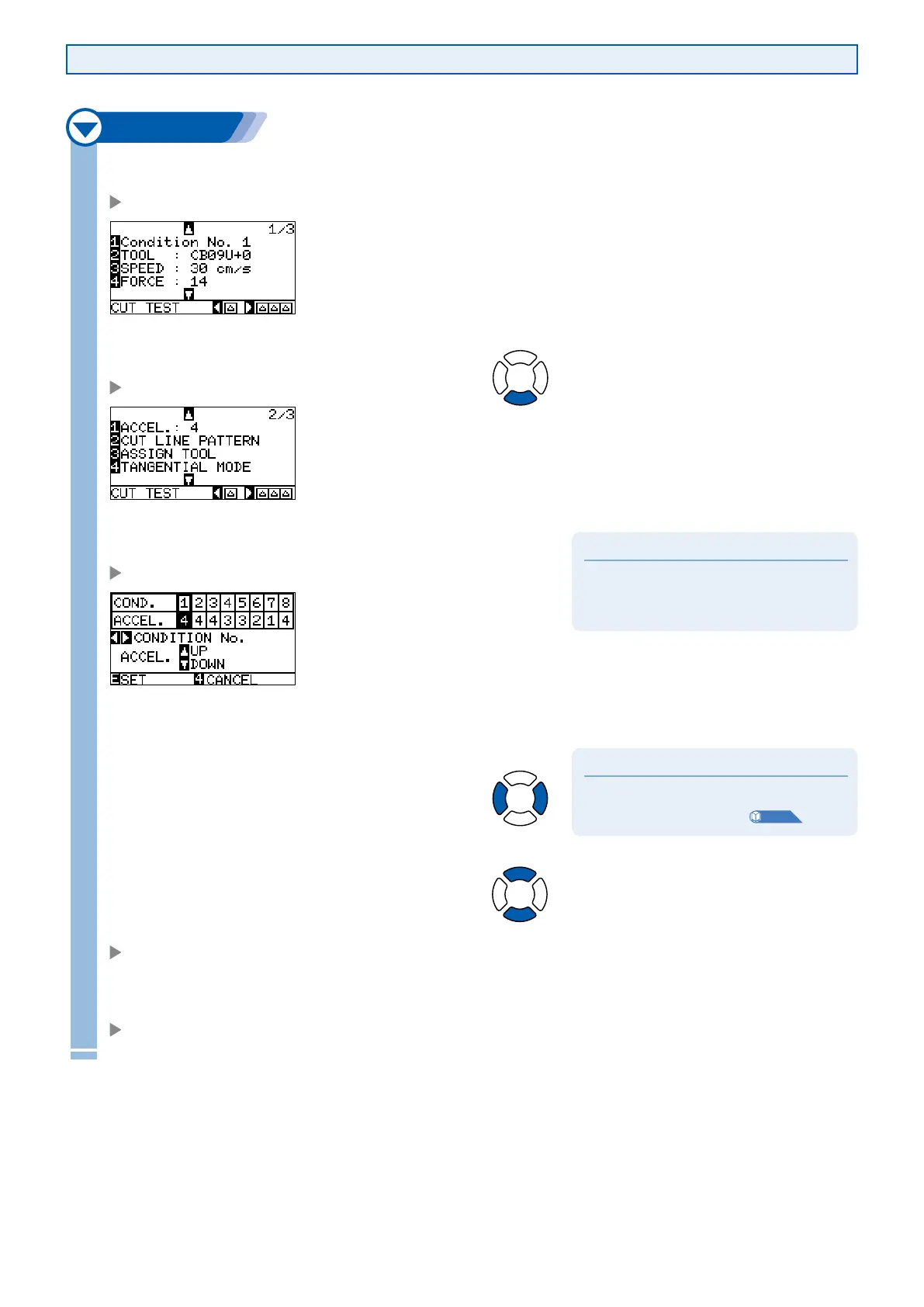

Setting the Acceleration
Set the acceleration of the tool that is used in each of the tool condition numbers. (Setting range: 1 to 8)
Operation
1
Press the [CONDITION] key in the default screen.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION (
▼
) key.
POSITION
CONDITION setting screen (2/3) is displayed.
Supplement
It will return to CONDITION screen (2/3) without
changing the settings when you press the [4] key
(CANCEL).
3
Press the [1] key (ACCEL.).
ACCEL setting screen is displayed.
* Display may vary depending on the selected tool condition number.
Supplement
Guideline to set acceleration
See "Setting the Tool Condition"
P.2-25
.
4
Press the POSITION (
◄►
) key and select the tool condition
number (CONDITION No.).
POSITION
5
Press the POSITION (
▲▼
) key and increase or decrease the
setting value.
POSITION
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION screen (2/3).
7
Press the [CONDITION] key.
It will return to the default screen.
