Supplement
It will return to INTERFACE setting screen (2/3)
without changing the settings when you press the
POSITION (
◄
) key (CANCEL).
4

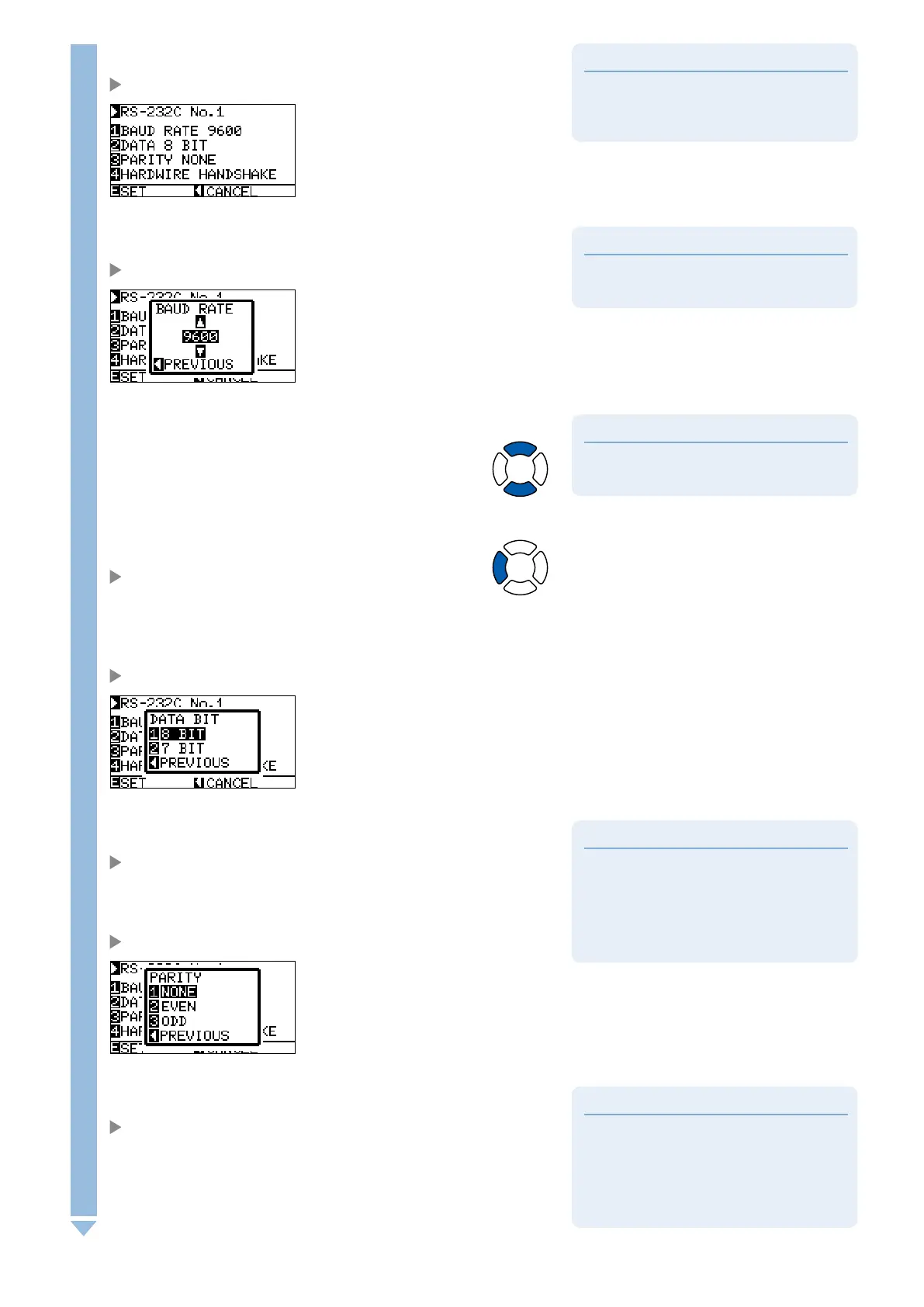

Press the [1] key (RS-232C).
RS-232C setting screen is displayed.
5
Press the [1] key (BAUD RATE).
BAUD RATE setting screen is displayed.
Supplement
Match the setting value of the application to be
used.
6
Press the POSITION (
▲▼
) key and increase or decrease the
setting value.
POSITION
7
Confirm the setting and press the POSITION (
◄
) key
(PREVIOUS).
POSITION
BAUD RATE will be set, and it will return to RS-232C setting
screen (2/3).
8
Press the [2] key (DATA BIT).
DATA BIT setting screen is displayed.
Supplement
Match the setting value of the application to be
used.
It will return to RS-232C setting screen
without changing the settings when you press
POSITION (
◄
) key (PREVIOUS).
l
l
9
Press the [1] key (8 BIT) or the [2] key (7 BIT).
DATA will be set, and it will return to RS-232C setting screen (2/3).
10
Press the [3] key (PARITY).
PARITY setting screen is displayed.
Supplement
Match the setting value of the application to be
used.
It will return to RS-232C setting screen
without changing the settings when you press
POSITION (
◄
) key (PREVIOUS).
l
l
11
Press the [1] key (NONE), [2] key (EVEN), or the [3] key (ODD).
PARITY will be set, and it will return to RS-232C setting screen.
Supplement
Select BAUD RATE from 19200, 9600, 4800,
2400, 1200, 600, 300.
