Assemble the stand so that the front and rear
lengths of the base assembly are the same for
both the left and right stand sides.
1

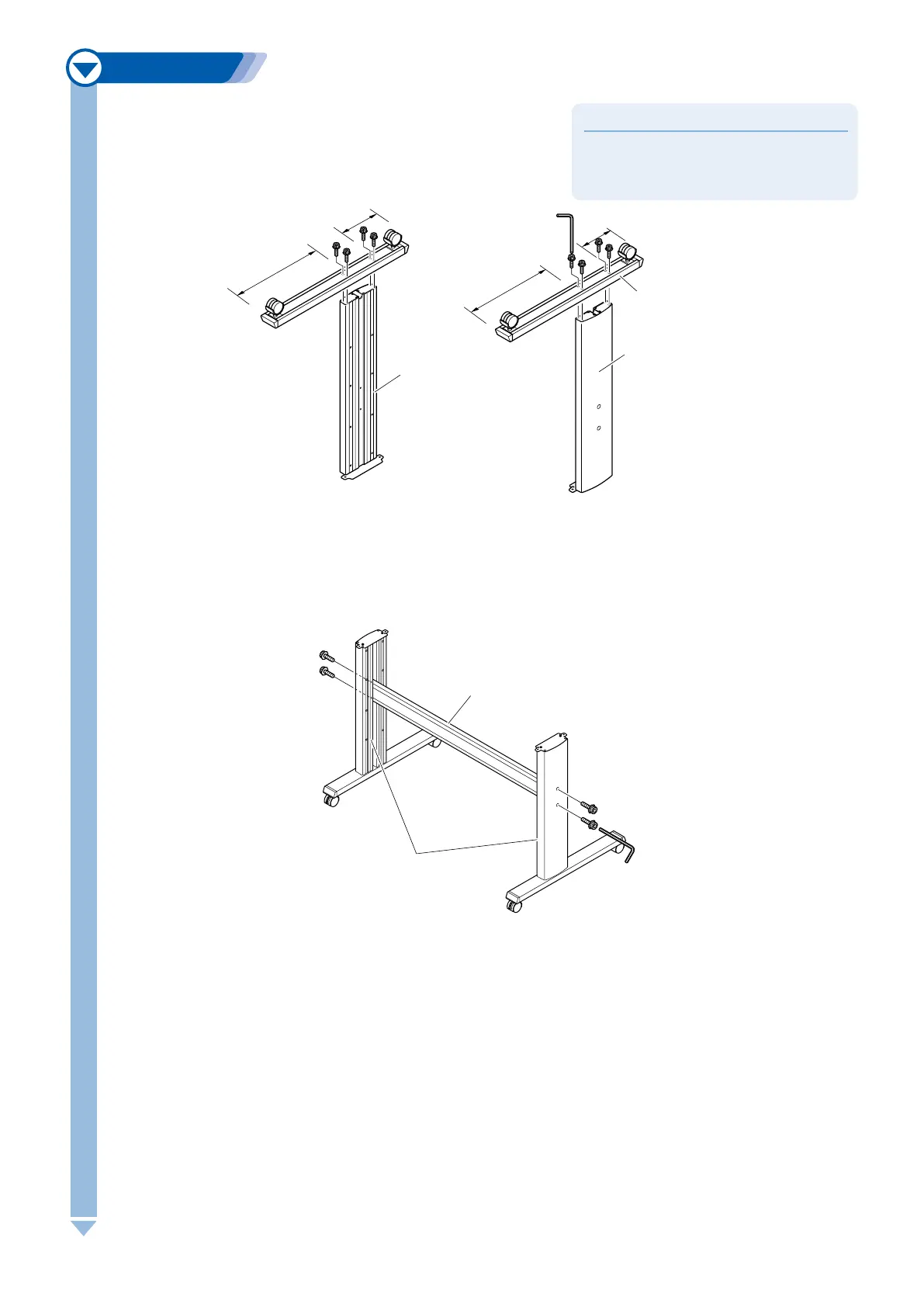

Assemble the left and right stand sides. Fasten a base assembly
to each of the stand side bars with four socket head cap screws
using the Allen wrench.
Socket head
cap screw
Stand side bar
Base
assembly
Stand side bar
2
Loosely fasten the center bar to the left and right stand sides
with four socket head cap screws (two on each side), using the
Allen wrench.
Center bar
Stand sides
Socket head
cap screw
Socket head
cap screw
Long
Long
Short
Short
To Next Page
