Press the POSITION (
▼
) key.

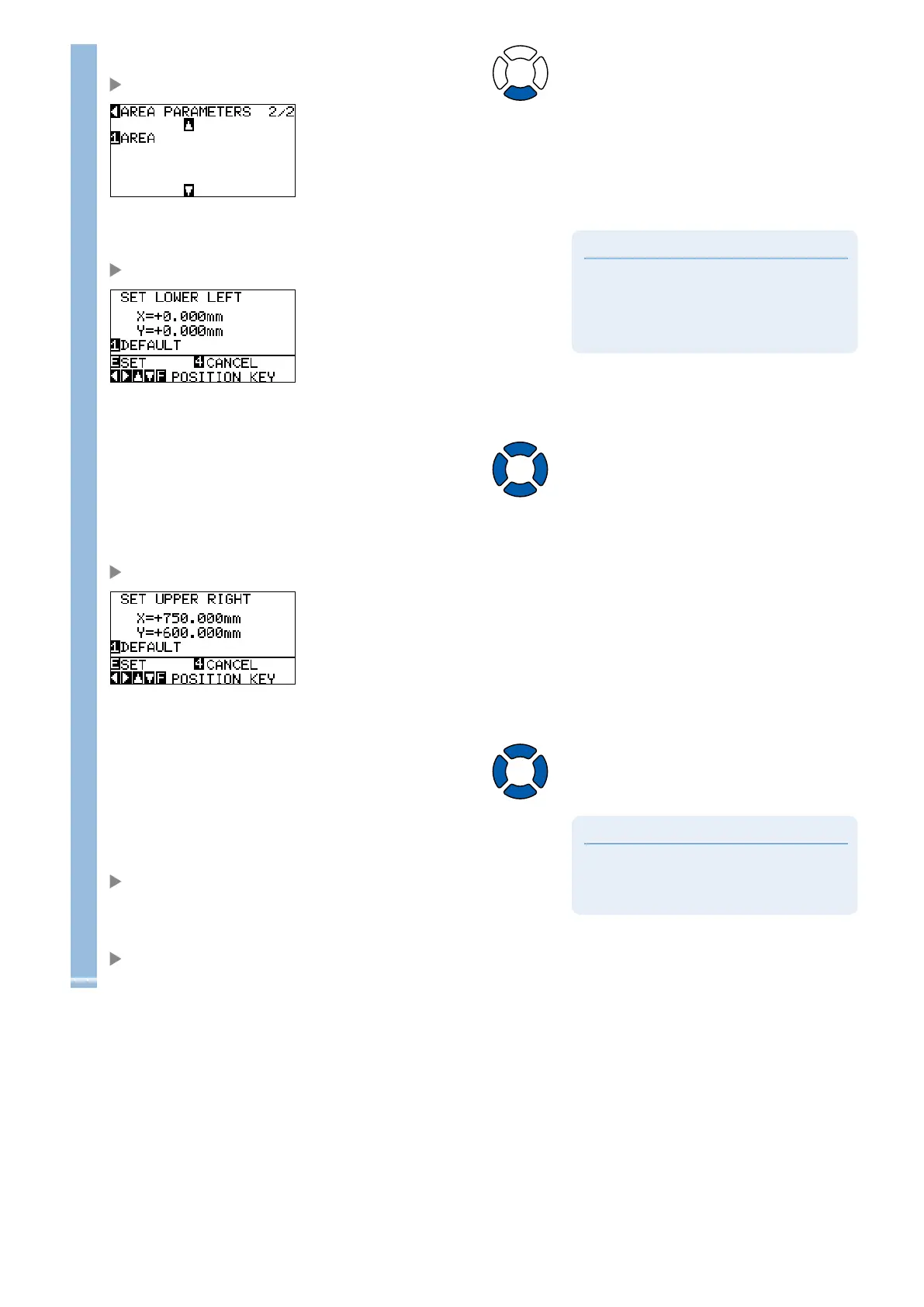

AREA PARAMETERS setting screen (2/2) is displayed.
Supplement
Coordinate value displayed here is the distance
to the tool carriage from the origin point.
Press [1] key (DEFAULT) if the cutting are is not
to change.
l
l
4
Press the [1] key (AREA).
LOWER LEFT setting screen is displayed.
5
Press the POSITION (
▲▼◄►
) key and move the tool carriage
to the position to be the lower left of the AREA.
6
Press the [ENTER] key (SET) once the tool carriage is in
correct position.
Setting will be set, and UPPER RIGHT setting screen is displayed.
7
Press the POSITION (
▲▼◄►
) key and move the tool carriage
to the upper right position of the AREA.
Supplement
It will return to AREA parameter screen (2/2)
without changing the settings when you press the
[4] key (CANCEL).
8
Press the [ENTER] key (SET) once the tool carriage is in
correct position.
Setting will be set, and it will return to AREA parameter screen (2/2).
9
Press the [MENU] key.
It will return to default screen.
