Checks and Preparation
2-3

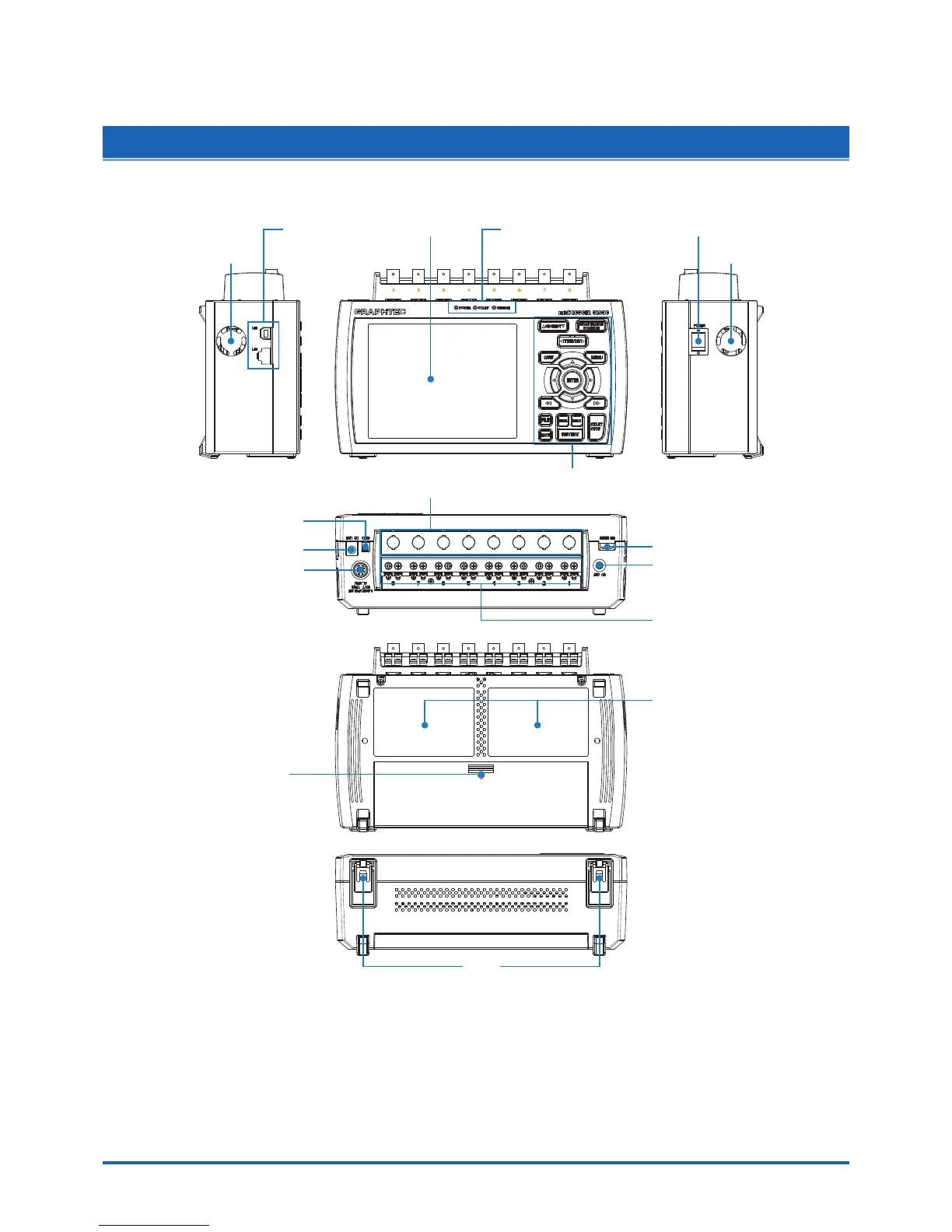

2.3 GL900 Part Names and Functions
This section describes the names and function of parts of the GL900.
PC interface terminals
• USB
• LAN
Monitor
Fan Fan
Power switchOperation status LED
• POWER : ON when the power is ON
• START : ON during data capture
• CHARGE : ON while the battery is charging
Control panel keys
AC adapter jack
External input/output terminal
• LOGIC/PULSE : LOGIC/PULSE input
• EXT TRIG : Trigger input
• ALARM : Alarm output
Power jack for
humidity sensor
GND terminal
Analog signal input BNC connector
Analog signal input terminals
USB memory terminal
Battery cover
Contains battery packs
(B-517: Option) sold separatel.
Stands
Before using the stands, read the precautions provided in Section 1.3 "Operating Environment".
Model imprint and others
