Kahuna
Installation Manual

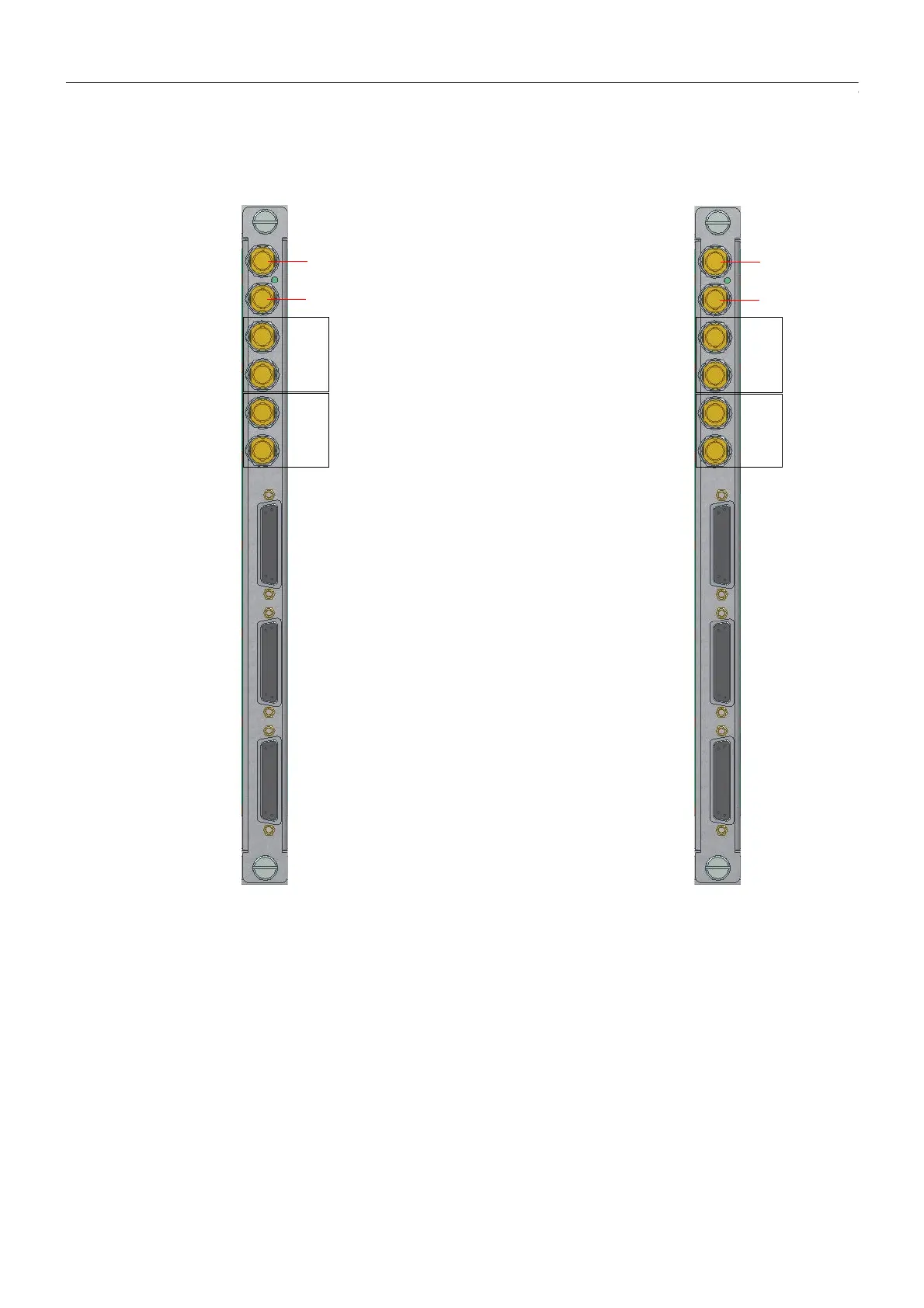

Reference Fin
Reference Fin - Sync and Reference Input/Outputs
The information below references the Sync and Reference inputs/outputs:
S1 - this is Sync output 1: analogue sync output. Compatible with any video standard with the
current frame rate.
S2 - this is Sync output 2: as above, and is an independent output.
R1 - Reference input 1, this has 2 BNCs, and is a Loop through analogue reference input
R2 - Reference input 2, this has 2 BNCs, and is a Loop through analogue reference input
Fin REF A
Fin REF B
S1
S2
R1
R2
GPI 1 - 24
GPI 25 - 48
GPO 1 - 12
S1
S2
R1
R2
GPI 1 - 24
GPI 25 - 48
GPO 1 - 12
