Installation

128 Planning and Installation Manual

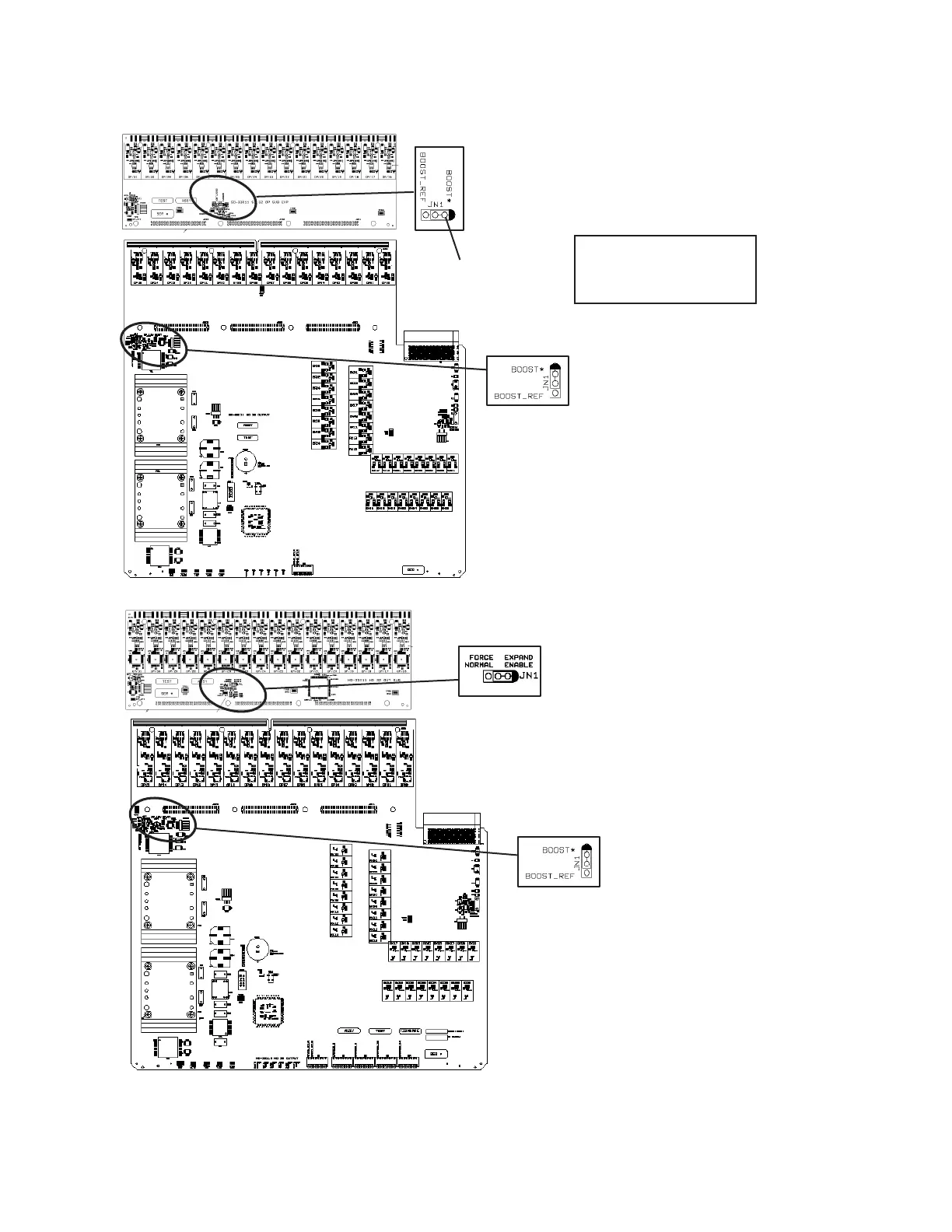

Figure 65. Location of gain jumpers on SO-33110/33011 and HO-33110/33011 output boards.

SO-33011 MEZZANINE (UPPER NUMBERS)

SO-33110 BASE (LOWER NUMBERS)

HO-33011 MEZZANINE (UPPER NUMBERS)

Pin 1

HO-33110 BASE (LOWER NUMBERS)

Note labelling error:

"BOOST*" = Expand Enable

"BOOST_REF" = Force Normal
