Trinix Frame
Planning and Installation Manual 39
With the DV-33512 chassis, the SR-33500 Sync/OPM board provides
four monitoring ports.
For configurations that require multiple chassis, the monitor signals are
brought through a PE-33016 Port Expander used as a combiner (see
page 59).
Signal Flow
Trinix is a “three-board” routing system, where the input board, output
board, and matrix board are the basic modules.
Shown below is the signal flow through a 128 x 128 routing system.
Inputs are received and outputs are delivered to the rear of the chassis
directly with a connection to the rear panels (no cabling).

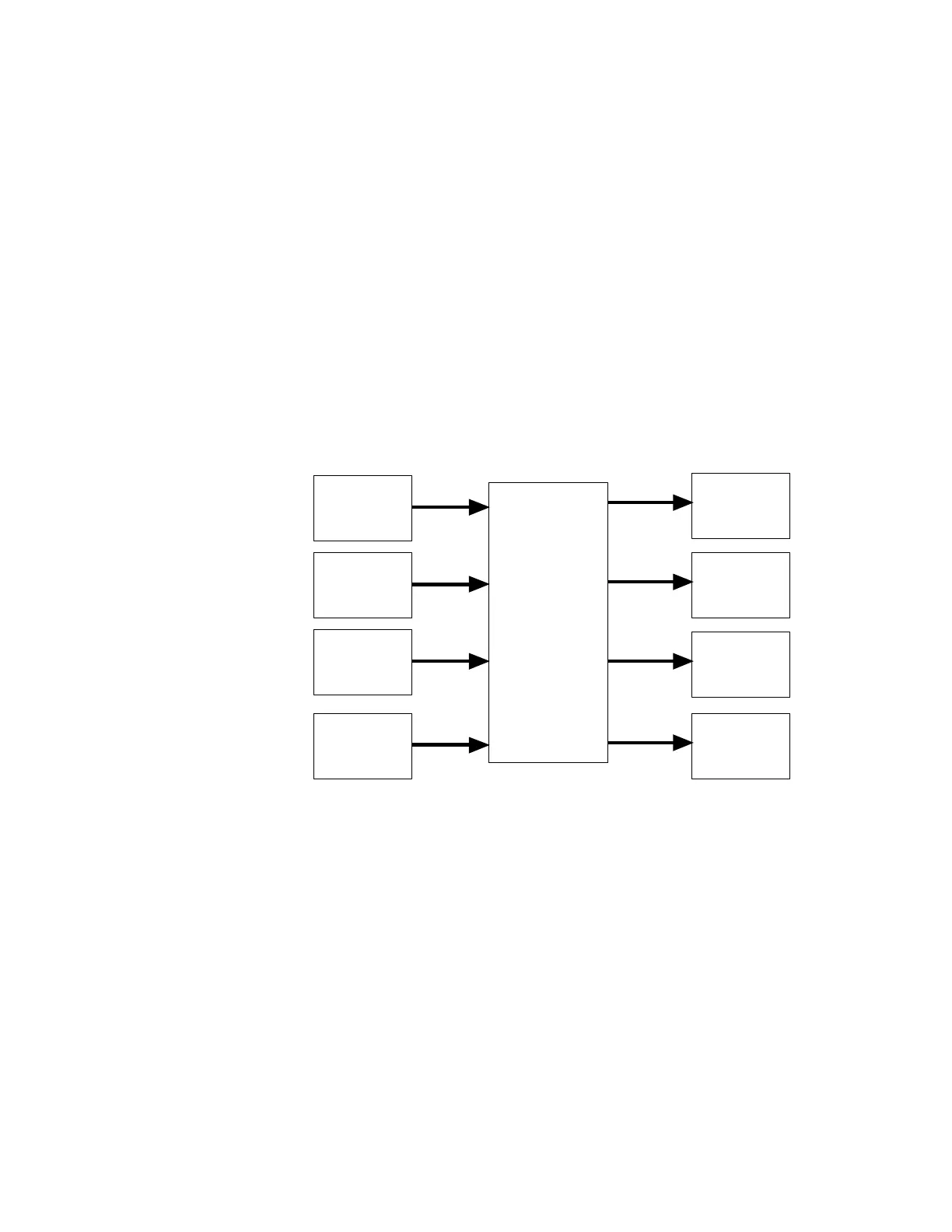

Figure 11. Input and output routing through matrix board for 128 x 128 switcher.
For a description of the various input, output, and matrix cards avail-
able for Trinix, see page 83.
32 Output
Card
Matrix Card
(128 x 128)
32 Output
Card
32 Output
Card
32 Output
Card
32 Input
Card
32 Input
Card
32 Input
Card
32 Input
Card
