Duplication and Expansion
Planning and Installation Manual 43
Duplication and Expansion
Trinix routers are designed to duplicate/expand inputs and outputs
using passive splitter/combiner expansion panels.
Note For Jupiter-controlled (0-based) systems, the input/output numbers in
the following discussion should be decreased by one (1). For example,
block 1-256 should be understood as block 0-255, etc.
Note Frame numbers are determined by the input/output blocks served by the
particular frame. E.g., for a DV-33256 router, inputs 1-256 and outputs
1-256 must be connected to frame zero. For more information about
frame numbering, see page 146.
Note Unused connectors should be terminated for optimum performance.
Output Duplication - Dual
The PE-33016 Port Expander is a passive, transformer-based module
that can be used to provide two copies of the same signal. Functionality
is bi-directional and depends on connections only; no configuration is
needed. Figure 13 and Figure 14 show a splitting application. Note that
the unused connectors should be terminated for optimum perfor-
mance.

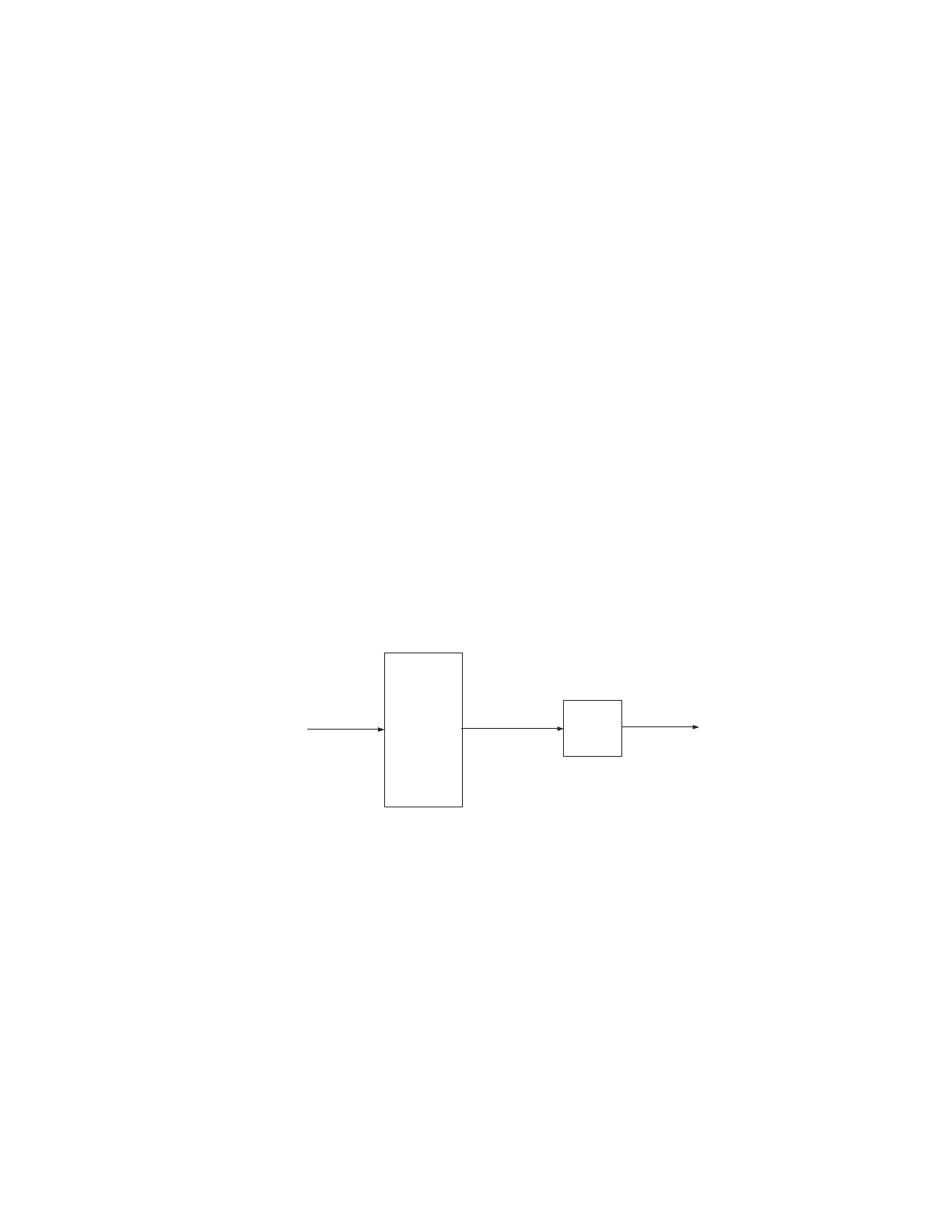

Figure 13.
Frame 0
Trinix
256 x 256
1 - 256
1 - 256
1 - 256
Dual outputs
16
PE 33016
used as
splitters
To Next Page
