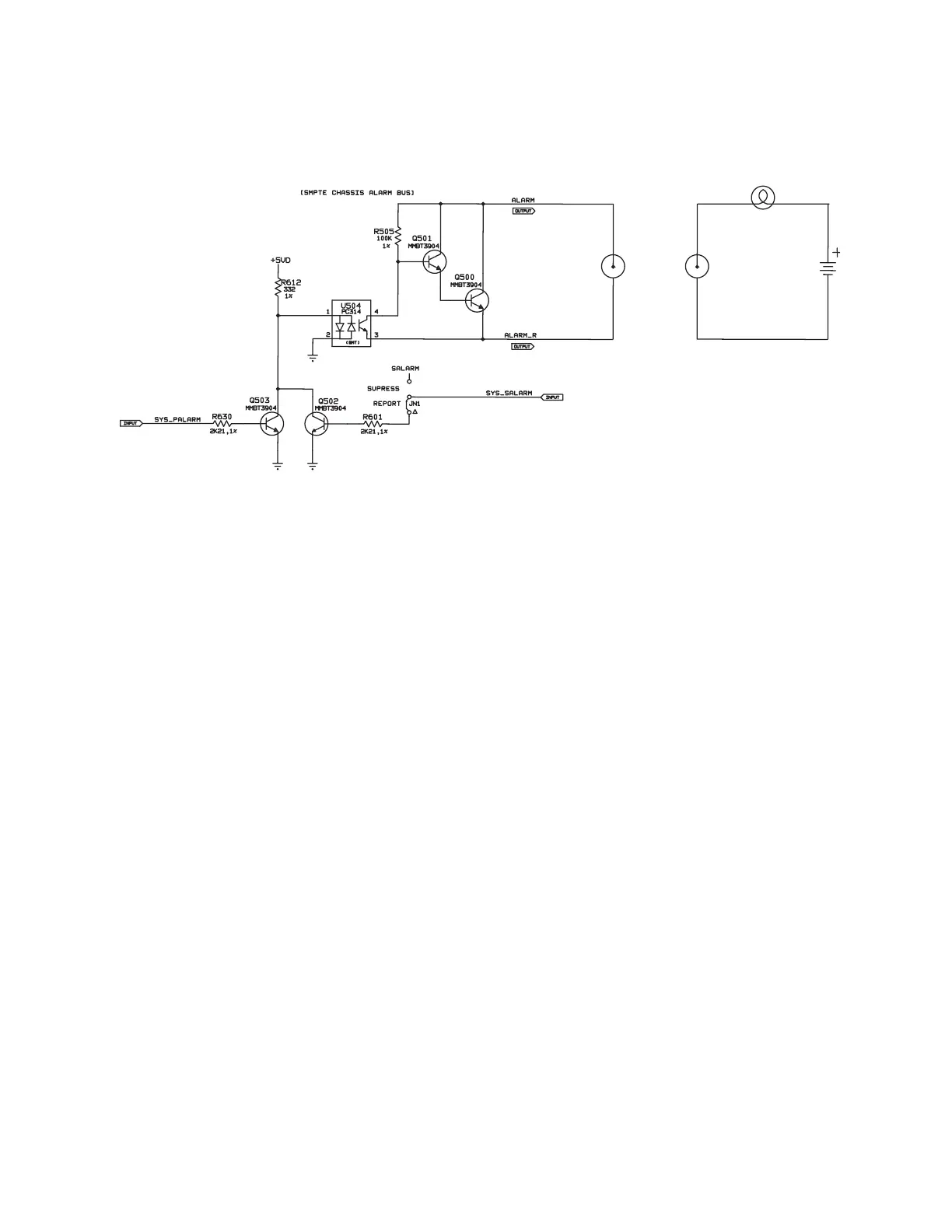

Figure 12. Rear panel master alarm circuit (left) and example of customer-supplied indicator
circuit (right)
.
All of the alarm and status information is also gathered by the Broad-
linx technology to make it available to the user via web pages. For more
information, see page 22.
EXTERNAL CIRCUIT
(EXAMPLE)
NOT TO EXCEED
24 VDC @ 20 mA
