GRASS VALLEY Trinix User Manual

Installation
150 Planning and Installation Manual

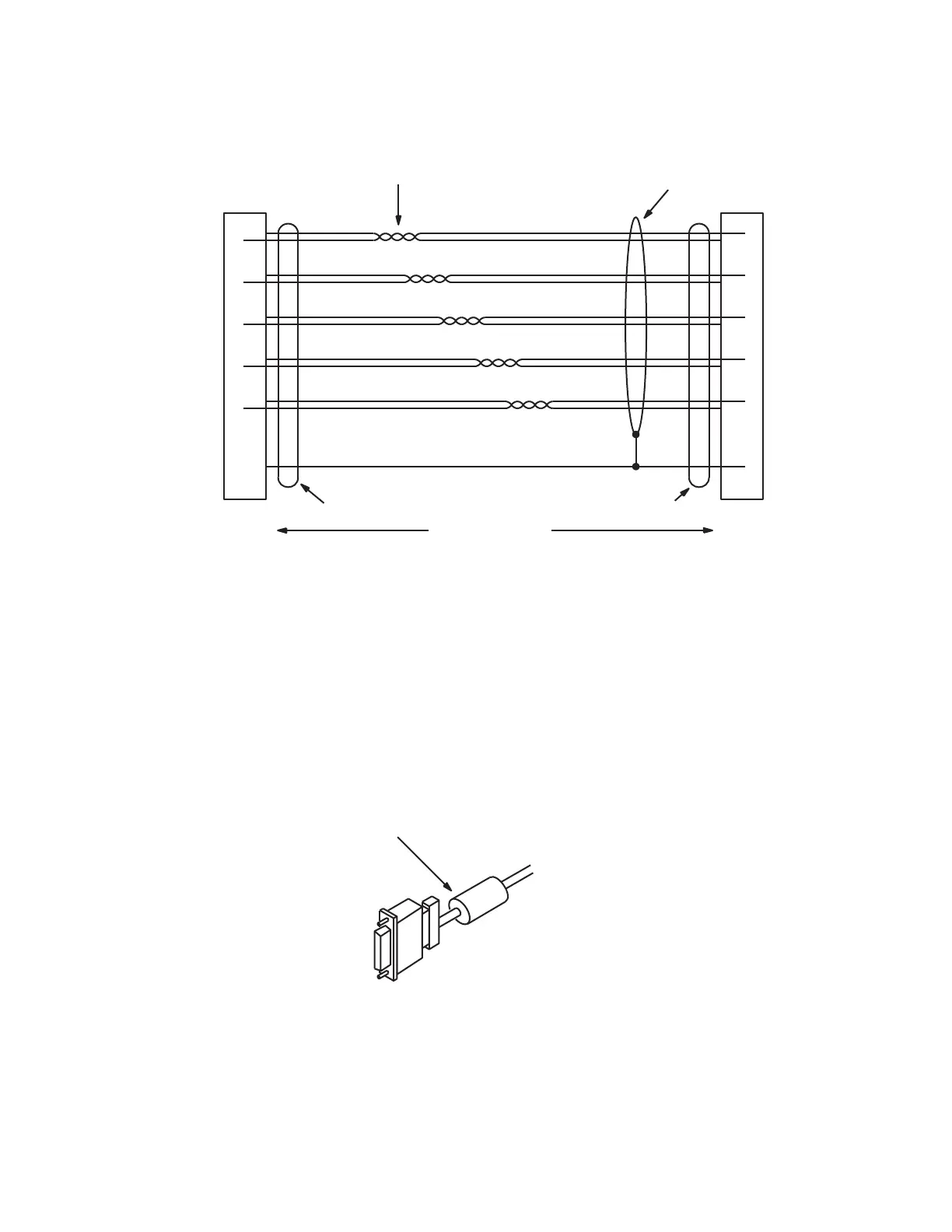

Figure 81. CC-2010 wiring. Reference: Assembly, CC-2010 Matrix Cable,” Grass Valley
drawing no. 01-032707-TAB
VDE EMI/RFI modifications to matrix cables
User-supplied matrix cables for VDE installations require a ferrite core
over each end of the cable, adjacent to the connector.
Figure 82. Matrix cable VDE modifications.
1 1
8
P1
DB15P
(male)
Shield (drain)
P2
DB15P
(male)
Red
9
Black
2
Yellow
10
Black
3
Green
11
Black
4
Blue
12
Black
5
White
13
Black
8
2
3
4
5
9
10
11
12
13
Twisted pairs
50 ft ( 15.2 m) max
Ferrite core
Ferrite core
Shield
Red
Black
Yellow
Black
Green
Black
Blue
Black
White
Black
Reset
Data
Clock
Take
Confirm
Ground
Type 43 material
0.375 inch (9.53 mm) or larger inside diameter
0.95 inch (24.13 mm) length (or longer)
Type 43 material sources
Fair-Rite, part no. 2643625102
Fair-Rite Products Corp., P.O.Box J, Commercial Row,
Wallkill, NY 12589, USA; Tel. (914) 895-2055.
Chomerics, part no. 83-10-A637-1000
Chomerics Inc., 77 Dragon Ct., Woburn, MA 01888
USA; Tel. (617) 935-4850.
