GRASS VALLEY Trinix User Manual

Duplication and Expansion
Planning and Installation Manual 59
Monitoring with Expanded Systems
In expanded systems, output monitor signals must be brought through
a combiner. An example of an output-expanded system in shown in
Figure 30; an input-expanded system is shown in Figure 31.
Note Output monitoring is not available for input-expanded systems con-
trolled by an SR-33000 Sync/OPM board.

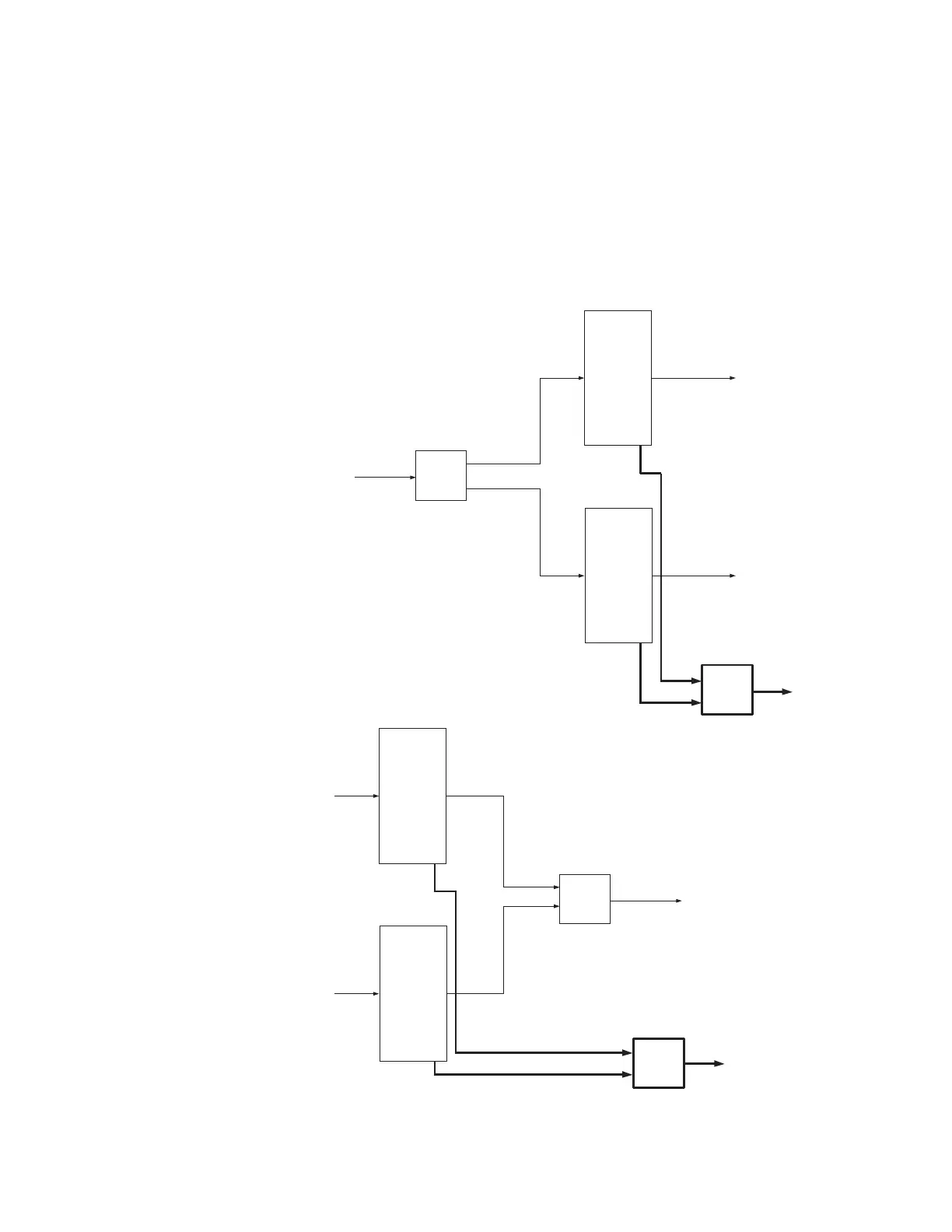

Figure 30. Monitoring with output-expanded system.
Figure 31. Monitoring with input-expanded system.
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512
1 - 256
1 - 256
PE-33016s
used as
splitters
PE-33016
used as
combiner
Output monitor video
Output monitor video
QC station
Trinix
Frame 2
256 x 256
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512
257-512
1 - 256
PE-33016s
32
used as
combiners
PE-33016
used as
combiner
Dual outputs
Output monitor video
QC station
Trinix
Frame 1
256 x 256
