GRASS VALLEY Trinix User Manual

Installation
144 Planning and Installation Manual
Monitoring with Expanded Systems
In expanded systems, output monitor signals must be brought through
a combiner. An example of an output-expanded system in shown in
Figure 77; and input-expanded system in shown in Figure 78.

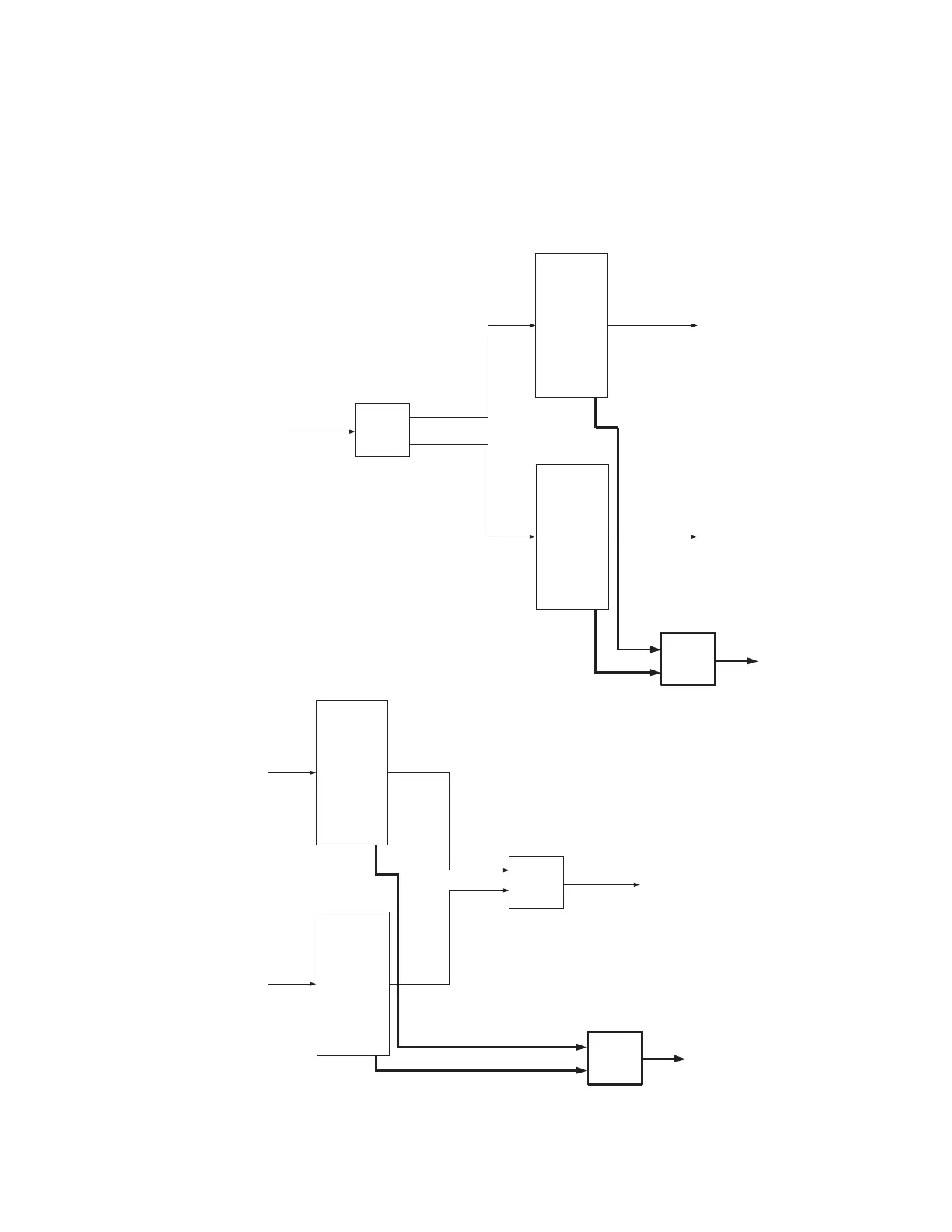

Figure 77. Monitoring with Output-expanded System.
Figure 78. Monitoring with Input-expanded System.
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512
1 - 256
1 - 256
PE-33016s
used as
splitters
PE-33016
used as
combiner
Output monitor video
Output monitor video
QC station
Trinix
Frame 2
256 x 256
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512
257-512
1 - 256
PE-33016s
32
used as
combiners
PE-33016
used as
combiner
Dual outputs
Output monitor video
QC station
Trinix
Frame 1
256 x 256
