Duplication and Expansion
Planning and Installation Manual 47

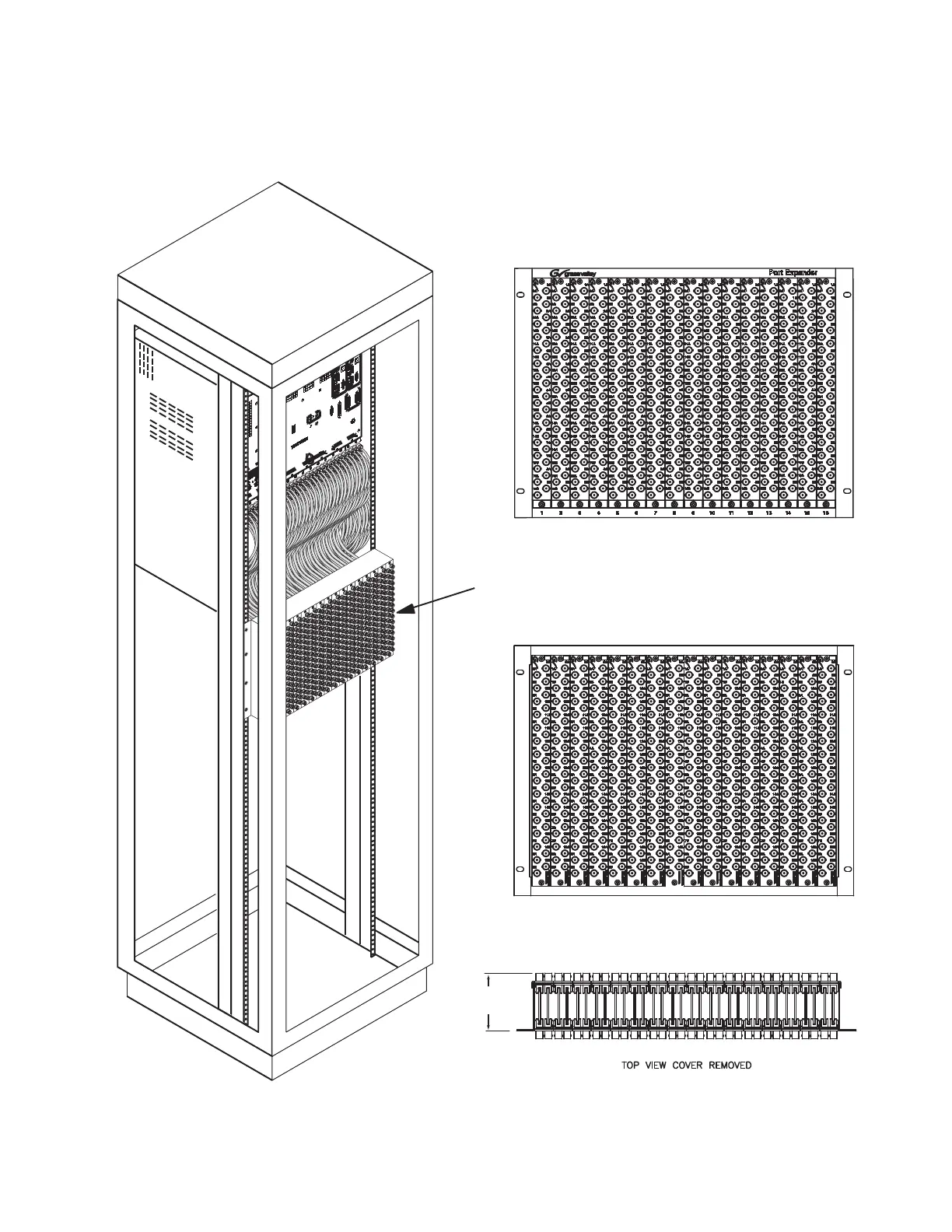

Figure 17. PE-33016 Port Expanders used to provide 256 dual outputs for 256 input switcher.
A
B
C
16 PE-30016 Expander
Modules in MK-33000
Mounting Kit
EXTERIOR
INTERIOR
3.25 in.
(82 mm)
