Closing step by step
1. Check if the upper and the lower part of the transmitter housing
are correctly coupled and the tiny cables are properly placed.
2. Screw the housing screws in their original position.
3. Reconnect the battery box.
1
2
2
3
3
4
3
4
3

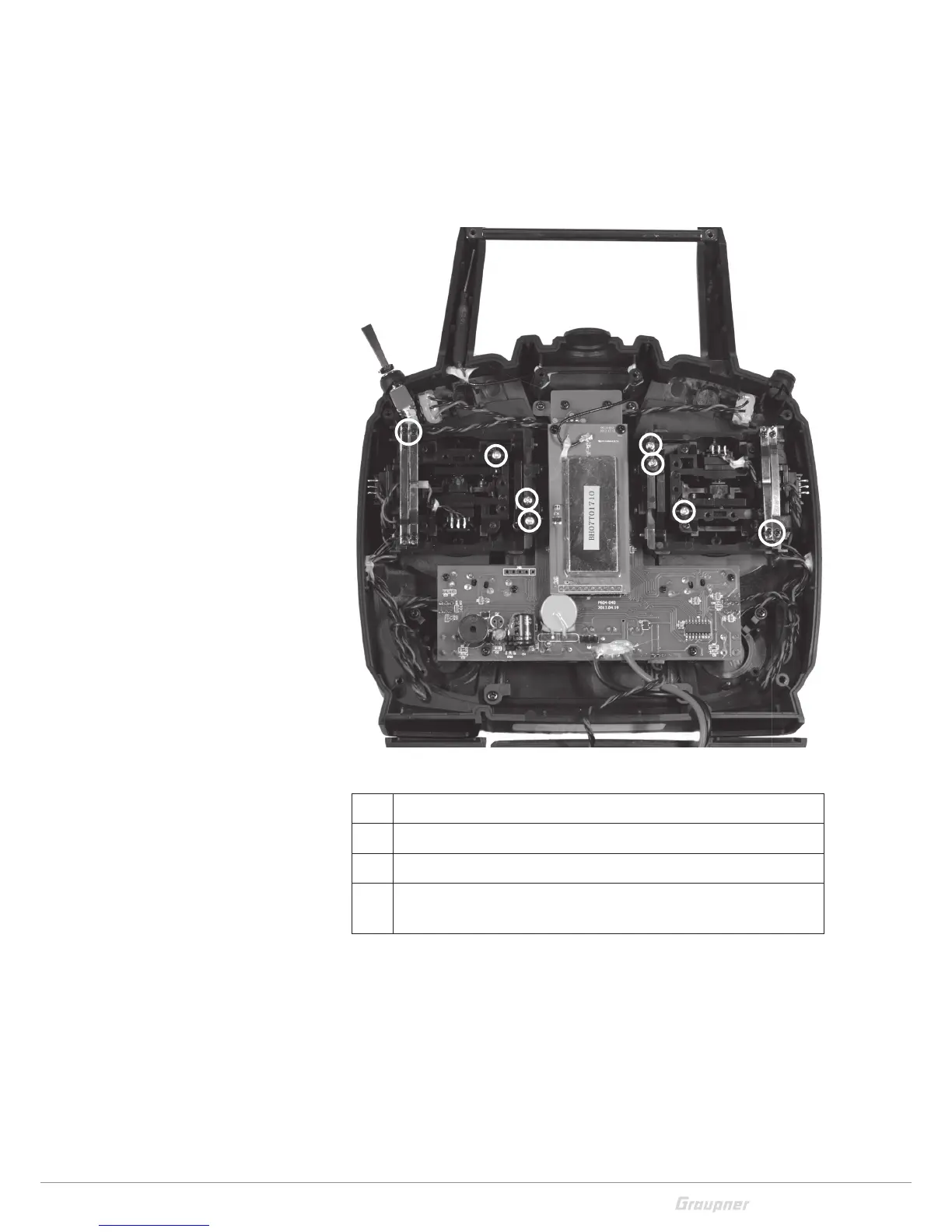

1 Transmitter antenna integrated in the handle
2 Adjust screws for brake spring (outer) and ratchet (inner)
3 Stick self centering force adjust screws
4
Screw to convert from neutralizing to non neutralizing and
vice versa
