18 / 48
S1042_sh_V1
Optional power supply with battery pack
Instead of batteries you can use rechargeable NiMH batteries. For
the recharge you can use the charging port located on the back of
the transmitter.
WARNING
Follow the safety instructions included with the batteries!

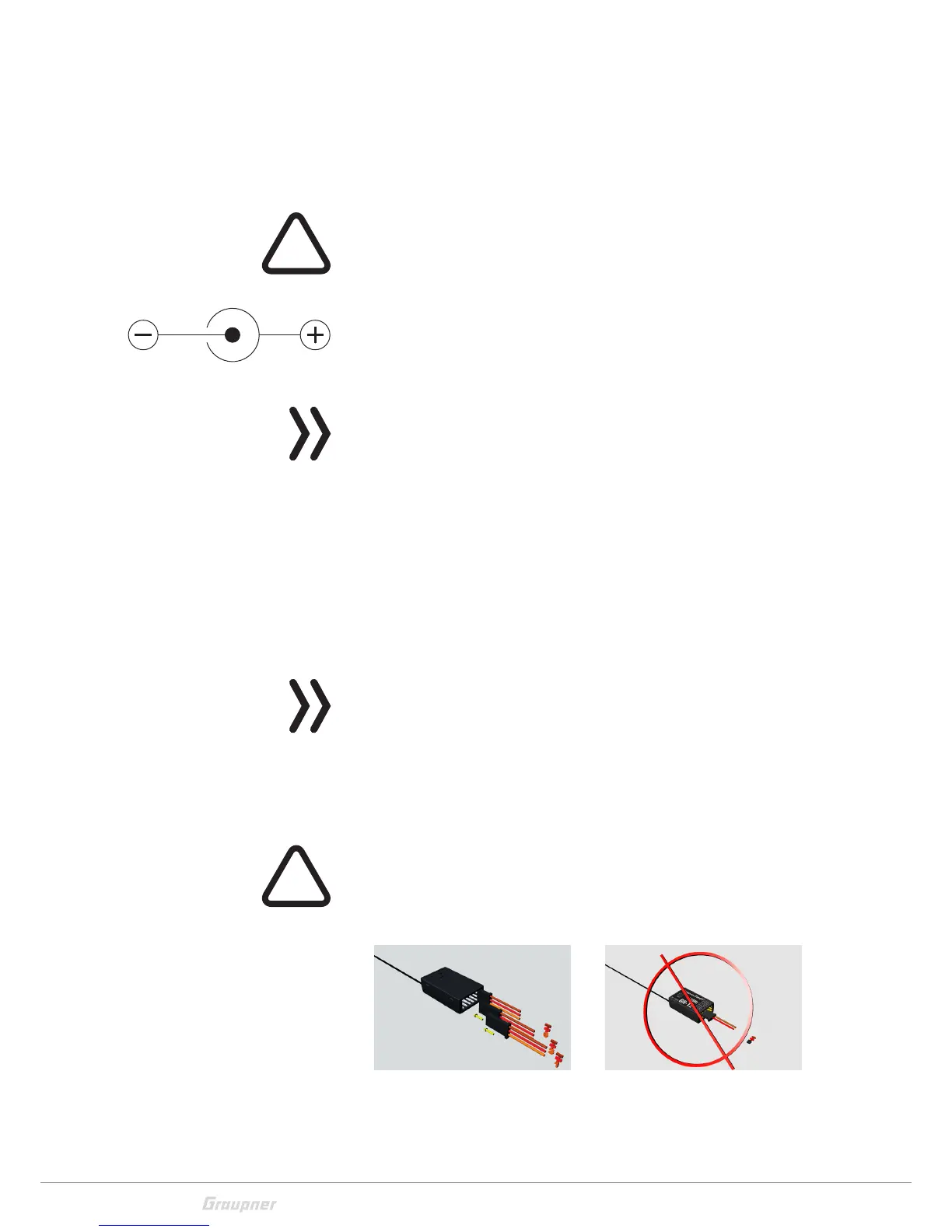

Polarity of the mz-10 HoTT charging socket
Make sure that the polarity of the charge cable is the same as the
charge port. The charge cables of other manufacturers have often
reversed polarity. For this reason, you should only use original
Graupner charging cable.
Note
The charging socket comes standard with a protection switch that
protects against polarity reversal. Original Graupner automatic
chargers recognize the battery charge. In order to prevent damage
to the protection switch and to the other components, charging
current should never exceed 1 A.
Receiver power supply
If not marked with "B", no specific port is provided for the battery
connection. We recommend that you connect the power supply to
the socket close to the servos already connected to the receiver.
Attention
When selecting and connecting a power supply, be aware that
although the operating range of the receiver ranges from 3.6 to 8.4
V. However, practically all of the previously marketed servos, speed
controllers, gyros, etc. as well as many which are offered today have
a permissible operating voltage range of 4.8 to 6 V.
