Transmitter preparation

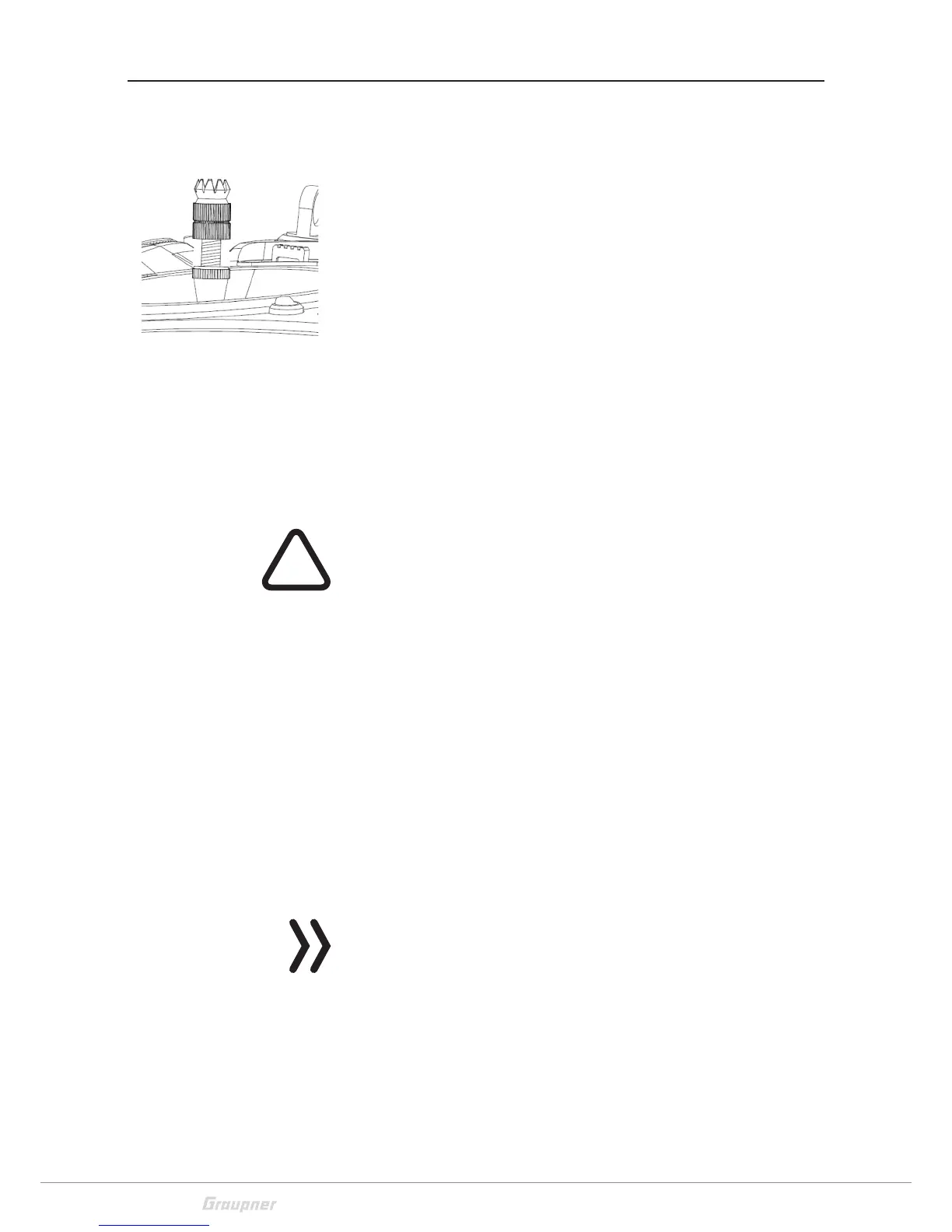

Adjusting the length of the control sticks
Length of both control stick can be adjusted. Hold down the bottom
half of the knurled grip, and loosen the screwed connection by turn-
ing the top part.
You can now lengthen or shorten the control stick by screwing it up
or down. Then clamp the top and bottom part of the grip by rotat-
ing them against each other.
Opening/closing the transmitter housing
The transmitter should be opened only in the following cases:
• If a self centering stick has to be converted in non self centering
• If a non self centering stick has to be converted in self centering
• To set the control stick centering force
CAUTION
Never switch the transmitter on while the housing is open. Risk of
short-circuit! Risk of fire! Remove the batteries or the recharge-
able battery pack before opening the transmitter case!
Open step by step
1. Before opening the housing switch the transmitter off.
2. Open the battery case.
3. Remove the battery box lifting it from one side and gently release
it from the Velcro-type tape.
4. Unplug the connector.
5. Unscrew the eight screws with a cross-screwdriver, see the rep-
resentation in the previous double-page.
6. Hold both housing halves with both hands and let the screws fall
on a proper surface turning the transmitter upside-down.
7. Rotate the lower half carefully and fold it to the bottom.
Note
Cables connect the lower half of the housing with the upper part
electronic components. This connection must not be damaged! Do
not touch the electronic boards.
