Receiver assignation
Attention
The servos must be connected to the receiver in the indicated
sequence. Outputs that are not required are not assigned.

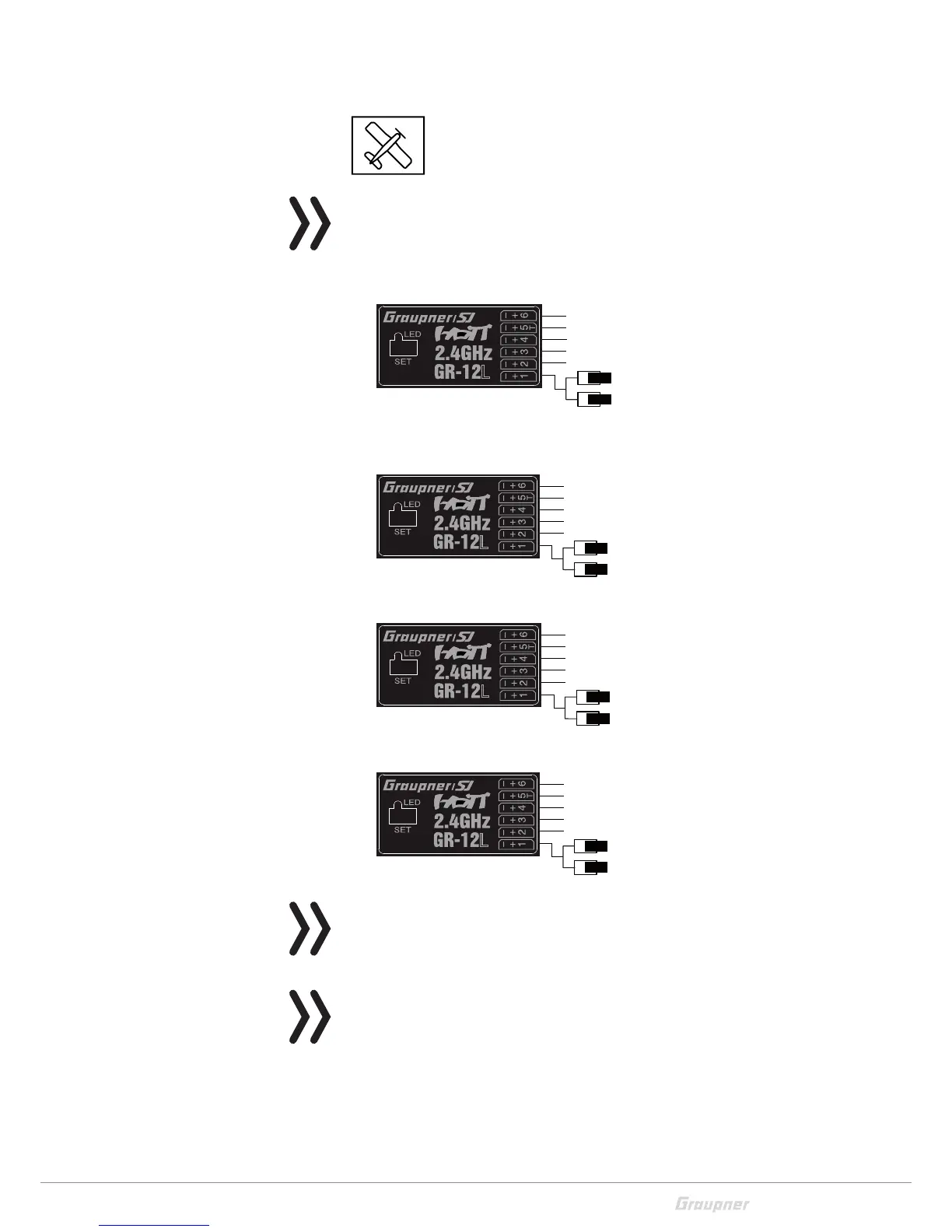

• Fixed wing model with or without motor and with 1 aileron servo
Rudder
Aileron
Elevator
Free or telemetry or special function
Free or receiver power supply
(Receiver power supply)**
Aerobrakes or motor servo
or electronic speed controller
L
No. S1012
• Fixed wing model with or without motor and with 2 aileron ser-
vos
Rudder
Left aileron
Elevator
Right aileron
Free or receiver power supply
(Receiver power supply)**
Aerobrakes or motor servo
or electronic speed controller
L
No. S1012
• Fixed wing model with or without motor and with V-tail
Right rudder/elevator
Aileron or left aileron
Left rudder/elevator
Right aileron or telemetry or special function
Free or receiver power supply
(Receiver power supply)**
Aerobrakes or motor servo
or electronic speed controller
L
No. S1012
• Delta/flying-wing models with and without motor
Free or rudder
Left aileron/elevator
Right aileron/elevator
Free or telemetry or special function
Free or receiver power supply
(Receiver power supply)**
Aerobrakes or motor servo
or electronic speed controller
L
No. S1012
Attention
Pay attention to the notes about connecting a power supply to the
receiver in the section "Receiver power supply".
Note
In the receiver it is possible to program mixers and other functions.
This programming is only possible using a HoTT transmitter with
display or an optional Smart-Box. This applies also for the connec-
tion of telemetry sensors to the receiver (CH5). Setting and display
of the data can only be performed using a Smart-Box or a HoTT
transmitter with display.
