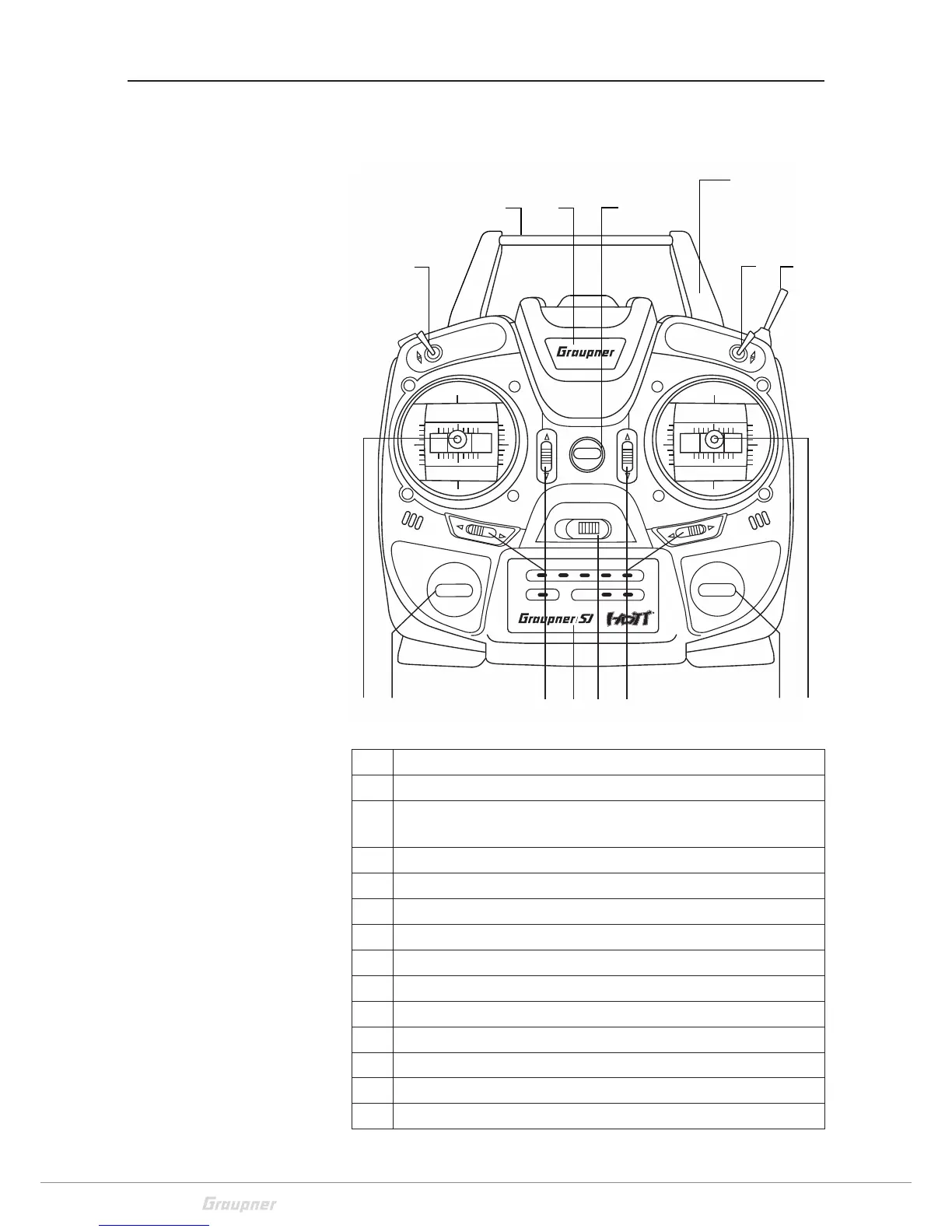

Description of the transmitter
Package content
mz-10
7
5
1
2
3
4
6
8
97
10
11
12
13 14
1 antenna integrated in the case
2 Eyelet for neck strap
3
D/R switch (switch function between 70 % and 100 % servo
travel of the control functions 2, 3 and 4)
4 TRAINER switch (see use mode)
5 Right-hand control stick
6 ARROW button
7 Trim
8 ON/OFF switch
9 LED indicators field
10 MODE button
11 Left-hand control stick
12 Control channel 5
13 Carrying handle
14 Central status LED

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
