However, do not aim directly at the model with the antenna inte-
grated into the right handle of the transmitter, but tilt the trans-
mitter downwards or turn to the side so that this handle is
approximately at right angles to the model during the test oper-
ation.
5. Make sure that the transmitter is in "NORMAL" use mode. Push
contemporaneously the left MODE and the right arrow keys until
the transmitter starts beeping quickly.
6. During the 90 seconds, walk away from the model and move the
sticks. If you notice an interruption in the connection at any time
within a distance of about 50 m, try to reproduce it.
7. If possible, switch on an existing motor, in order to additionally
check the interference resistance.
8. Move further away from the model until it does not respond per-
fectly any more.
9. At this location, wait for the remainder of the test period with the
still operable model or push simultaneously the left MODE and
the right arrow keys for about 1 - 2 seconds to stop the test. As
soon as the range test has finished, the model should react to the
controls movements. If this is not 100 % the case, do not use the
system and contact your Service at Graupner/SJ GmbH.
10. Perform a range test before each flight, and simulate all servo
movements that could occur during the flight. In order to guar-
antee a safe model operation, the range must always be at least
50 m on the ground.
!
CAUTION
• Never start a range test on the transmitter during normal
model operation! The model cannot be controlled any more
depending on the distance from the transmitter. Risk of injury!
• For physical reasons, the antenna integrated into the right han-
dle of the transmitter forms a small field strength in a straight
extension. In particular, if the model to be controlled is located
at a greater distance and / or below the pilot location, the
transmitter must be held so that the handle is approximately
at a right angle to the model.

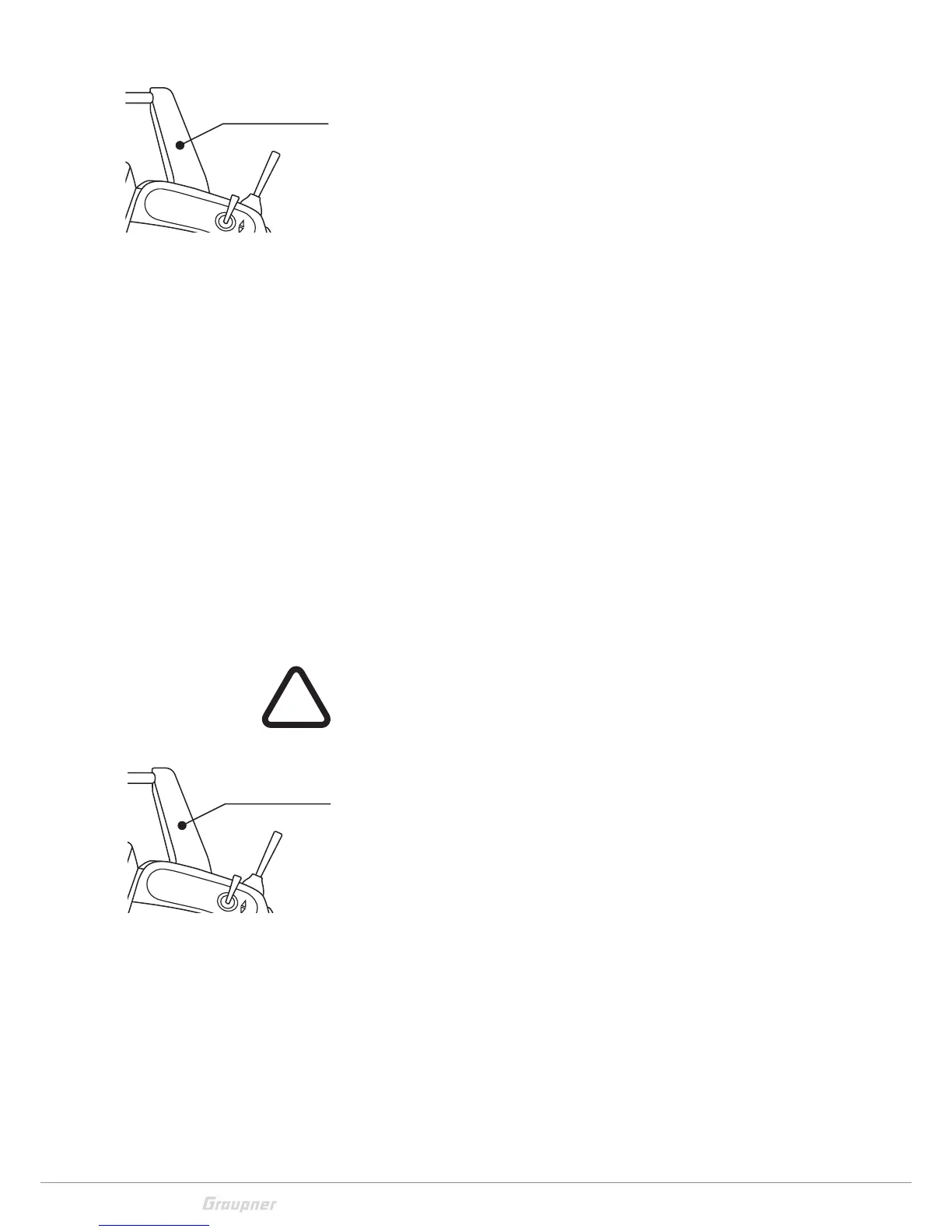

Antenna integated
in the handle
Antenna integated
in the handle

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
