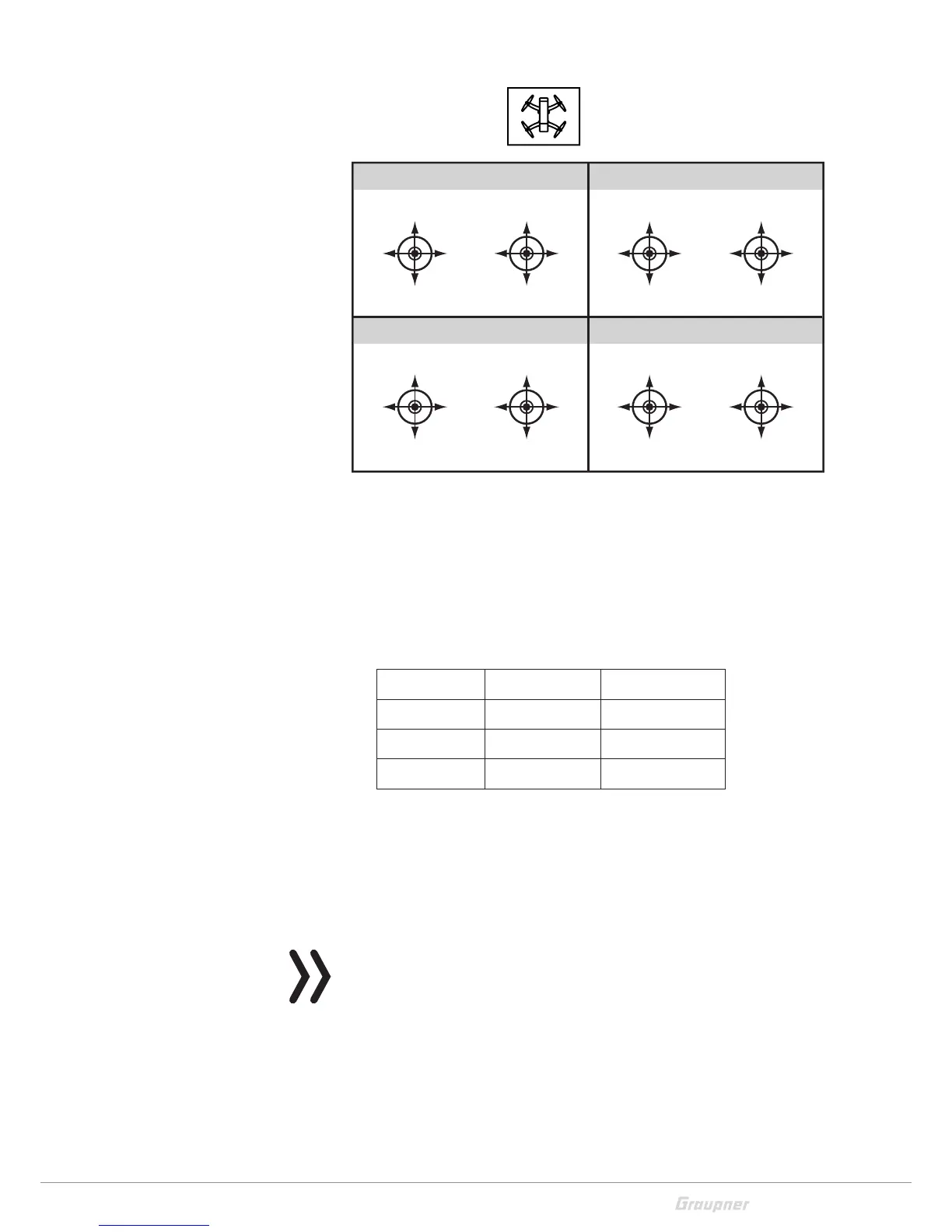

Control mode
MODE 2 (Throttle/Pitch left)
Nick
Nick
Yaw
Yaw
Throttle/Pitch
Throttle/Pitch
Roll
Roll
Throttle/Pitch
Throttle/Pitch
Yaw
Yaw
Nick
Nick
Roll
Roll
Nick
Nick
Roll
Roll
Throttle/Pitch
Throttle/Pitch
Yaw
Yaw
Throttle/Pitch
Throttle/Pitch
Roll
Roll
Nick
Nick
Yaw
Yaw
MODE 1 (Throttle/Pitch right)
MODE 3 (Throttle/Pitch right)
MODE 4 (Throttle/Pitch left)
Programmed steps control mode
1. Accede to the transmitter programming mode, as described
before.
2. Push the left MODE button so many times as necessary to follow
the rotary menu and reach up for the desired control mode set-
ting.
Pay attention to the number of the beeps.
3x beep red LED on >>MODE 1<<
4x beep red LED on >>MODE 2<<
5x beep red LED on >>MODE 3<<
6x beep red LED on >>MODE 4<<
3. As soon as you have reached the desired mode, push and hold
for 3 seconds the MODE button. The actual setting will be adopted
in the transmitter. After the button is released a melody will
sound to confirm and the beep will quit.
4. Switch off the transmitter and remove the programming connec-
tor.
Note
Never use the transmitter to control model while the programming
connector is plugged in it!

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
