4.1 CONTROLS AND FEATURES
SECTION 4 - GENERAL MAINTENANCE & ADJUSTMENTS
RANGE
PTO
0 0 0 0 0
0
HOU
RS
1/10
1. Differential Lock Control
2. Seat Adjustment Lever
3. Fuel Cap
4. Brake Lock Arm
5. Ignition and Key
6. Temperature Gauge
7. Battery Warning Light
8. Throttle Control Lever
9. Oil Pressure Warning Light
10. Light Switch (Optional)
11. Cruise Control Switch (optional)
12. Hourmeter
13. Park Brake Lock Lever
14. Range Select Lever
15. Brake Pedals
16. Direction Control Pedal
17. Hydraulic Lift Lever
18. PTO Control Lever
19. Seat Suspension Knob

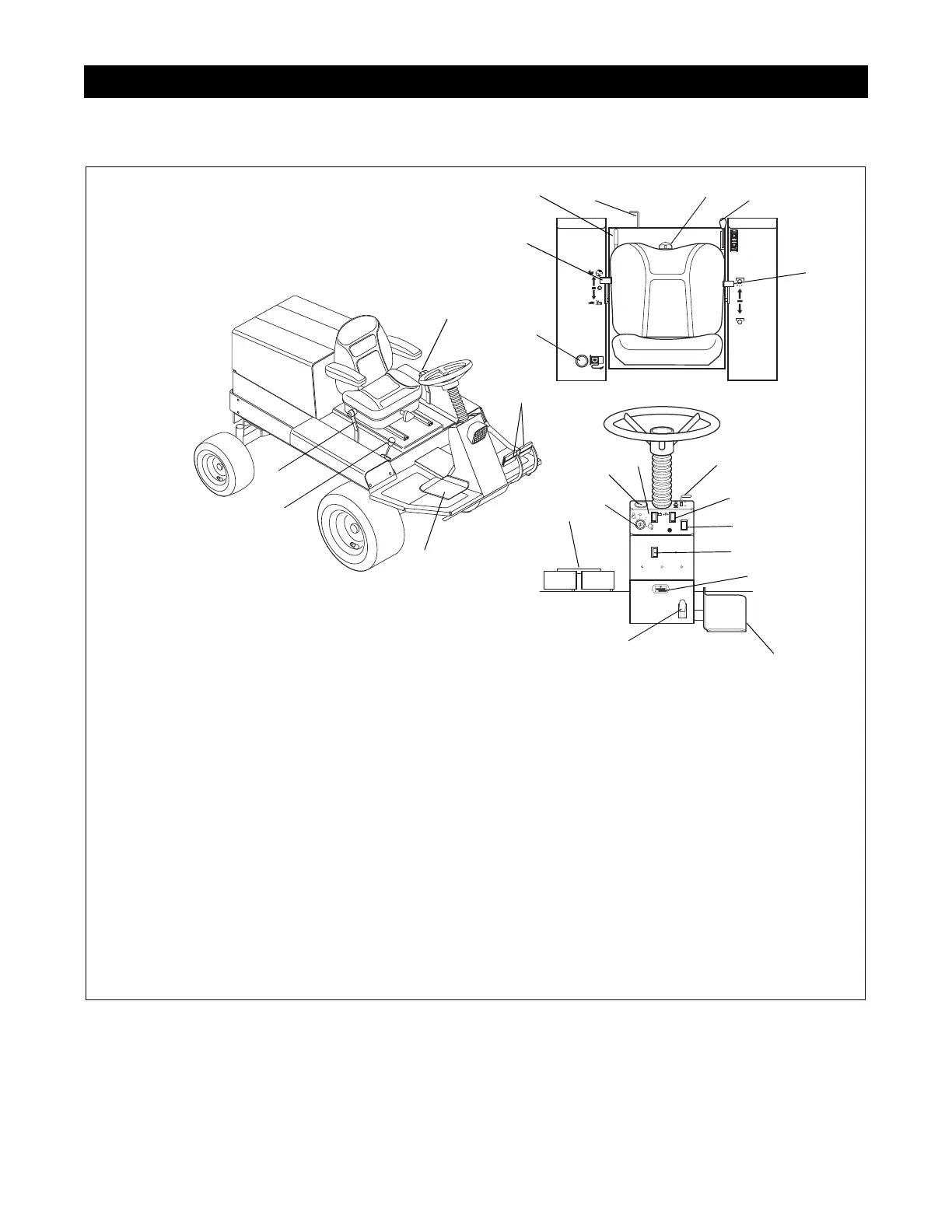

Figure 2
OF1961
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
16
18
17
14
