10.10 CONTINUITY DIAGRAMS

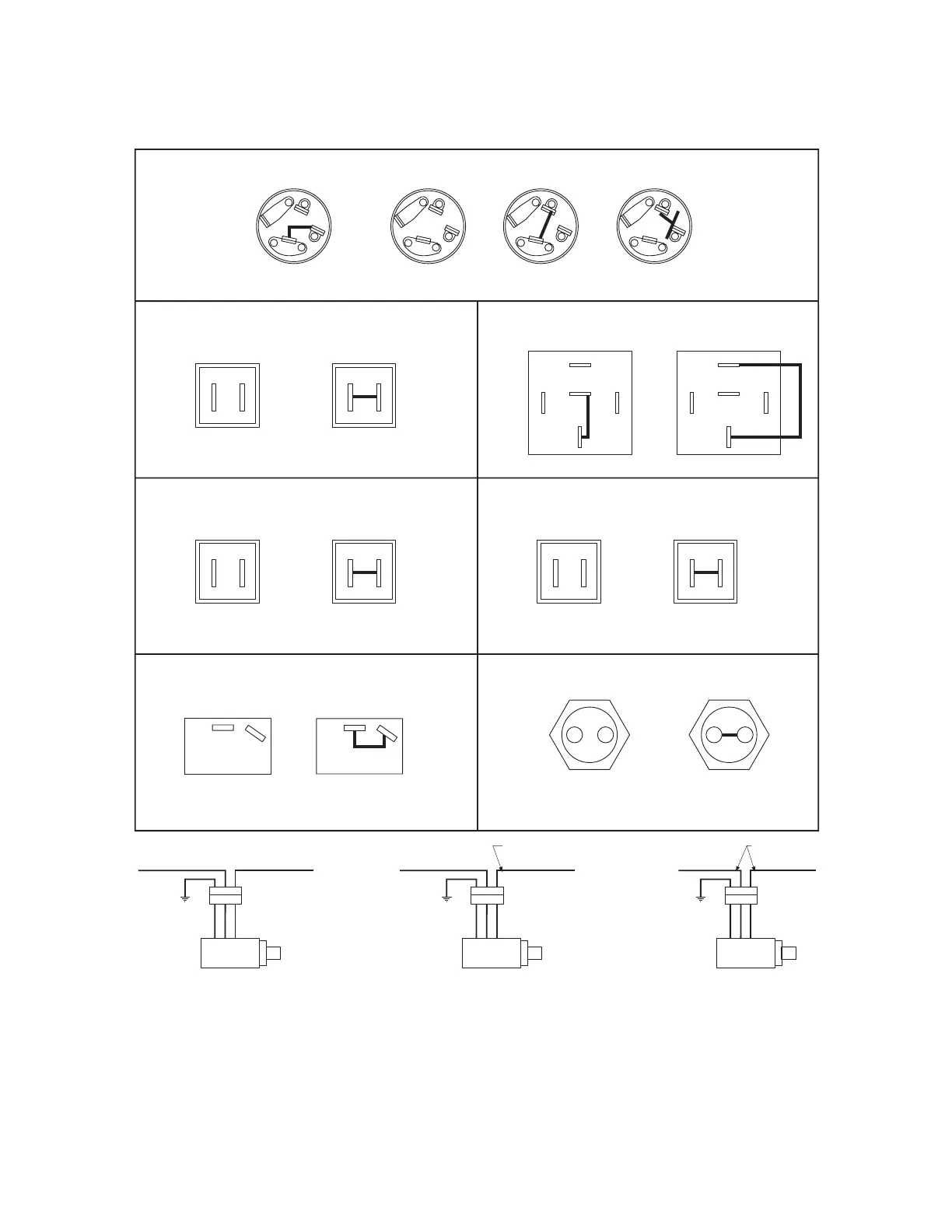

The diagrams below show the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE: All switches are viewed from the rear.
Key Switch
(09056700)
Seat Switch
(03490500)
Neutral Switch
(020916)
Relay
(03042800)
OFF RUN START
1
2
NEUTRAL
(button down)
1
2
RUN
(button up)
NOT ENERGIZED ENERGIZED
ST
B
I
50
ST
B
I
50
ST
B
I
50
GLOW PLUG
(COUNTERCLOCKWISE)
OFF ON
1
OPERATOR
OFF SEAT
2
1
OPERATOR
ON SEAT
2
Light Switch (Optional)
(03656800)
BLACK
WHITE
FUEL
SOLENIOD
123
RED
BLACK
GRAY
YELLOW /RED
KEY SWITCH
OFF POSITION
BLACK
WHITE
FUEL
SOLENIOD
123
RED
BLACK
GRAY
YELLOW /RED
KEY SWITCH
RUN POSITION
12 VOLTS
BLACK
WHITE
FUEL
SOLENIOD
123
RED
BLACK
GRAY
YELLOW /RED
KEY SWITCH
START POSITION
12 VOLTS
Hood Switch
(03657100)(306 Only)
1
OFF
2
1
ON
2
Seat Plate Switch
(02754100)(306 Only)
1
OFF
2
1
ON
2
ST
B
I
50
87
87A
86 85
30
87
87A
86 85
30
