Gravely Promaster 400 - Four Wheel Drive Assist; Four Wheel Assist Hydraulic Schematic

11 - 56

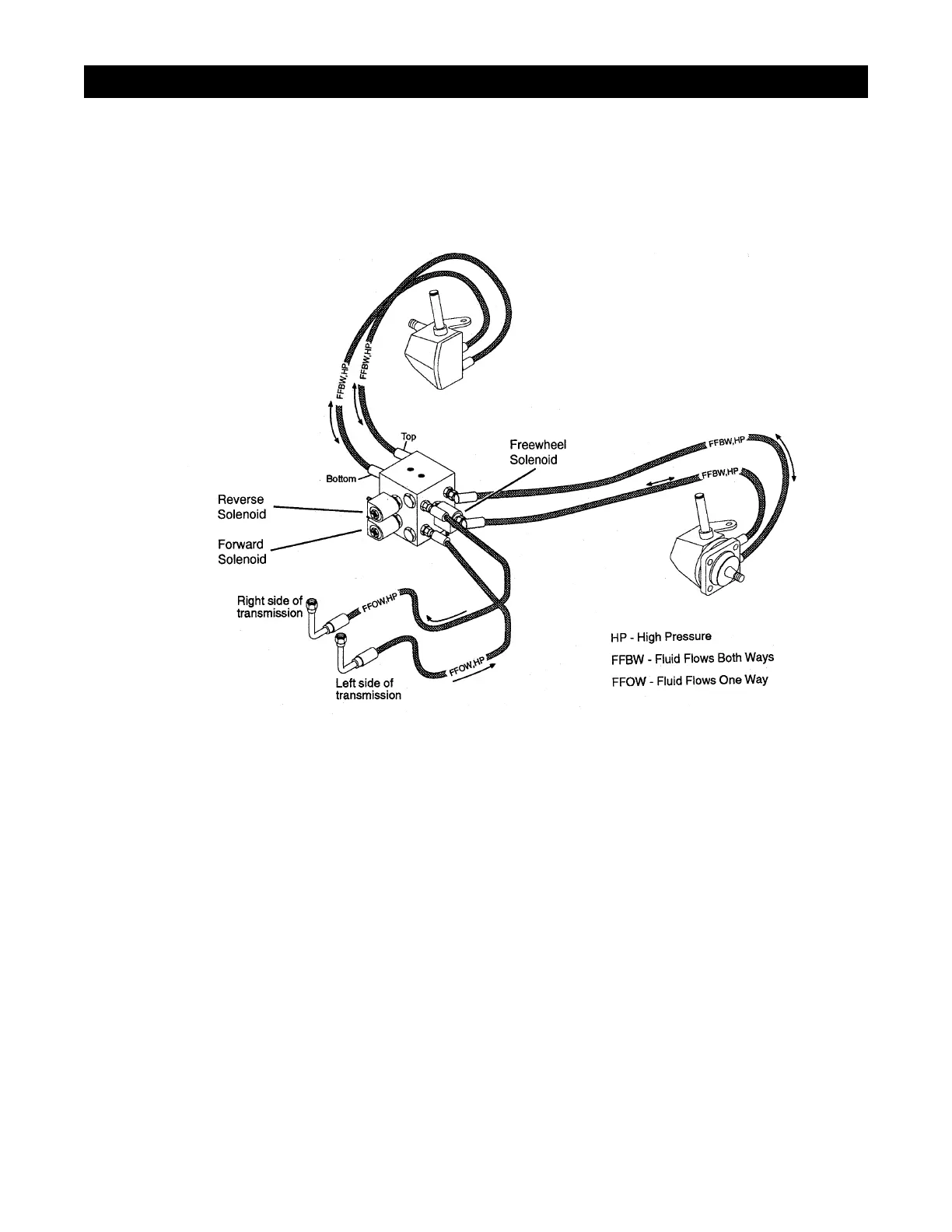

11.1 FOUR WHEEL ASSIST HYDRAULIC SCHEMATIC
NOTE: This hydraulic schematic is from a belly-mount
(frame brace) manifold. For an axle-mount manifold,
the manifold would be inverted and the single solenoid
would face to the right side.
SECTION 11 - FOUR WHEEL DRIVE ASSIST
