6 - 23
2. Flywheel drive shaft installation:
a. Connect the flywheel adapter plate by installing
the eight bolts with loctite applied.
b. Apply a film of grease to the flywheel adapter
plate shaft splines and install U-joint, attach U-joint
to transmission with the two mounting bolts.
3. PTO drive shaft removal:
a. To remove PTO drive shaft, remove the four
bolts connecting the drive shaft to the transmission
and PTO gearbox.
4. PTO drive shaft installation:
a. Apply a film of grease to the PTO drive shaft
splines and install drive shaft with the four
mounting bolts.

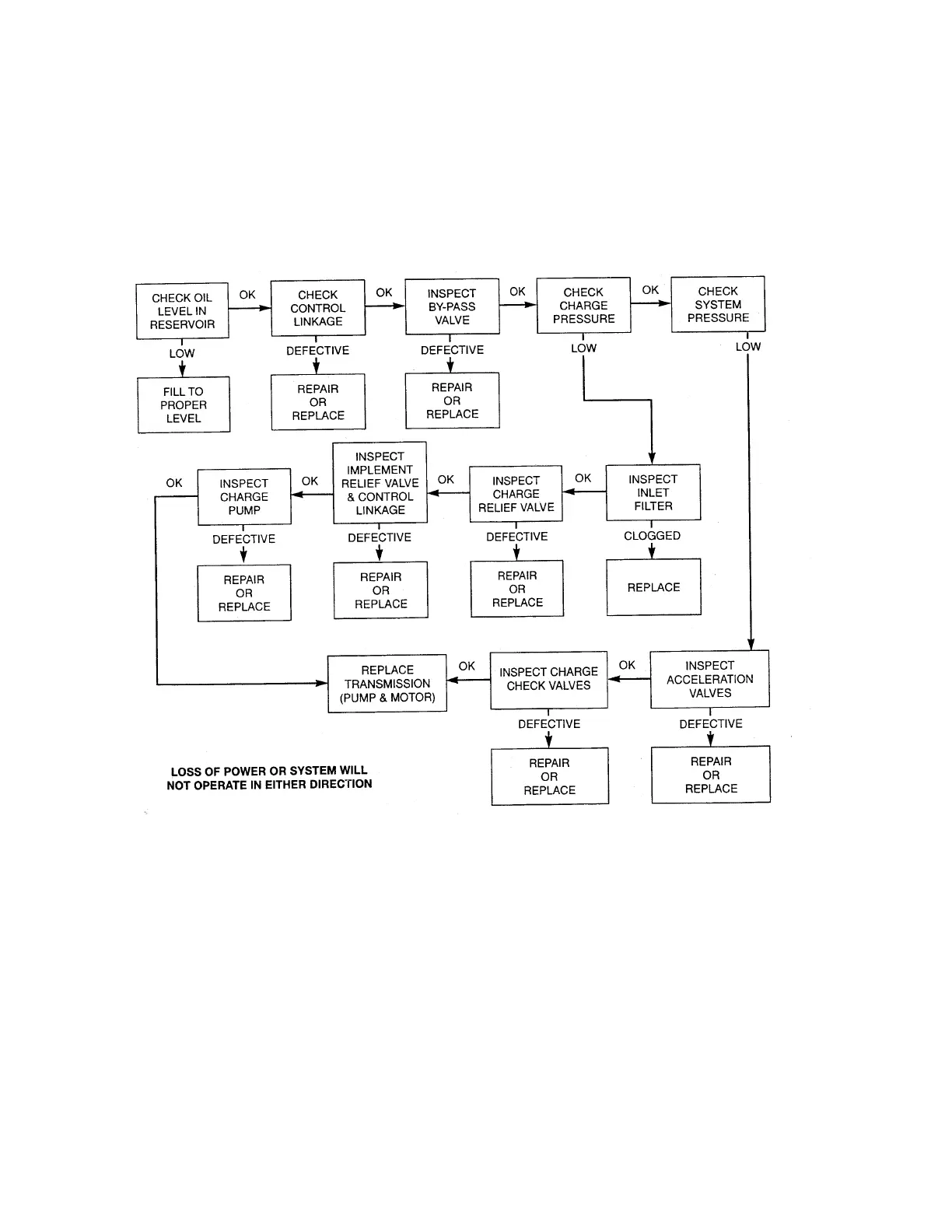

6.6 TRANSMISSION TROUBLESHOOTING
